Allen-Bradley E300 User Manual

30 Rockwell Automation Publication 193-UM015E-EN-P - October 2015
Chapter 2 Installation and Wiring
Communication Module to
Control Module Assembly
You can connect any E300 relay Communication Module to any E300 relay
Control Module. Figure 7
shows the steps required to make this connection.

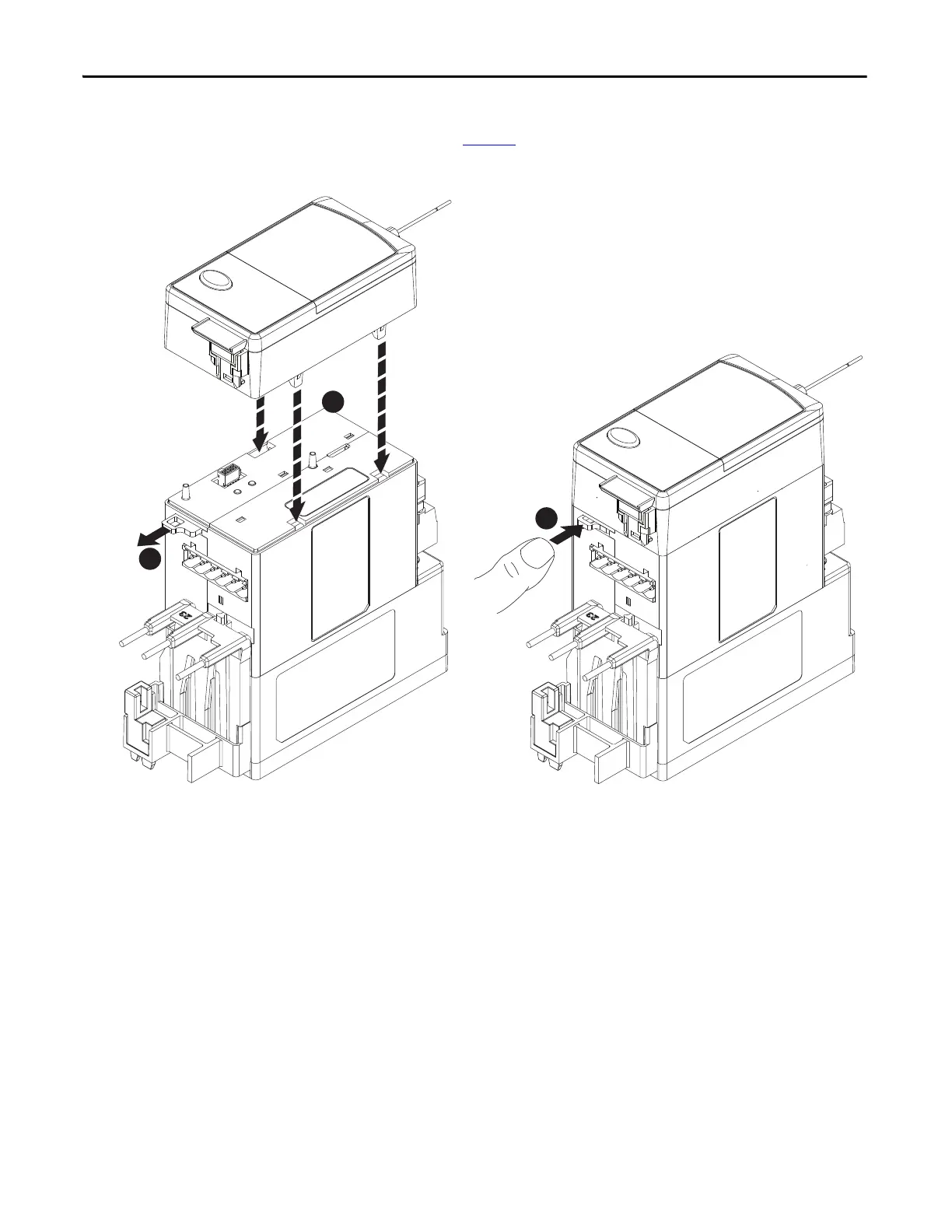

Figure 7 - Communication Module to Control Module Assembly
1
3
2

Allen-Bradley E300 Specifications

General

Type	Electronic Overload Relay
Mounting	DIN Rail or Panel Mount
Protection Class	IP20
Voltage Range	24…690 V AC/DC
Communication Options	EtherNet/IP, DeviceNet
Protection	Overload, phase loss, ground fault
Operating Temperature	-20°C to 60°C
