Allen-Bradley E300 User Manual

Rockwell Automation Publication 193-UM015E-EN-P - October 2015 279
Operating Modes Chapter 5

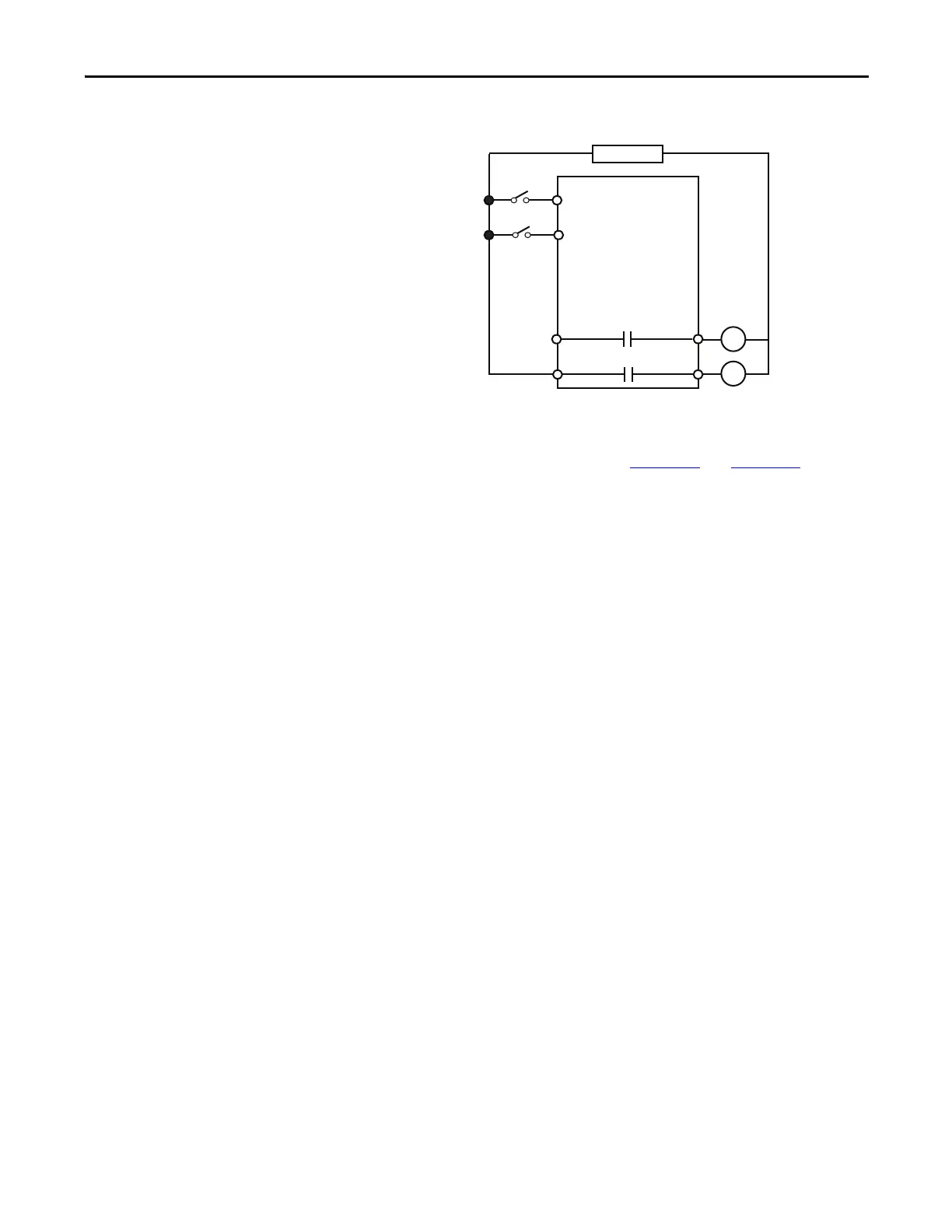

Figure 181 - Two-speed Starter (Local I/O) – Two-wire Control Wiring Diagram
DeviceLogix Program
The DeviceLogix program that is shown in Figure 182 and Figure 183 is
automatically loaded and enabled in the E300 on power-up or when Operating
Mode (Parameter 195) is set to a value of 46.
R13 R14
Relay 0
Run Slow
E300
Control Power
R03 R04
Relay 0
Run Fast
IN 1
Run Slow/Stop
IN 0
Run Fast/Stop

Allen-Bradley E300 Specifications

General

Type	Electronic Overload Relay
Mounting	DIN Rail or Panel Mount
Protection Class	IP20
Voltage Range	24…690 V AC/DC
Communication Options	EtherNet/IP, DeviceNet
Protection	Overload, phase loss, ground fault
Operating Temperature	-20°C to 60°C
