Rockwell Automation Publication 193-UM015E-EN-P - October 2015 167
Operating Modes Chapter 5
Timing Diagram

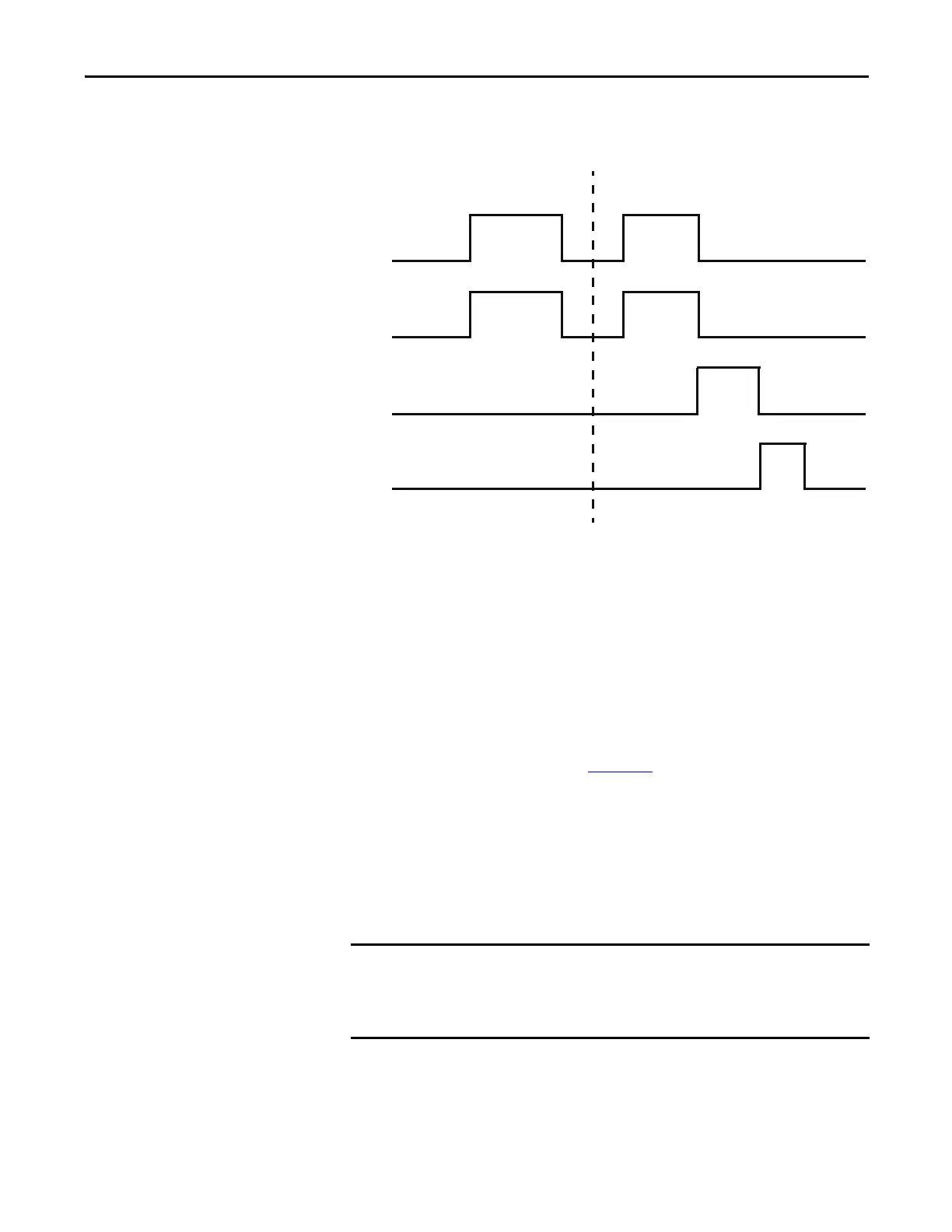

Figure 72 - Non-reversing Starter (Network) Timing Diagram
Non-reversing Starter (Network) with Feedback
The E300 relay’s Operating Mode Non-Reversing Starter (Network) with
Feedback (Parameter 195 = 4) uses the network tag LogicDefinedPt00Data in
Output Assembly 144 to control Relay 0, which controls the contactor coil.
LogicDefinedPt00Data is a maintained value, so the non-reversing starter
remains energized when LogicDefinedPt00Data has a value of 1. You can
program the appropriate state of the starter when communication is lost using the
Network Communication Fault and Network Communication Idle parameters
(Parameters 569 – 573) described in Chapter 4
.
The auxiliary contact from the contactor of the non-reversing starter is wired into
Input 0. If a feedback signal is not received before the time identified in Feedback
Timeout (Parameter 213), then the E300 issues a trip or warning event.
The reset button of the E300 Operator Station is enabled for this operating
mode.
Rules
1. Available for Control Module firmware v5.000 and higher.
Trip Event
Relay 0
Trip Status
Trip Reset
Run/Stop
The Non-reversing Starter (Network) operating mode uses the value in
network tag LogicDefinedPt00Data to control the starter. When
communication is restored between an automation controller and the E300,
the starter energizes if the value in LogicDefinedPt00Data is set to 1.
