Chapter 5 Operating Modes

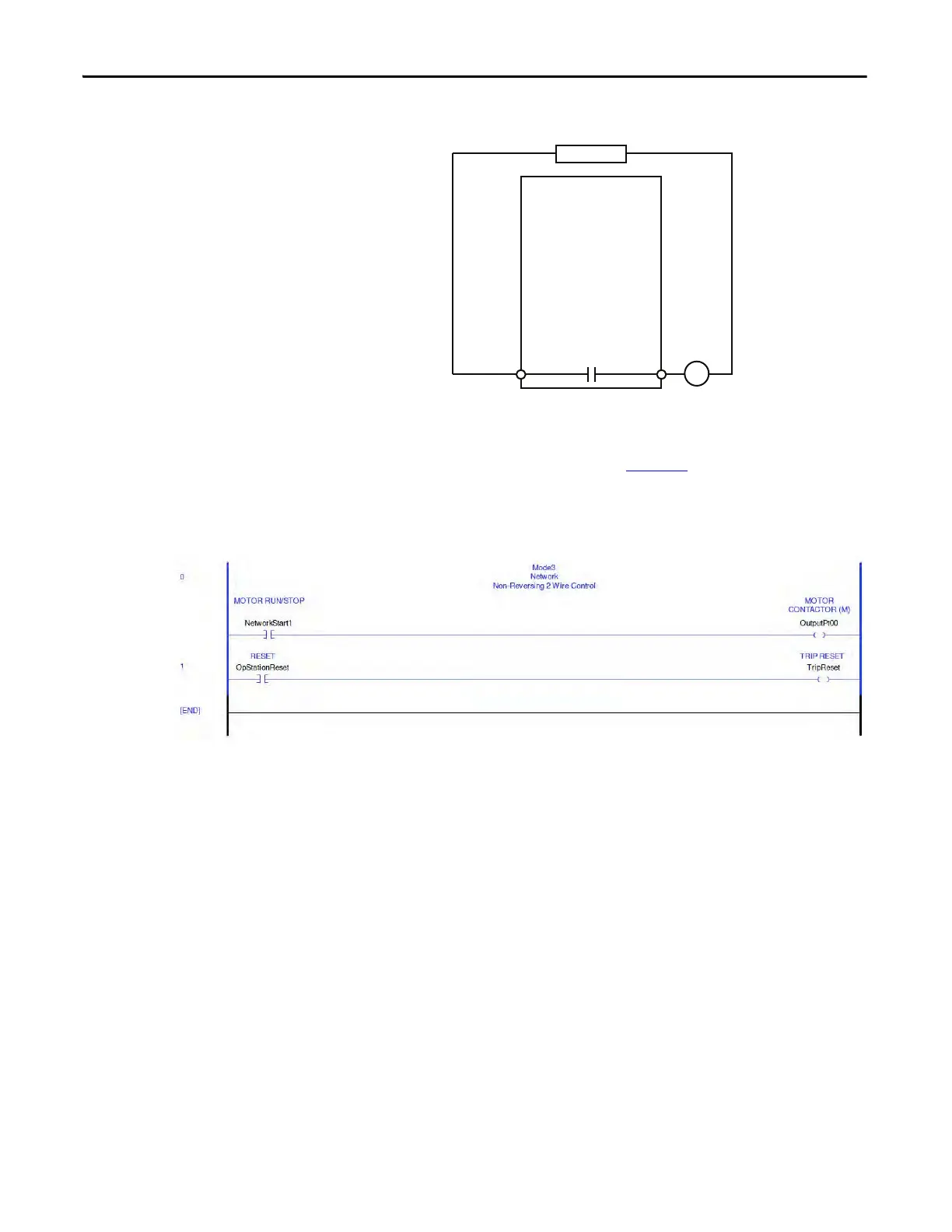

Figure 70 - Non-reversing Starter (Network) Wiring Diagram
DeviceLogix Program
The DeviceLogix program that is shown in Figure 71 is automatically loaded and
enabled in the E300 on power-up or when Operating Mode (Parameter 195) is
set to a value of 3.
Figure 71 - Non-reversing Starter (Network) DeviceLogix Program
R03 R04
Relay 0
Run
E300
Control Power
To Next Page
