Rockwell Automation Publication 193-UM015E-EN-P - October 2015 21
Product Overview Chapter 1
Module Description
The E300 relay is comprised of three modules. All three modules are required to
make a functional overload relay.
• Sensing Module
• Control Module
• Communication Module
Sensing Module

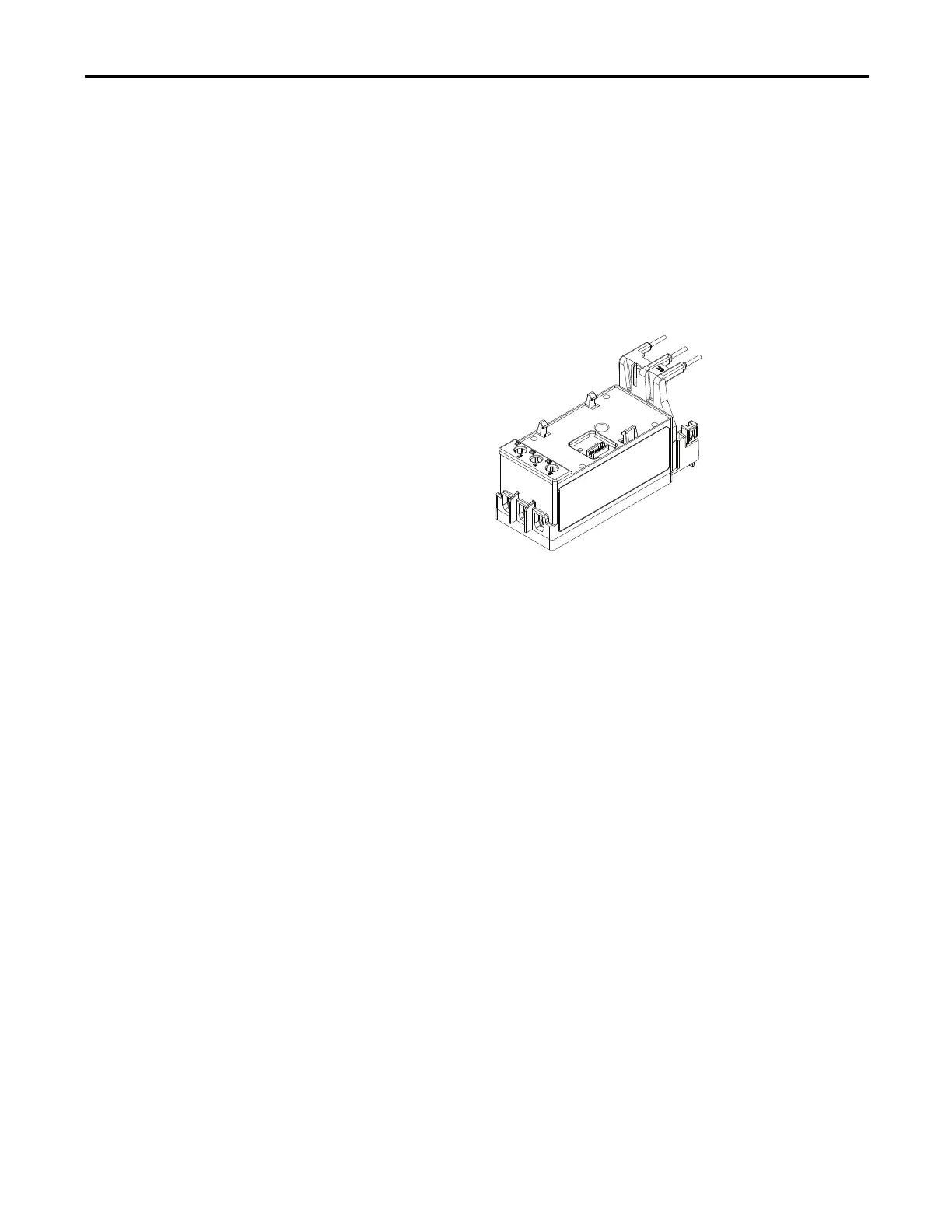

Figure 1 - Sensing Module
The sensing module electronically samples data about the current, voltage, power,
and energy that are consumed by the electric motor internal to the module. You
can choose from one of three varieties of the sensing modules depending on the
motor diagnostic information that is needed for the motor protection
application:
• Current Sensing
• Current and Ground Fault Current Sensing
• Current, Ground Fault Current, Voltage, and Power Sensing
The
current ranges for each of three varieties of sensing module are as follows:
• 0.5…30 A
• 6…60 A
• 10…100 A
• 20…200 A
You can choose how the sensing module mechanically mounts inside the
ele
ctr
ical enclosure. The following mounting mechanisms are available for the
sensing module.
• Mount to the load side of an Allen-Bradley Bulletin 100 IEC Contactor
• Mount to the load side of an Allen-Bradley Bulletin 500 NEMA
Contactor
• D
IN Rail / Panel Mount with power terminals
• Replacement DIN Rail / Panel Mount with power terminals for an
A
ll
en-Bradley E3 Plus panel mount adapter
• DIN Rail / Panel Mount with pass-thru power conductors
