Allen-Bradley E300 User Manual

162 Rockwell Automation Publication 193-UM015E-EN-P - October 2015
Chapter 5 Operating Modes

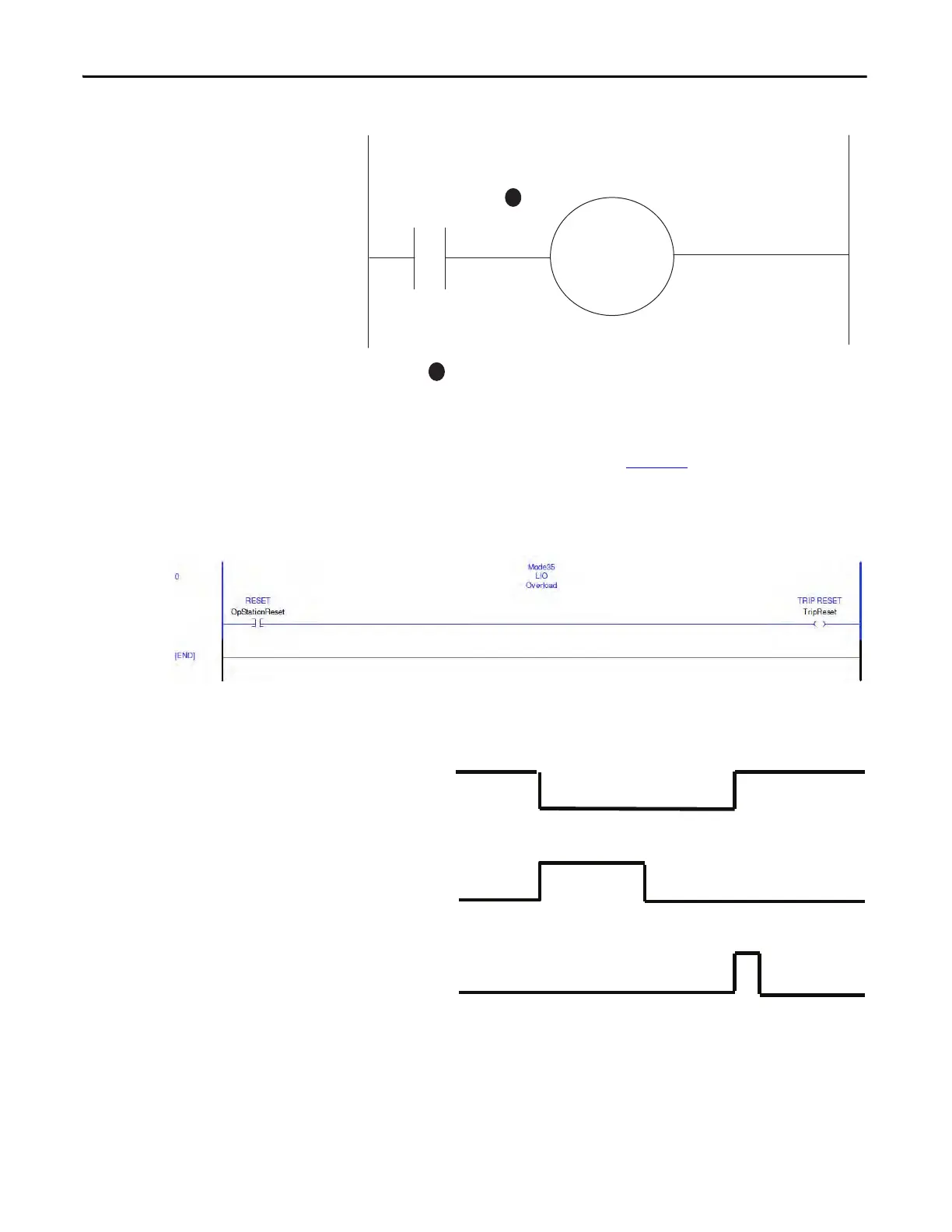

Figure 64 - Control Relay Wiring Diagram
DeviceLogix Program
The DeviceLogix program that is shown in Figure 65 is automatically loaded and
enabled in the E300 on power-up or when Operating Mode (Parameter 195) is
set to a value of 35.
Figure 65 - Overload (Local I/O) DeviceLogix Program
Timing Diagram
Figure 66 - Overload (Local I/O) Timing Diagram
Overload (Custom)
The E300 relay’s Operating Mode Overload (Custom) (Parameter 195 = 49)
operates as a traditional overload relay with one output relay that is assigned as a
Relay 0
Configured as a
Control Relay
R03 R04
A1
A2
M
1
1
Contact shown with supply voltage applied.
Trip Relay
Trip Reset
Device
Status0.Trip
Present
