Rockwell Automation Publication 193-UM015E-EN-P - October 2015 179
Operating Modes Chapter 5
5. Communication Fault & Idle Override (Parameter 346) must be enabled.
6. Network Fault Override (Parameter 347) must be enabled.
Wiring Diagram
The E300 relay’s Output Relay 0 is wired as a control relay in which the relay is
controlled by the state if Input 1 and opens when a trip event occurs. Figure 85
is
a wiring diagram of a non-reversing starter with Output Relay 0 configured as a
control relay.

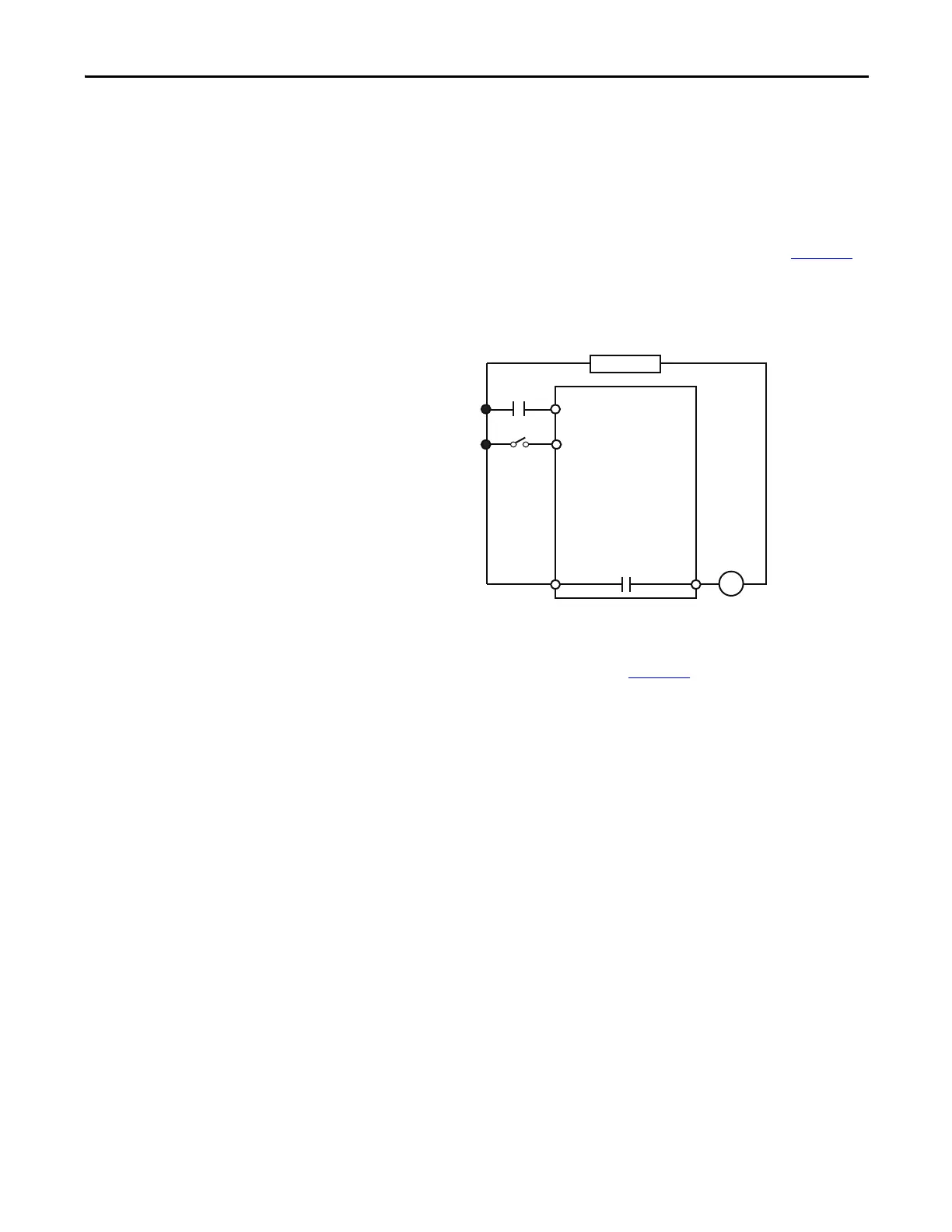

Figure 85 - Non-reversing Starter (Local I/O) – Two-wire Control with Feedback Wiring Diagram
DeviceLogix Program
The DeviceLogix program that is shown in Figure 86 is automatically loaded and
enabled in the E300 on power-up or when Operating Mode (Parameter 195) is
set to a value of 37.
R03 R04
Relay 0
Run
E300
IN 0
IN 1
Run/Stop
Control Power
Run Aux
To Next Page
