Allen-Bradley E300 User Manual

Rockwell Automation Publication 193-UM015E-EN-P - October 2015 213
Operating Modes Chapter 5

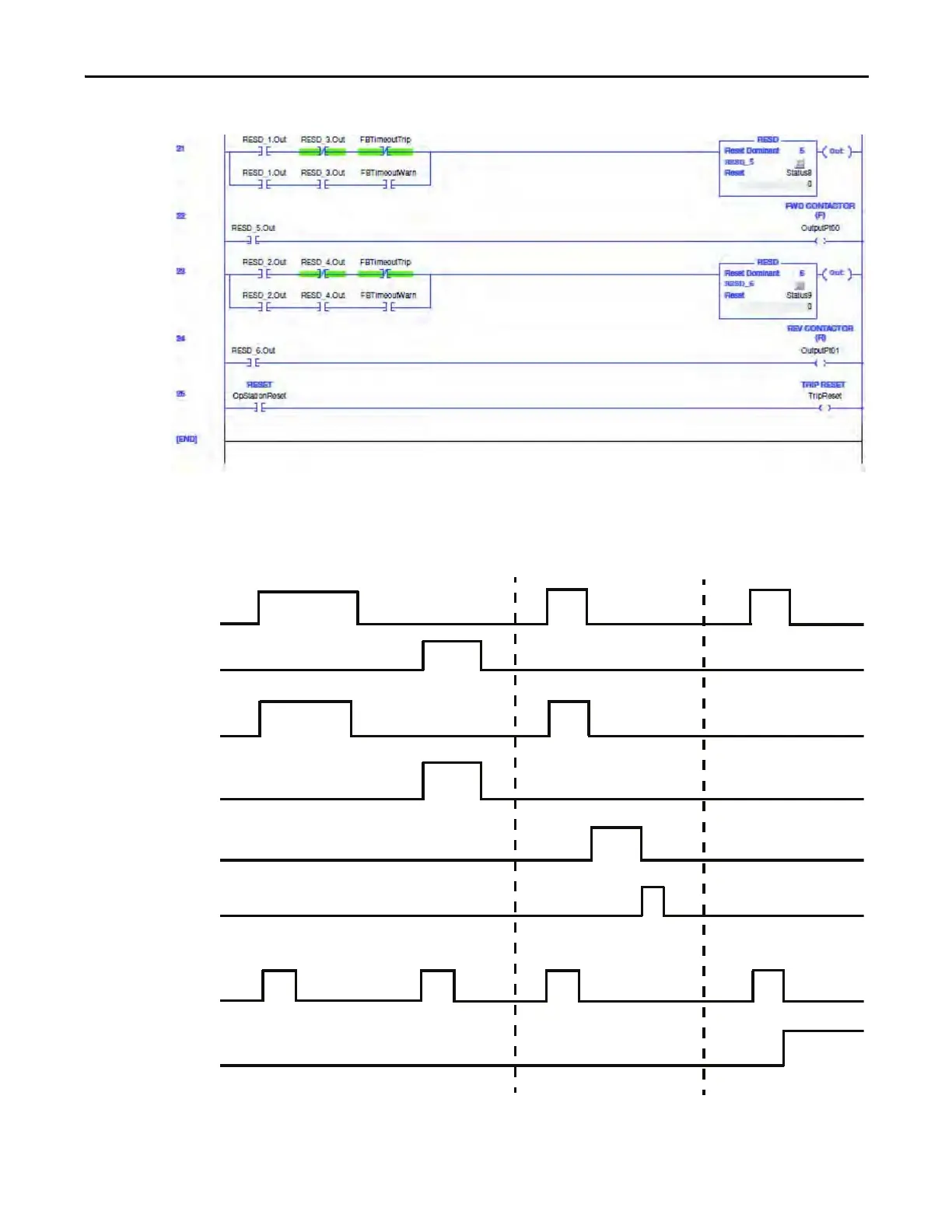

Figure 118 - Reversing Starter (Network) with Feedback DeviceLogix Program, Part C
Timing Diagram
Figure 119 - Reversing Starter (Network) with Feedback Timing Diagram
Trip Event Feedback Timeout
REV (Relay 1)
FWD (Relay 0)
Timer
Feedback
Timeout Trip
Trip Status
Trip Reset
FWD Feedback
(IN0)
REV Feedback
(IN1)

Allen-Bradley E300 Specifications

General

Type	Electronic Overload Relay
Mounting	DIN Rail or Panel Mount
Protection Class	IP20
Voltage Range	24…690 V AC/DC
Communication Options	EtherNet/IP, DeviceNet
Protection	Overload, phase loss, ground fault
Operating Temperature	-20°C to 60°C
