Allen-Bradley E300 User Manual

Rockwell Automation Publication 193-UM015E-EN-P - October 2015 247
Operating Modes Chapter 5

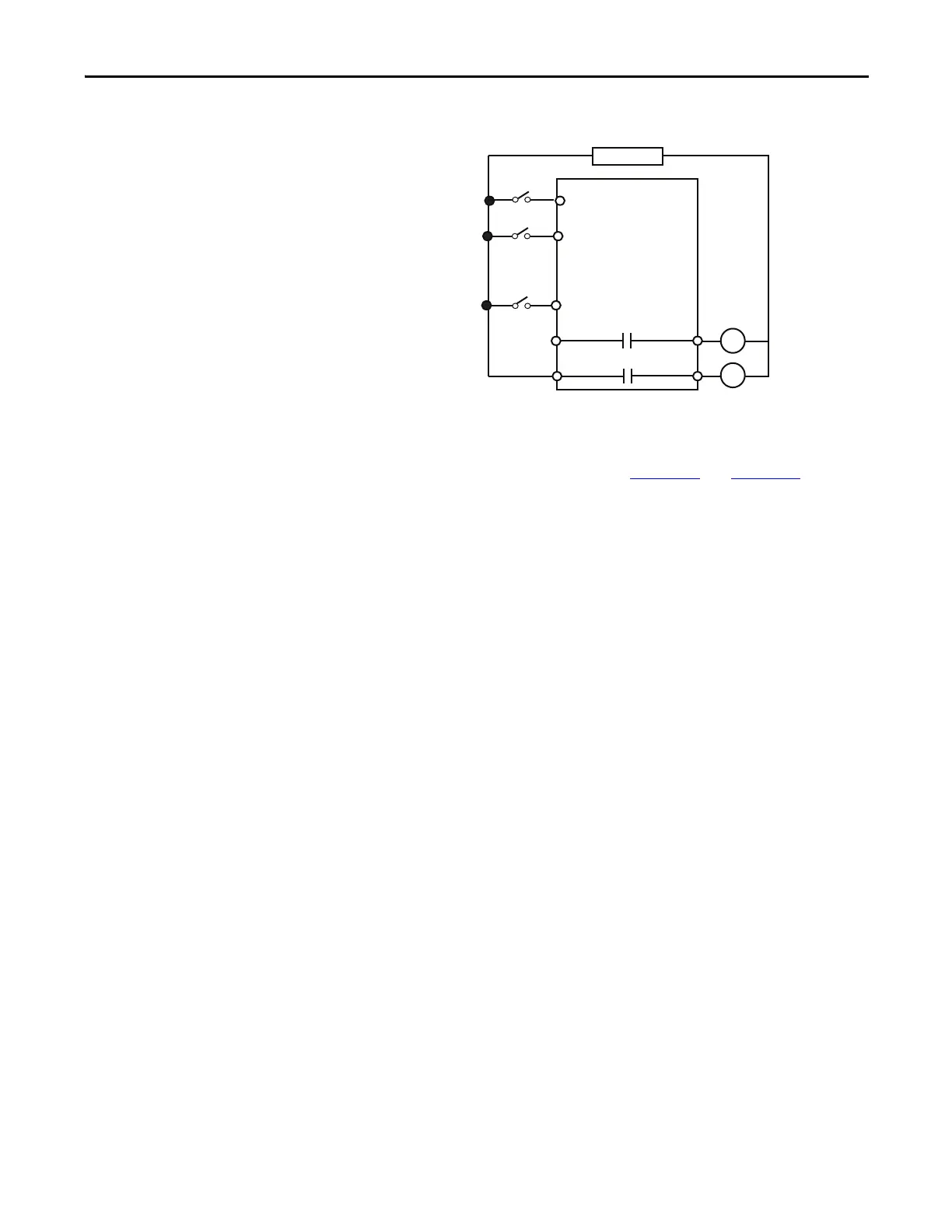

Figure 151 - Reversing Starter (Network & Local I/O) – Two-wire Control Wiring Diagram
DeviceLogix Program
The DeviceLogix program that is shown in Figure 152 and Figure 153 is
automatically loaded and enabled in the E300 on power-up or when Operating
Mode (Parameter 195) is set to a value of 20.
R13 R14
Relay 0
Run Reverse
E300
IN 1
Run Reverse/Stop
Control Power
IN 0
R03 R04
Relay 0
Run Forward
Run Forward/Stop
IN 3
Local Inputs/
Controller

Allen-Bradley E300 Specifications

General

Type	Electronic Overload Relay
Mounting	DIN Rail or Panel Mount
Protection Class	IP20
Voltage Range	24…690 V AC/DC
Communication Options	EtherNet/IP, DeviceNet
Protection	Overload, phase loss, ground fault
Operating Temperature	-20°C to 60°C
