Allen-Bradley E300 User Manual

252 Rockwell Automation Publication 193-UM015E-EN-P - October 2015
Chapter 5 Operating Modes

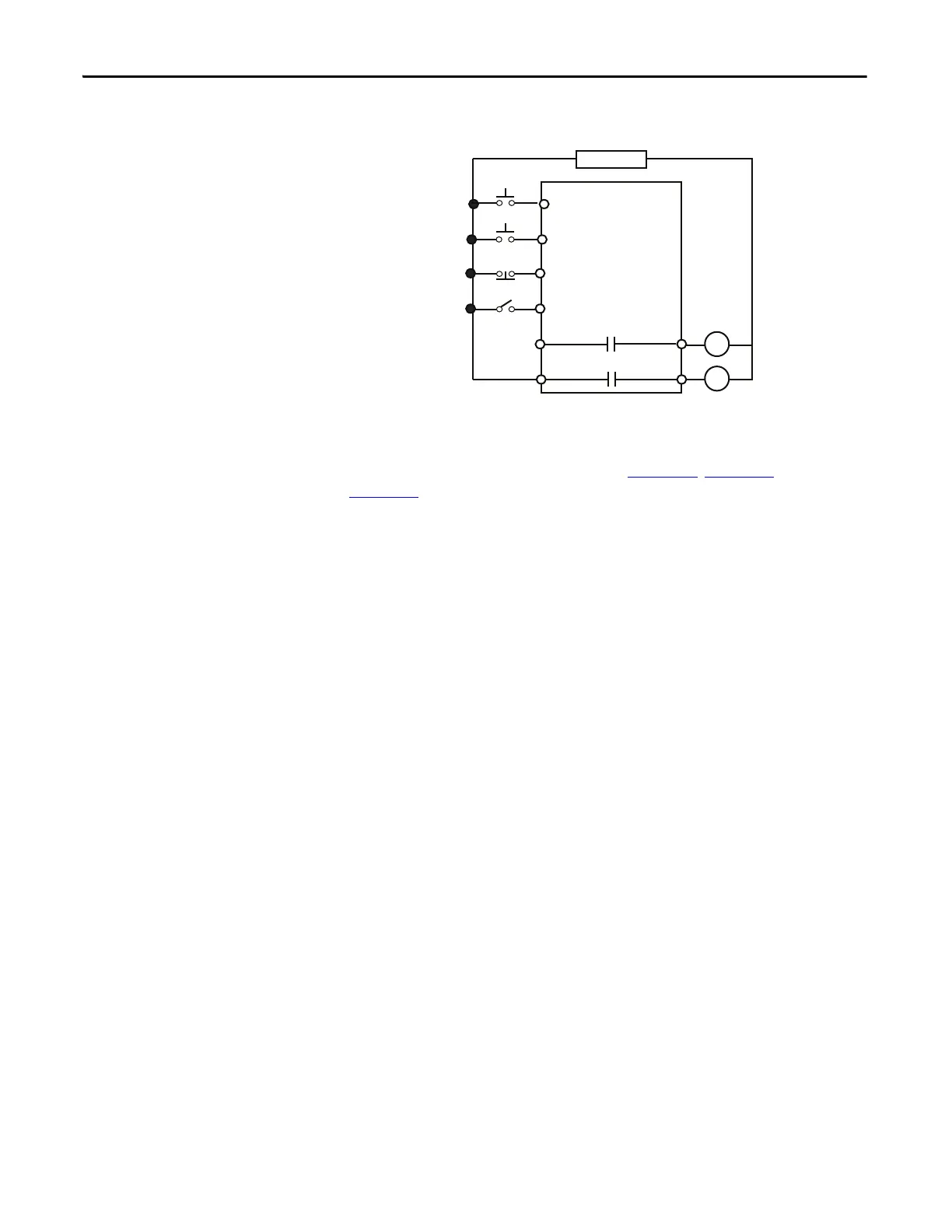

Figure 155 - Reversing Starter (Network & Local I/O) – Three-wire Control Wiring Diagram
DeviceLogix Program
The DeviceLogix program that is shown in Figure 156, Figure 157, and
Figure 158
is automatically loaded and enabled in the E300 on power-up or when
Operating Mode (Parameter 195) is set to a value of 21.
R13 R14
Relay 0
Run Reverse
E300
IN 1
Stop
Run Reverse
Control Power
IN 2
IN 0
R03 R04
Relay 0
Run Forward
Run Forward
IN 3
Local Inputs/
Controller

Allen-Bradley E300 Specifications

General

Type	Electronic Overload Relay
Mounting	DIN Rail or Panel Mount
Protection Class	IP20
Voltage Range	24…690 V AC/DC
Communication Options	EtherNet/IP, DeviceNet
Protection	Overload, phase loss, ground fault
Operating Temperature	-20°C to 60°C
