Allen-Bradley E300 User Manual

Rockwell Automation Publication 193-UM015E-EN-P - October 2015 273
Operating Modes Chapter 5

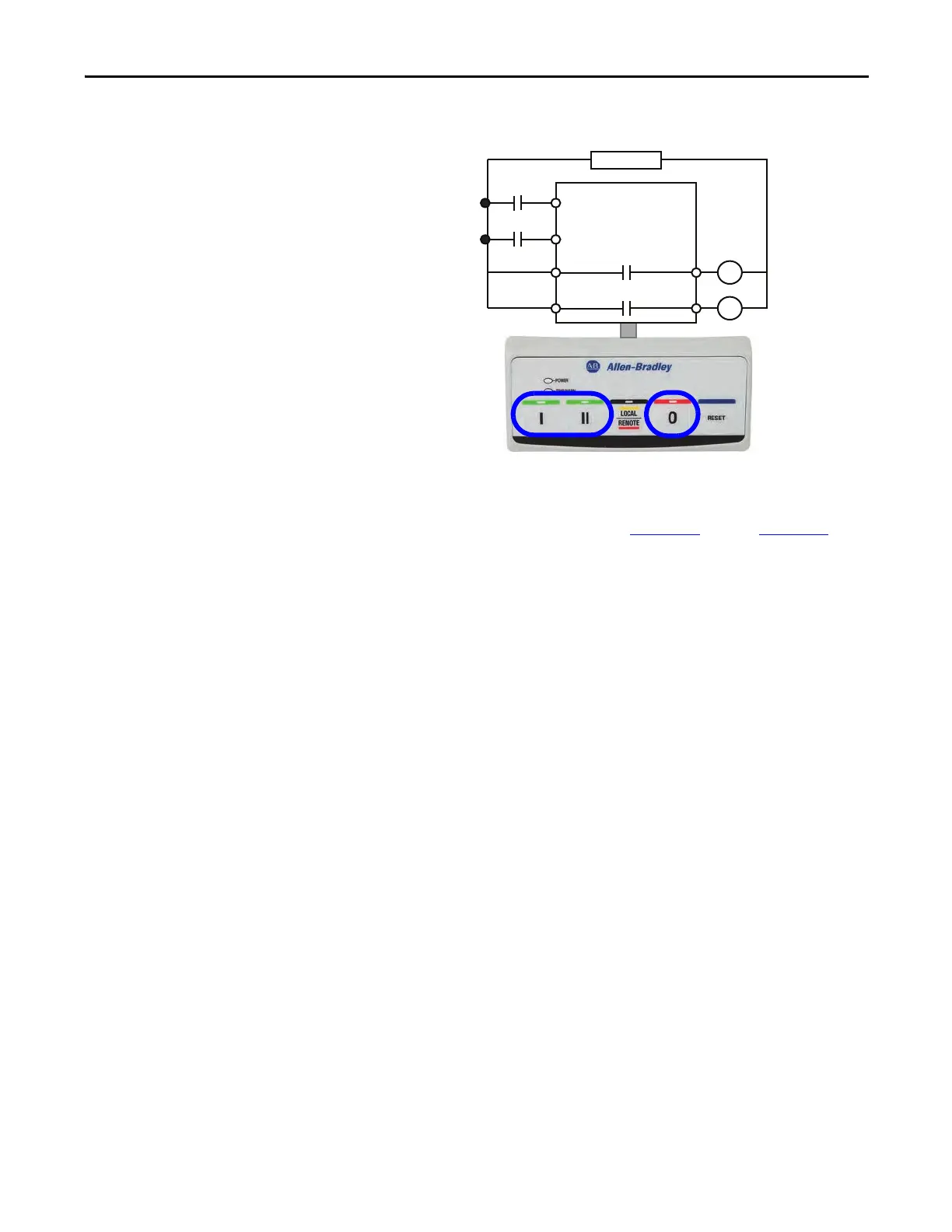

Figure 175 - Two-speed Starter (Operator Station) with Feedback Wiring Diagram
DeviceLogix Program
The DeviceLogix program that is shown in Figure 176 through Figure 179 is
automatically loaded and enabled in the E300 on power-up or when Operating
Mode (Parameter 195) is set to a value of 34.
R13 R14
Relay 1
Run Slow
E300
Control Power
I- Run Forward
0- Stop
II- Run Reverse
R03 R04
Relay 0
Run Fast
Run Fast Aux
IN 0
Run Slow Aux
IN 1

Allen-Bradley E300 Specifications

General

Type	Electronic Overload Relay
Mounting	DIN Rail or Panel Mount
Protection Class	IP20
Voltage Range	24…690 V AC/DC
Communication Options	EtherNet/IP, DeviceNet
Protection	Overload, phase loss, ground fault
Operating Temperature	-20°C to 60°C
