Allen-Bradley E300 User Manual

286 Rockwell Automation Publication 193-UM015E-EN-P - October 2015
Chapter 5 Operating Modes

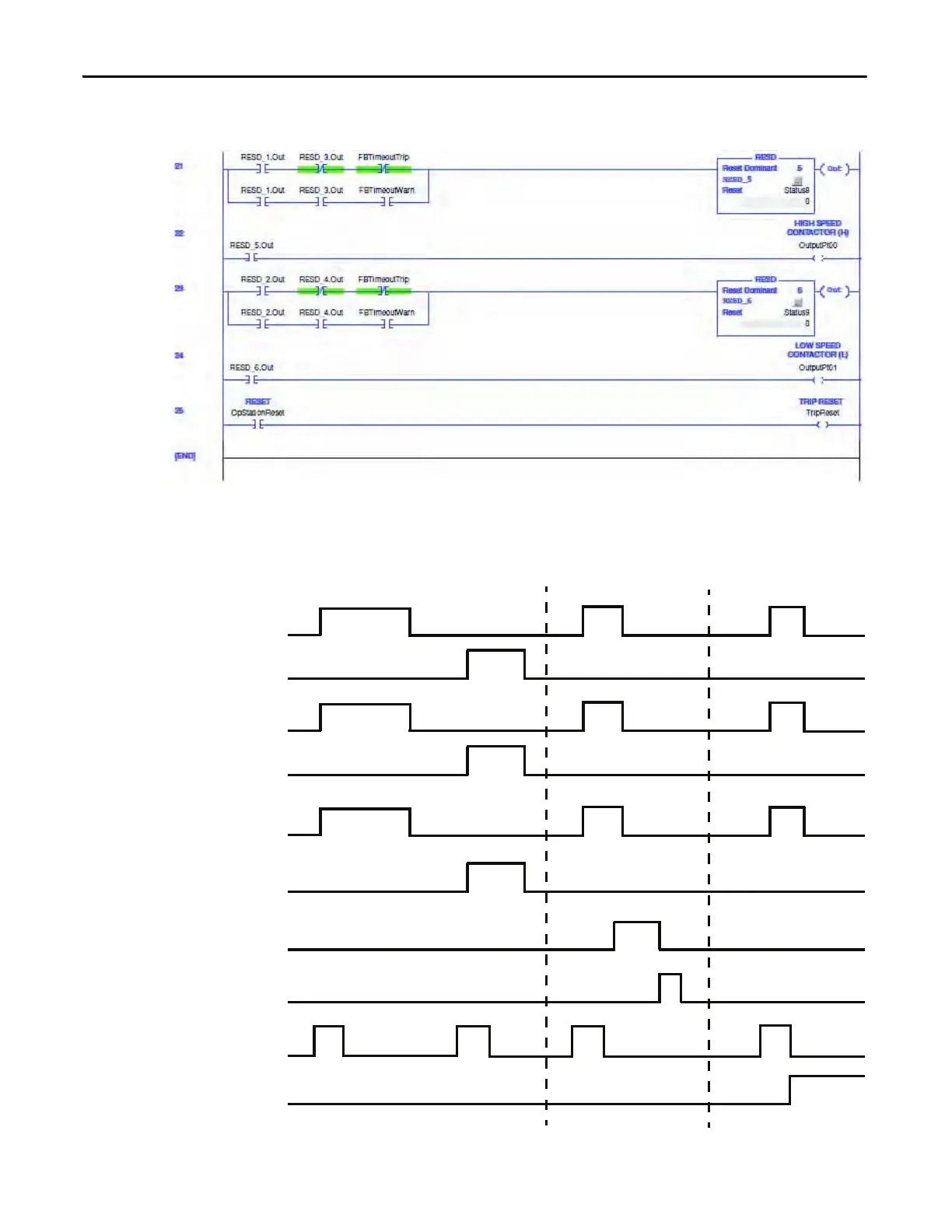

Figure 188 - Two-speed Starter (Local I/O) – Two-wire Control with Feedback DeviceLogix
Program, Part C
Timing Diagram
Figure 189 - Two-speed Starter (Local I/O) – Two-wire Control with Feedback Timing Diagram
Trip Event Feedback Timeout
Slow (Relay 1)
Fast (Relay 0)
Timer
Feedback
Timeout Trip
Trip Status
Trip Reset
Fast Feedback
Slow Feedback
Run Slow
Run Fast

Allen-Bradley E300 Specifications

General

Type	Electronic Overload Relay
Mounting	DIN Rail or Panel Mount
Protection Class	IP20
Voltage Range	24…690 V AC/DC
Communication Options	EtherNet/IP, DeviceNet
Protection	Overload, phase loss, ground fault
Operating Temperature	-20°C to 60°C
