Chapter 10 EtherNet/IP Communication

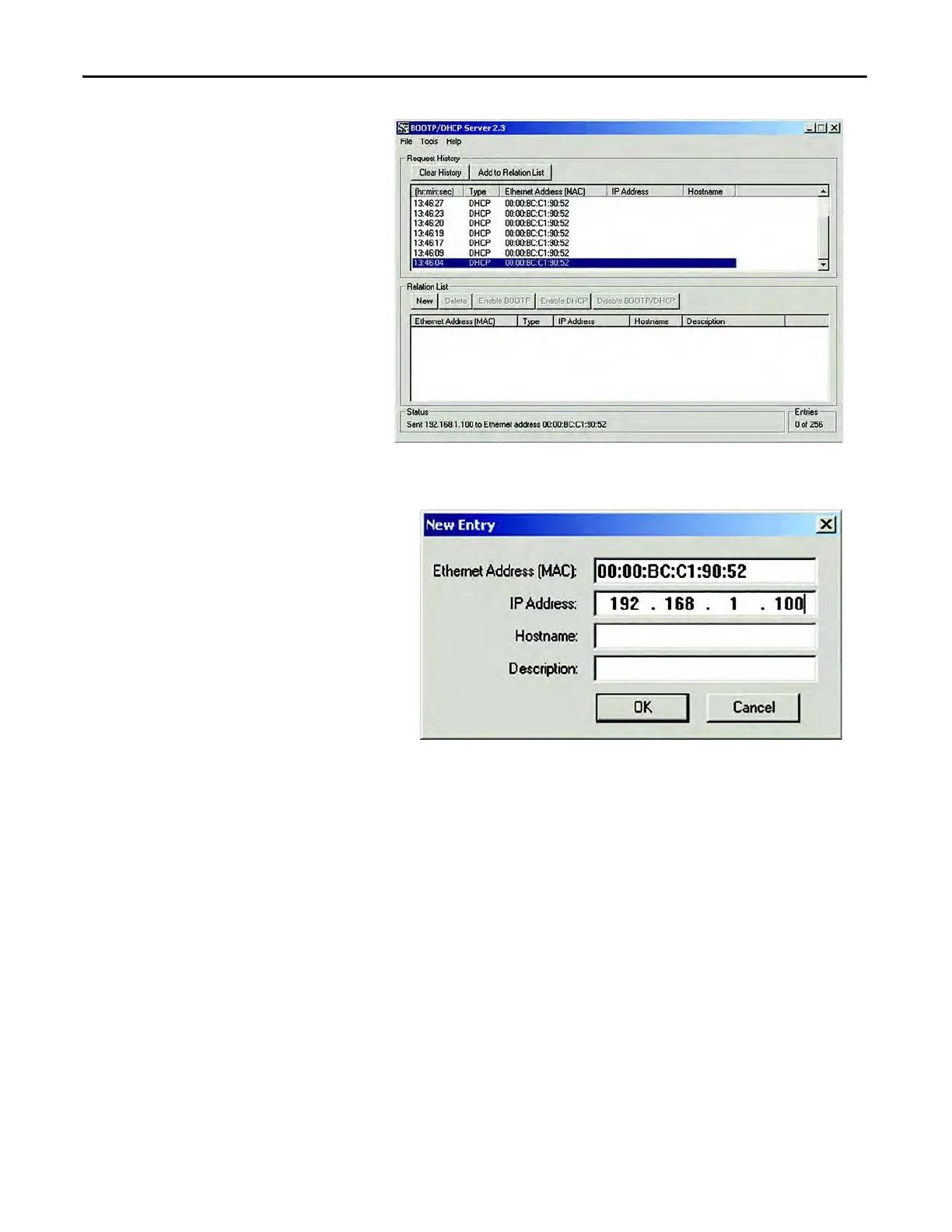

The New Entry window appears with the module's Ethernet Address (MAC).
6. Type the IP address, host name, and a module description.
7. Click OK.
8. Cycle power to the E300 relay EtherNet/IP Communication Module.
9. To permanently assign this configuration to the module: Select the
module i
n the Relation List panel and click Disable BOOTP/DHCP.
When module power is cycled, it uses the assigned configuration and does not
issue a DHCP request.
If you do not click Disable BOOTP/DHCP, on a power cycle, the module clears
the current IP configuration and again begins sending DHCP requests.
