Basic Rate Tests Running a Script in Standard Mode
7-16 PN: 13000-00205 Rev. N MT8852B Operation Manual
The Single sensitivity results page displays.
Current BER: Displays the BER as measured in the last 20 returned packets.
Overall BER: Displays the BER for all the returned packets.
Current FER: Displays the FER as measured in the last 20 returned packets.
Overall FER: Displays the FER for all the returned packets.
3. Press the [1 of 3] soft key to display the second page.
4. Press the [2 of 3] soft key to display the third page.
FER due to CRC: Displays the number of packets returned that had a Cyclic
Redundancy Check (CRC) error. These packets are used in BER
calculations.

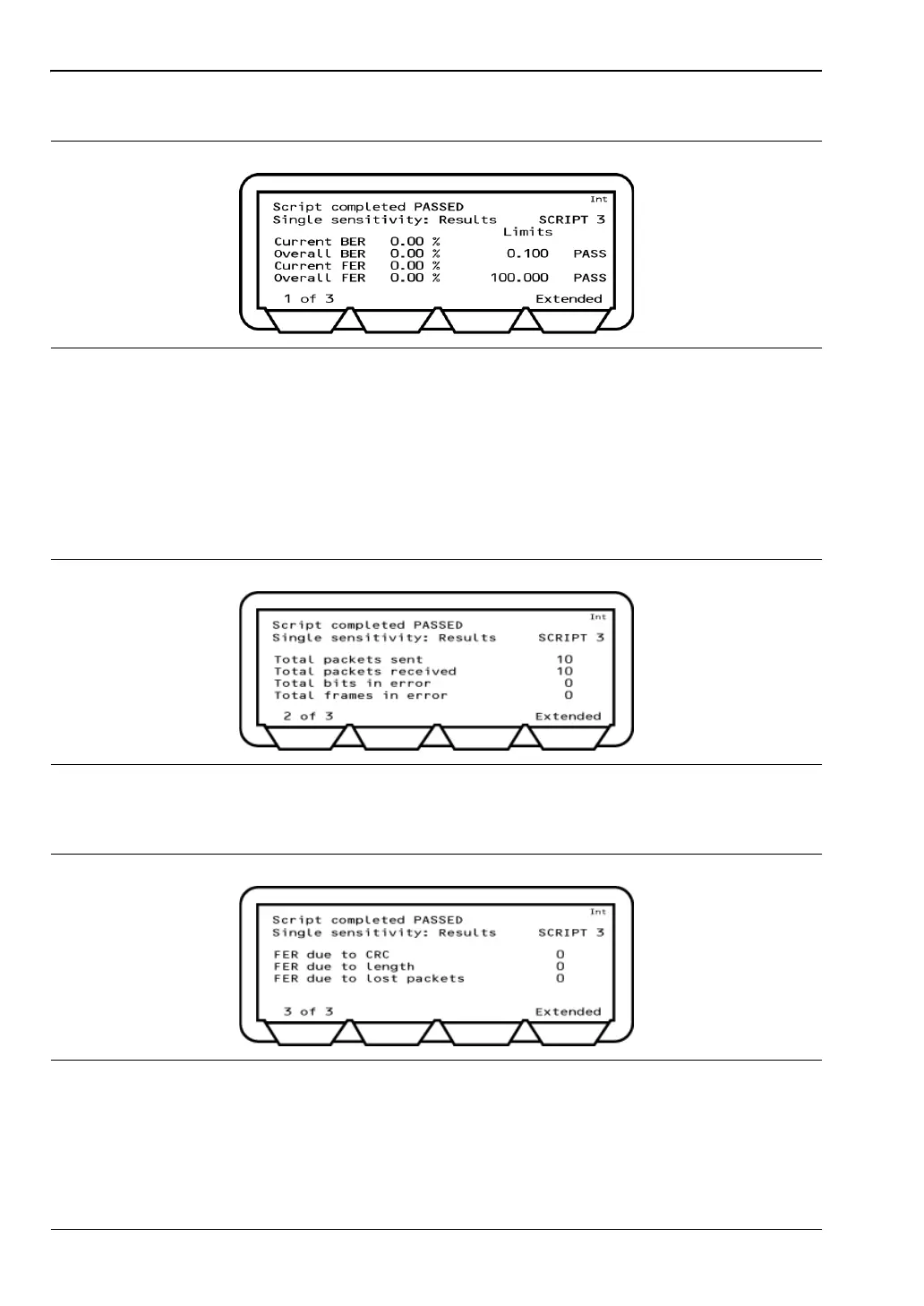

Figure 7-20. Single Sensitivity Results 1
Figure 7-21. Single Sensitivity Results 2
Figure 7-22. Single Sensitivity Results 3
