Special Placement Requirements (DL230 and Remote I/O Bases)
It is important to examine the configuration if a DL230 CPU is being used. As can be seen
in the section on Writing the Control Program, V-memory locations are used to manage
the analog data. If the module is placed so that the input points do not start on a V-memory
boundary, the instructions will not be able to access the data. This also applies when placing

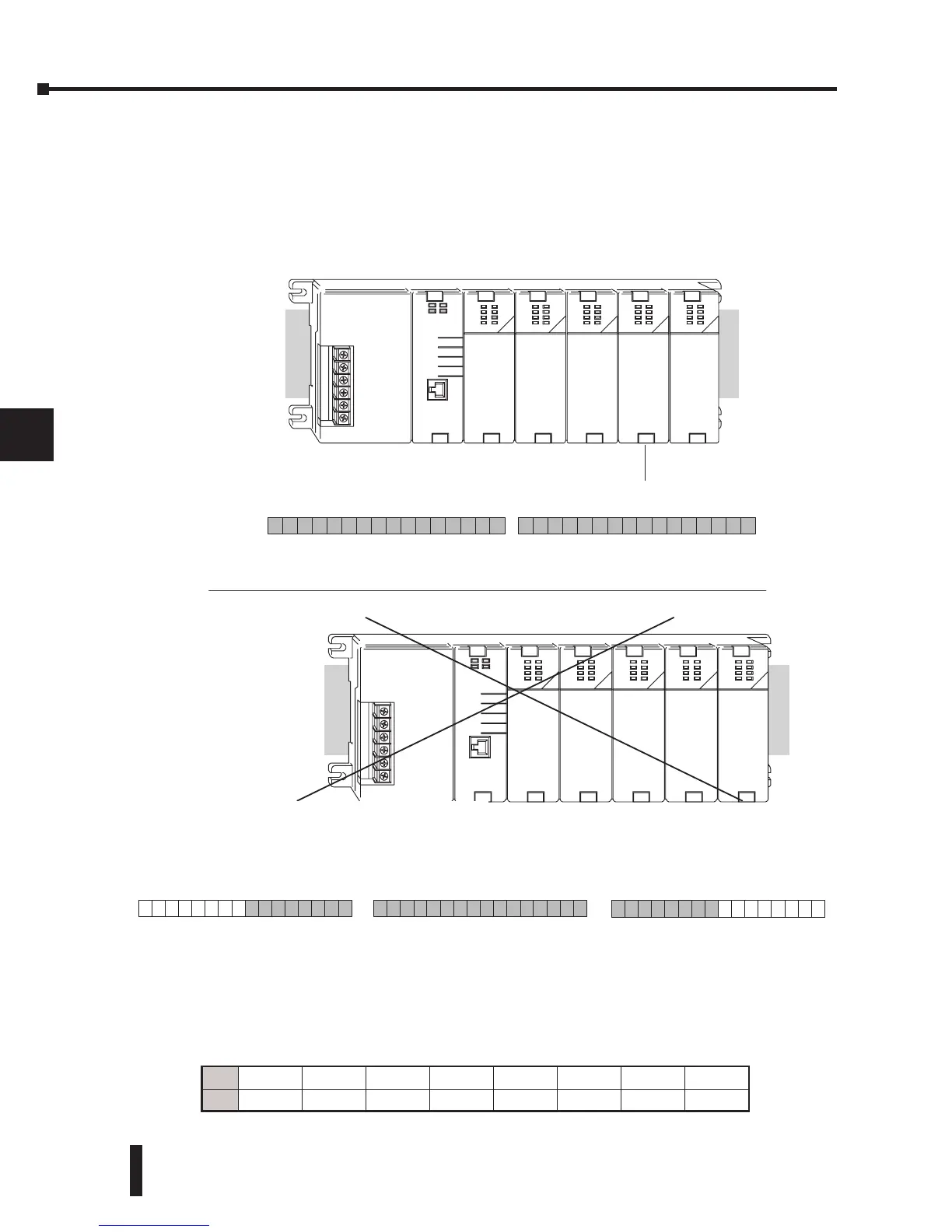

this module in a remote base using a D2-RSS in the CPU slot. Refer to the diagrams below.
To use the V-memory references required for a DL230 CPU, the first input address assigned
to the module must be one of the following X locations. The table also shows the V-memory
addresses that correspond to these X locations.
