Module Specifications

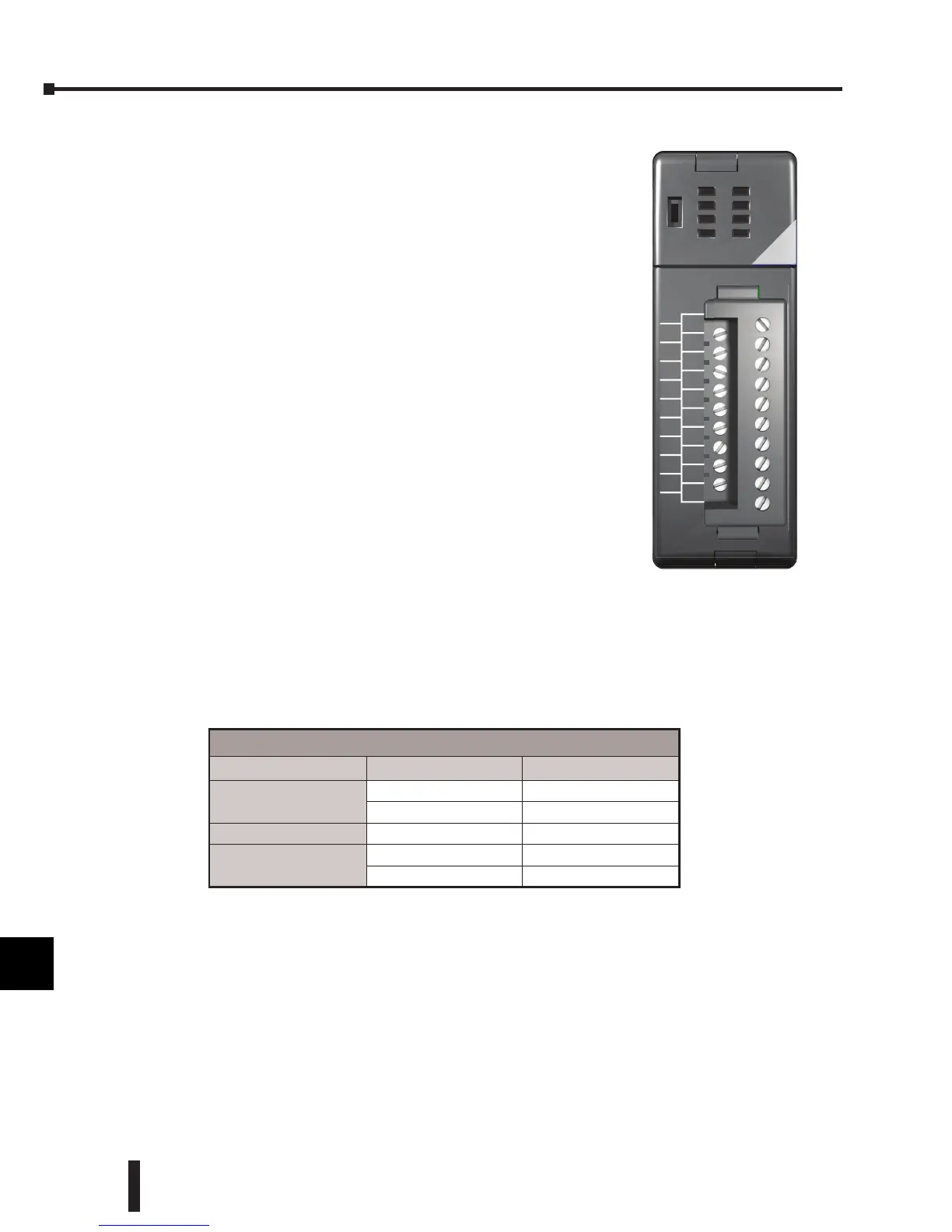

The F2-8AD4DA-2 Analog Voltage Input/Output module
provides several hardware features:
• Analog inputs and outputs are optically isolated from the
PLC logic.
• The module has a removable terminal block so the
module can be easily removed or changed without
disconnecting the wiring.
• All input and output channels are updated in one scan.
• On-board active analog filtering, two CISC microcontrollers
and CPLD provide digital signal processing to maintain
precision analog measurements in noisy environments.
• Low-power CMOS design requires only 80mA from an
external 18–26.4 VDC power supply.
• Input resolution is independently adjustable for each channel.
Users may select 12 bit, 14 bit or 16 bit.
• Output resolution is 16 bit.
• Each input can be independently configured to return the
present value, or to track and hold the maximum or
minimum value.
• No jumper settings.
F2-8AD4DA-2 Hardware and Firmware Requirements
The F2-8AD4DA-2 Analog Voltage Input/Output Module requires one of the following
components as a CPU or controller.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
C
D
IN/
OUT
F2-8AD4DA-2
ANALOG
0V
OUT2
OUT3
0V
IN2
IN3
0V
IN6
IN7
24V
OUT1
0V
OUT4
IN1
0V
IN4
IN5
0V
IN8
18-26.4VDC 80mA
8 INPUTS
0-5/0-10VDC
4 OUTPUTS
0-5/0-10VDC
F2-8AD4DA-2
Hardware and Firmware Requirements
Base Type CPU/Controller Firmware Version
Local
D2-250-1 4.40 or later
D2-260 2.20 or later
Expansion
D2-CM 1.30 or later
Remote I/O
H2-EBC(-F) 2.1.441 or later
H2-EBC100 4.0.457 or later
