Scaling the Input Data
Most applications usually require measure-
ments in engineering units, which provide
more meaningful data. This is accomplished
by using the conversion formula shown.
Adjustments to the formula may be needed
depending on the scale chosen for the engi-
neering units.
For example, if pressure (PSI) is to be
measured with a scale of 0.0–99.9, a multi-
plication factor of 10 would be needed in
order to imply a decimal place when the
value is used in the user program.

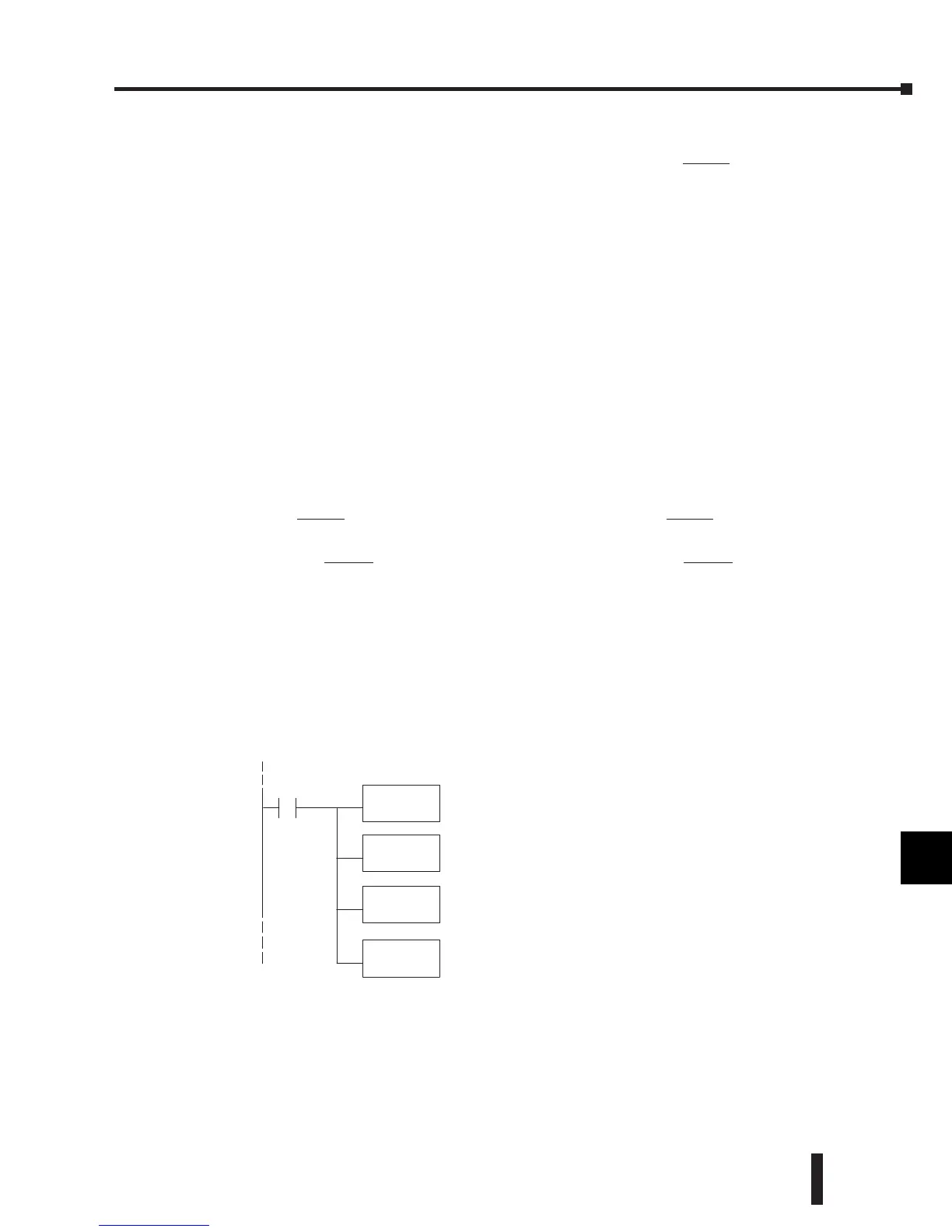

The following rung of logic is an example showing how the program can be written to perform
the engineering unit conversion. This example assumes the data is in BCD format before being
loaded into the appropriate V-memory locations using instructions that apply to the CPU
module being used.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
A
b
C
D
Units = A
H–L
4095
U = Engineering Units
A = Analog Value (0–4095)
H = High limit of the engineering
unit range
L = Low limit of the engineering
unit range
LD
V2000
SP1
MUL
K1000
DIV
K4095
Load channel1data to theaccumulator.
Multiply theaccumulatorby 1000 (tostart theconversion).
Divide theaccumulatorby4095.
OUT
V2010
Storethe result in V2010.
Note,thisexample uses SP1, whichisalwayson. You
could alsouse an X, C, etc. permissive contact.
Units = A
H–L
4095
Units = 2024
100–0
4095
Units = 49
Units = 10A
H–L
4095
Units = 20240
100–0
4095
Units = 494
Analog Value of 2024, slightly less than half scale, should yield 49.4 PSI.
