DL205 Analog Manual, 7th Edition Rev. D
10-2
Chapter 10: F2-08DA-1, 8-Channel Analog Current Output
1
2
3
4
5
6
7
8
9
10
11
12
13
14
A
B
C
D
Module Specifications

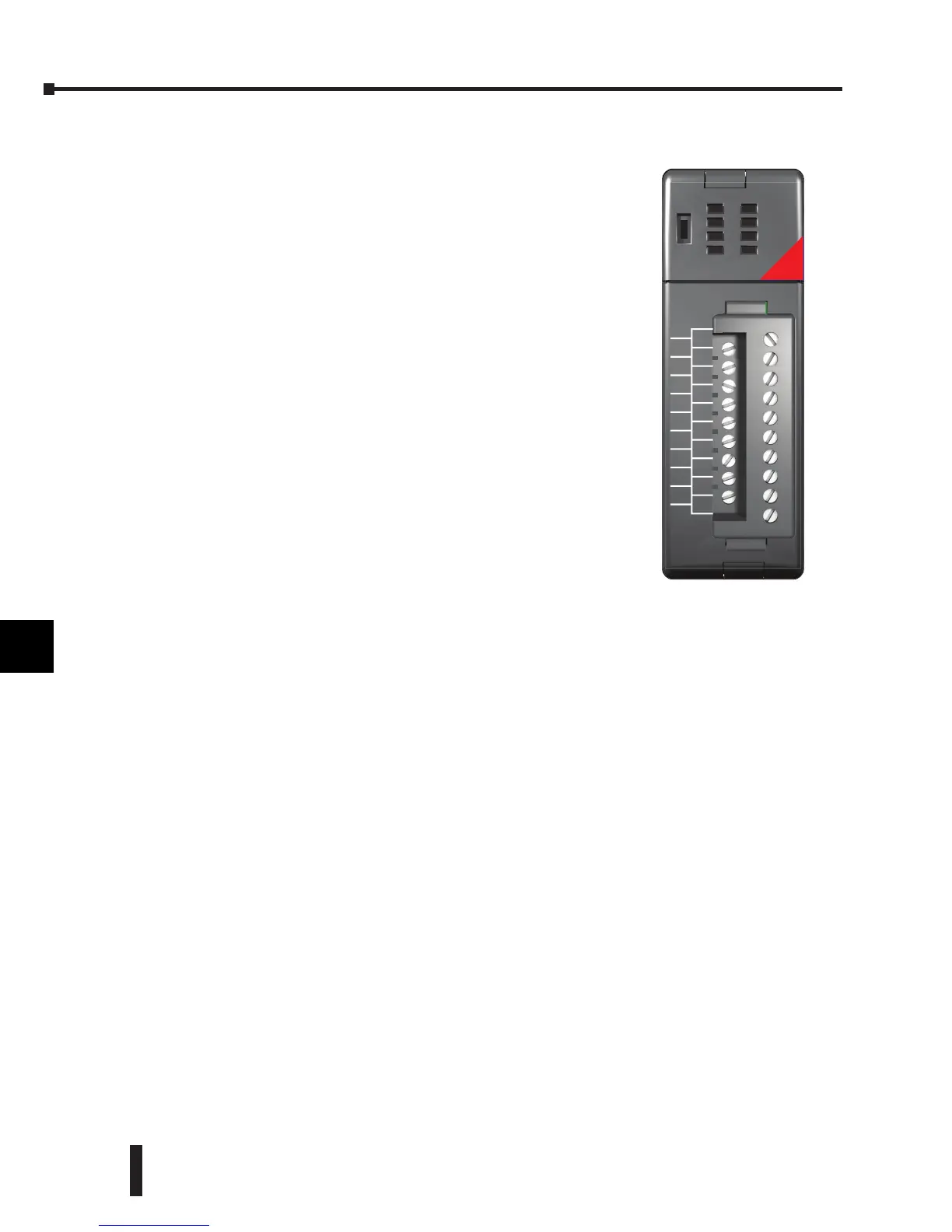

The F2-08DA-1 Analog Output module provides several
hardware features:
• Supported by DL230, DL240, DL250-1 and DL260 CPUs
(see firmware requirements).
• Analog outputs are optically isolated from the PLC
logic.
• The module has a removable terminal block so the
module can be easily removed or changed without
disconnecting the wiring.
• All channels can be updated in one scan (DL240, DL250-1
and DL260 only).
• Outputs are both current sinking and sourcing.
Firmware Requirements:
• To use this module, DL230 CPUs must have firmware
version 2.7 or later.
• To use the pointer method for writing values, DL240 CPUs
require firmware version 3.0 or later.
• DL250 CPUs require firmware version 1.33 or later.
Analog Output Configuration Requirements
The F2-08DA-1 Analog output 16-point output points. The module can be installed in any
slot of a DL205 PLC system, but the available power budget and discrete I/O points can be
the limiting factors. Check the user manual for the particular model of CPU and I/O base
being used for information regarding power budget and number of local, local expansion or
remote I/O points.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
A
b
C
D
OUT
F2-08DA-1
ANALOG
8 CHANNEL
18-26.4VDC
80mA
4-20mA
SNK-SRC
1-O
2-O
3-O
4-O
5-O
6-O
7-O
8-O
0V
1-I
2-I
3-I
4-I
5-I
6-I
7-I
8-I
N/C
24V
F2-08DA-1
