DL205 Analog Manual, 7th Edition Rev. D
2-4
Chapter 2: F2-04AD-1, F2-04AD-1L, 4-Channel Analog Current Input
1
2
3
4
5
6
7
8
9
10
11
12
13
14
A
B
C
D
Analog Input Configuration Requirements
The analog input module will appear as a 16-point discrete input module and can be installed
in any slot of a DL205 system. The available power budget and discrete I/O points are the
limiting factors. For more information check the user manual for the CPU model and I/O base
being used regarding power budget and number of local, local expansion or remote I/O points.

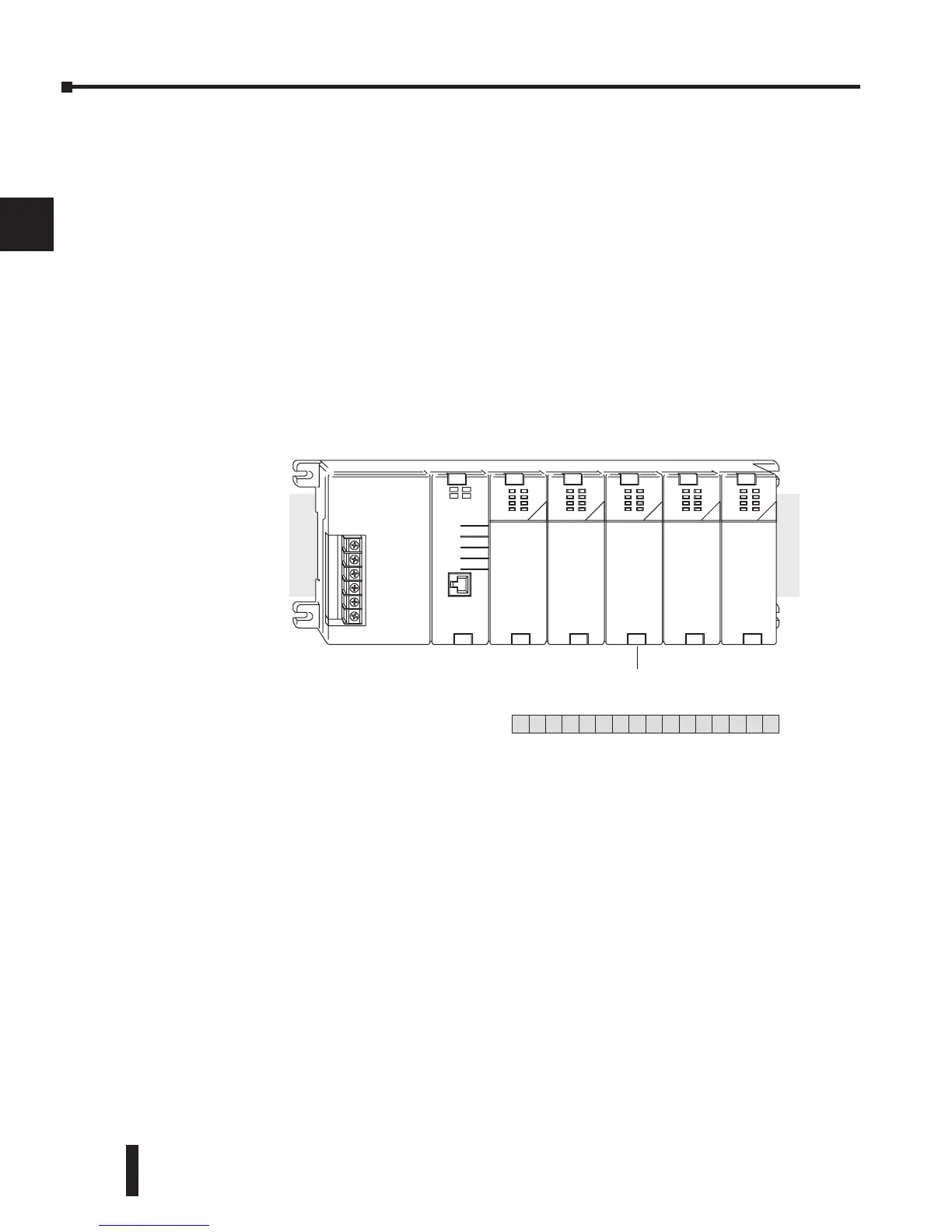

Special Placement Requirements (DL230 and Remote I/O Bases)
Even though the module can be placed in any slot, it is important to examine the configuration
if a DL230 CPU is used, as can be seen in the section about Writing the Program located in
this chapter. V-memory locations are used to extract the analog data. If the module is placed so
the input points do not start on a V-memory boundary, the instructions cannot access the data.
This also applies when placing this module in a remote base using a D2-RSSS in the CPU slot.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
A
b
C
D
X
3
7
F2-04AD-1
V40401
BSLBSM
X
2
0
V40400V40402
Correct!
8pt
Input
8pt
Input
16pt
InputOutput
16pt16pt
Input
X0
--
X7
X10
--
X17
X20
--
X37
X40
--
X57
Y0
--
Y17
Slot 0Slot1 Slot 2Slot3 Slot 4
Data is correctly entered so input
points start on a V-memory boundary.
