DL205 Analog Manual, 7th Edition Rev. D
5-2
Chapter 5: F2-08AD-2, 8-Ch. Analog Voltage Input
1
2
3
4
5
6
7
8
9
10
11
12
13
14
A
B
C
D
Module Specifications
NOTE: A re-designed F2-08AD-2 with a single circuit board design was released in 2009. The jumper link location is
different. See Setting the Module Jumpers on page 5-6. Also, some specifications were changed on page 5-3. Otherwise,
the re-designed module functions the same as the prior design.

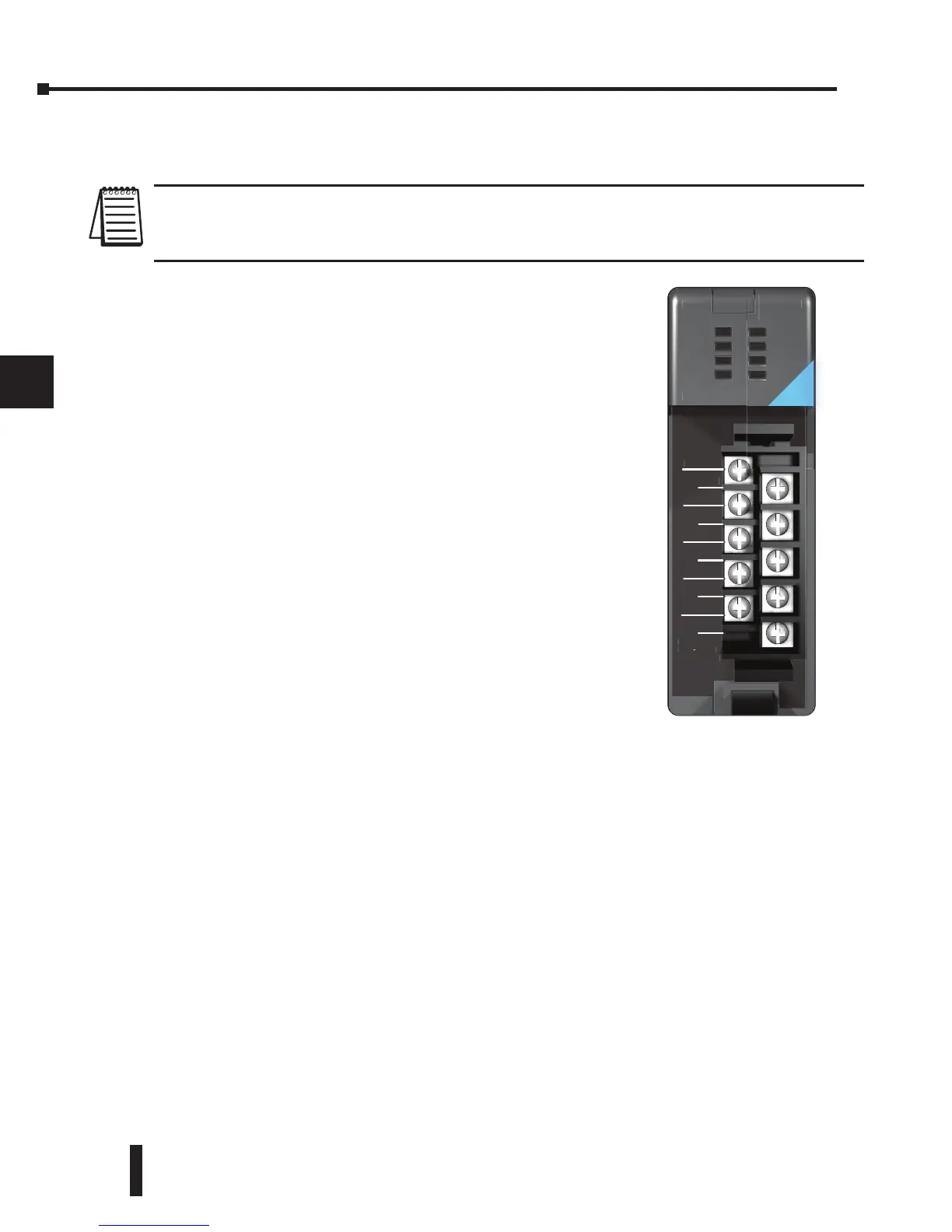

The F2-08AD-2 Analog Voltage Input module provides
several hardware features:
• Analog inputs are optically isolated from the PLC logic.
• The module has a removable terminal block so the module
can be easily removed or changed without disconnecting the
wiring.
• With a DL240, DL250-1 or DL260 CPU, all channels can
be updated in one scan.
Firmware Requirements:
To use this module, D2-230 CPUs must have firmware
version 1.6 or later. To use the pointer method of writing
values, D2-240 CPUs require firmware version 2.2 or later.
All versions of the D2-250-1 and D2-260 CPU’s firmware
support this module and the pointer method.
Analog Input Configuration Requirements
The F2-08AD-2 Analog Input appears as a 16-point discrete input module. The module can
be installed in any slot of a DL205 system. The available power budget and discrete I/O points
are the limiting factors. Check the user manual for the CPU model and I/O base being used
for more information regarding power budget and number of local, local expansion or remote
I/O points.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
A
b
C
D
+24V
CH2+
CH4+
CH6+
CH8+
0V
CH1+
CH3+
CH5+
CH7+
F2-08AD-2
IN ANALOG
8CH
10-30VDC
5mA
ANALOG IN
0-5.0 - 10VDC
+/-5, +/-10VDC
+
2
4
V
C
H2+
C
H4+
C
H6+
C
H
8
+
0V
C
H1+
C
H
3
+
C
H
5
+
C
H7+
F2
-
08
AD-
2
IN
10
-
30
VD
C
5
m
A
A
NAL
OG
IN
0
-5.
0
-
10VD
C
+/
-5, +
/
-10VD
C
A
NAL
OG
A
8C
H
