Chapter 4: F2-08AD-1, 8-Channel Analog Current Input
1
2
3
4
5
6
7
8
9
10
11
12
13
14
A
b
C
D

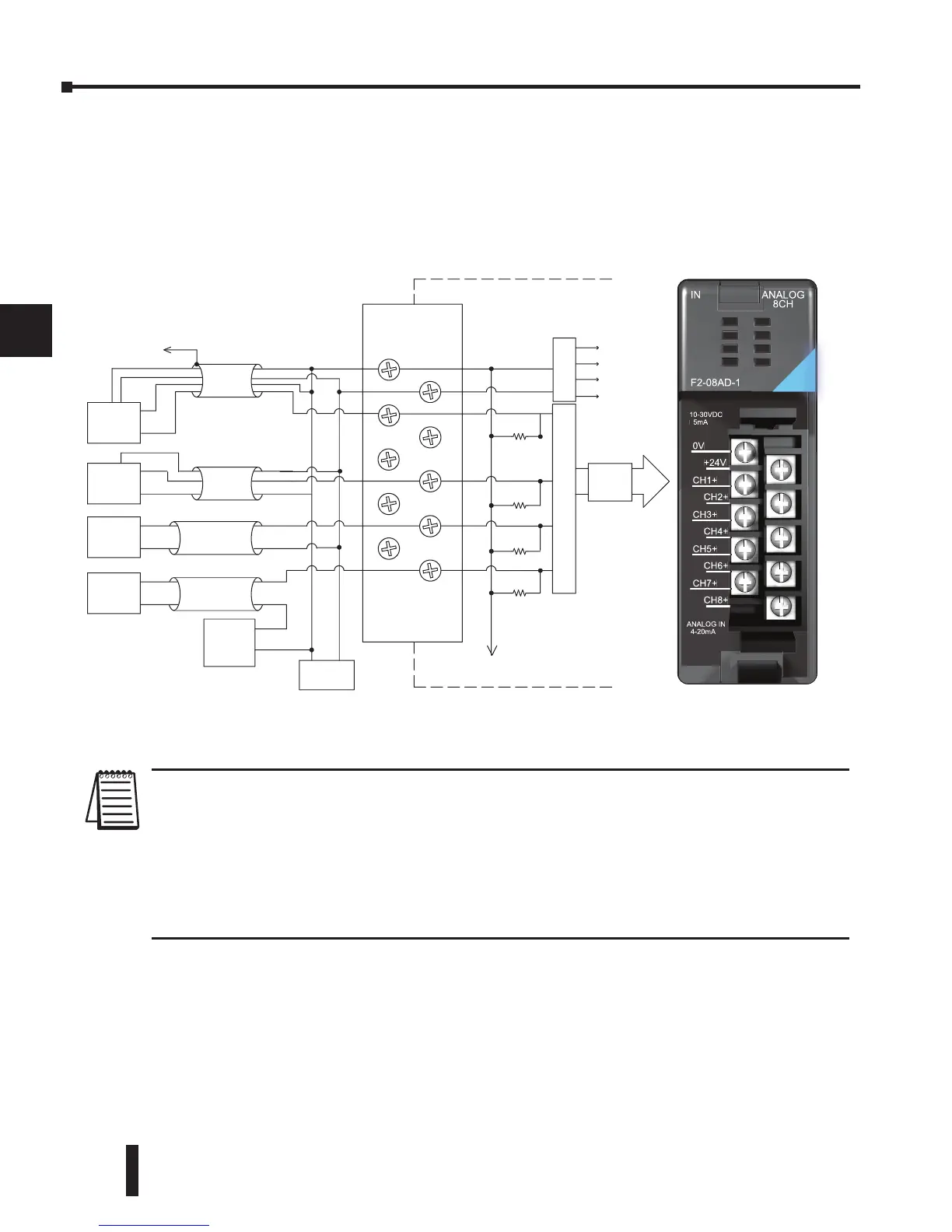

Wiring Diagram
The F2-08AD-1 module has a removable connector to simplify wiring the module. Just
squeeze the top and bottom retaining clips and gently pull the connector from the module.
Use the following diagram to connect the fi eld wiring.
NOTE 1: Shields should be grounded at the signal source.
NOTE 2: More than one external power supply can be used, provided all the power supply commons are connected.
NOTE 3: A Series 217, 0.032A fast-acting fuse is recommended for 4-20 mA current loops.
NOTE 4: If the power supply common of an external power supply is not connected to 0 VDC on the module, then the
output of the external transmitter must be isolated. To avoid ”ground loop” errors, recommended 4-20 mA transmitter
types are:
2 or 3 wire: Isolation between input signal and power supply.
4 wire: Isolation between input signal, power supply, and 4-20 mA output.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
A
b
C
D
CH1
4--wire
4--20mA
Transmitter
Optional
OV
A to D
Converter
Internal
Module
Wiring
Analog Switch
+
--
External
P/S
See NOTE 1
250 ohms
CH4
3--wire
4--20mA
Transmitter
CH6
2-wire
4--20mA
Transmitter
CH8
2-wire
4--20mA
Transmitter
+
--
+
--
+
--
+
--
+
+
0VDC
+24VDC
CH1+
CH3+
CH5+
CH7+
CH8+
CH6+
CH4+
CH2+
+
--
24VDC
DC to DC
Converter
+5V
+15V
0V
--15V
+24V
CH2+
CH4+
CH6+
CH8+
0V
CH1+
CH3+
CH5+
CH7+
F2-08AD-1
IN ANALOG
8CH
10-30VDC
5mA
ANALOG IN
4-20mA
+24V
CH2+
CH4+
CH6+
CH8+
0V
CH1+
CH3+
CH5+
CH7+
F2-08AD-1
IN
10-30VDC
5mA
ANALOG IN
4-20mA
ANALOG
ANALOG
8CH
250 ohms
250 ohms
250 ohms
Typical User Wiring
-
