AutomationDirect DL205 Manual

DL205 Analog Manual, 7th Edition Rev. D
14-2
Chapter 14: F2-4AD2DA, 4-Ch. In / 2-Ch. Out Analog Combination
1
2
3
4
5
6
7
8
9
10
11
12
13
14
A
B
C
D

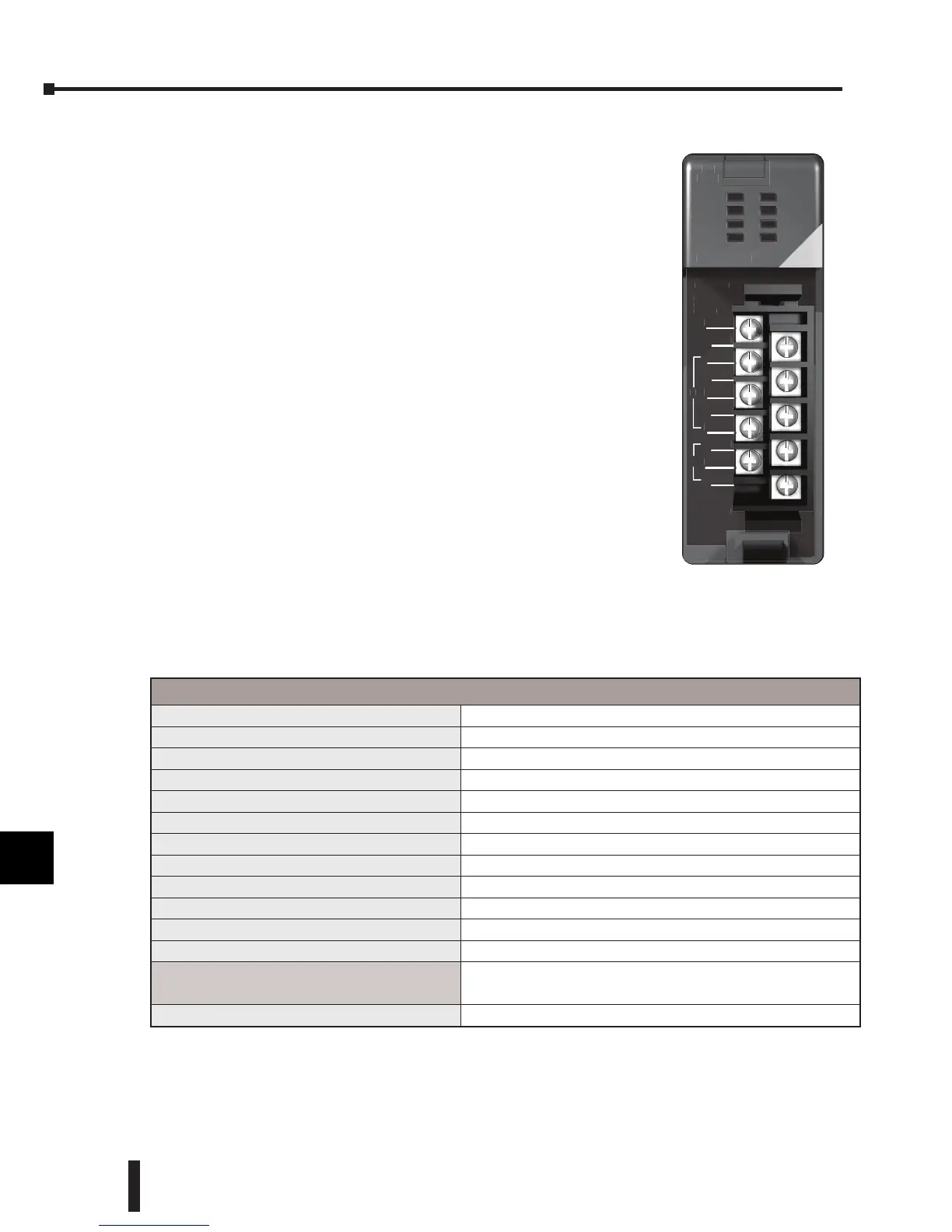

Module Specifications
The F2-4AD2DA Analog Input/Output module provides
several hardware features:
• On-board 250 ohm, 1/2 watt precision resistors provide
substantial over-current-protection for 4–20mA current
loops.
• Analog inputs and outputs are optically isolated from the
PLC logic.
• The module has a removable terminal block so the
module can be easily removed or changed without
disconnecting the wiring.
• All input and output channels can be updated in one scan if
either a DL240, a DL250-1 or a DL260 CPU is used in the
PLC.
• On-board active analog filtering and RISC-like
microcontroller provide digital signal processing to maintain
precision analog measurements in noisy environments.
• Low-power CMOS design requires less than 80mA from an
external 24VDC power supply.
The following tables provide the specifications for the F2-4AD2DA Analog Input/Output
Module.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
A
b
C
D
+24V
CH1+
CH3+
OUT-
CH2+
0V
IN
CH2+
CH4+
CH1+
F2-4AD2DA
IN/
OUT
ANALOG
F2-4AD2DA
IN
OUT
18-26.4VDC
80mA
ANALOG
4 IN/2 OUT
4-20mA
+
2
4
V
CH1+
+
+
+
CH3+
+
+
+
O
UT
-
CH2+
+
+
0V
IN
C
H2+
C
H4+
C
H1+
F2
-4AD
2
DA
I
N
/
OUT
A
NAL
OG
A
F2
-4AD
2
D
A
IN
O
U
T
18
-2
6
.4VD
C
80
m
A
A
NAL
OG
4 IN
/
2
OUT
4-2
0
m
A
F2-4AD2DA
Input Specifications
Number of Input Channels
4, single ended (one common)
Range
4–20 mA
Resolution
12 bit (1 in 4096)
Input Impedance
250q, ±0.1%, 1/2W, 25 ppm/°C current input resistance
Maximum Continuous Overload
-40–+40mA, each current input
Input Stability
±1 count
Crosstalk
-70 dB, 1 count maximum
Common Mode Rejection
-50 dB @ 800Hz
Active Low-Pass Filter
-3 dB @ 50Hz, 2 poles (-12 dB per octave)
Step Response
10ms to 95%
Full Scale Calibration Error
±12 counts maximum, @ 20mA current input
Offset Calibration Error
±8 counts maximum, @ 4mA current input
Maximum Inaccuracy
±0.3% @ 25°C (77°F)
±0.45% @ 0–60°C (32–140°F)
Recommended External Fuse
0.032A, series 217 fast-acting, current inputs
