DL205 Analog Manual, 7th Edition Rev. D
3-2
Chapter 3: F2-04AD-2 , F2-04AD-2L, 4-Channel Analog Voltage Input
1
2
3
4
5
6
7
8
9
10
11
12
13
14
A
B
C
D

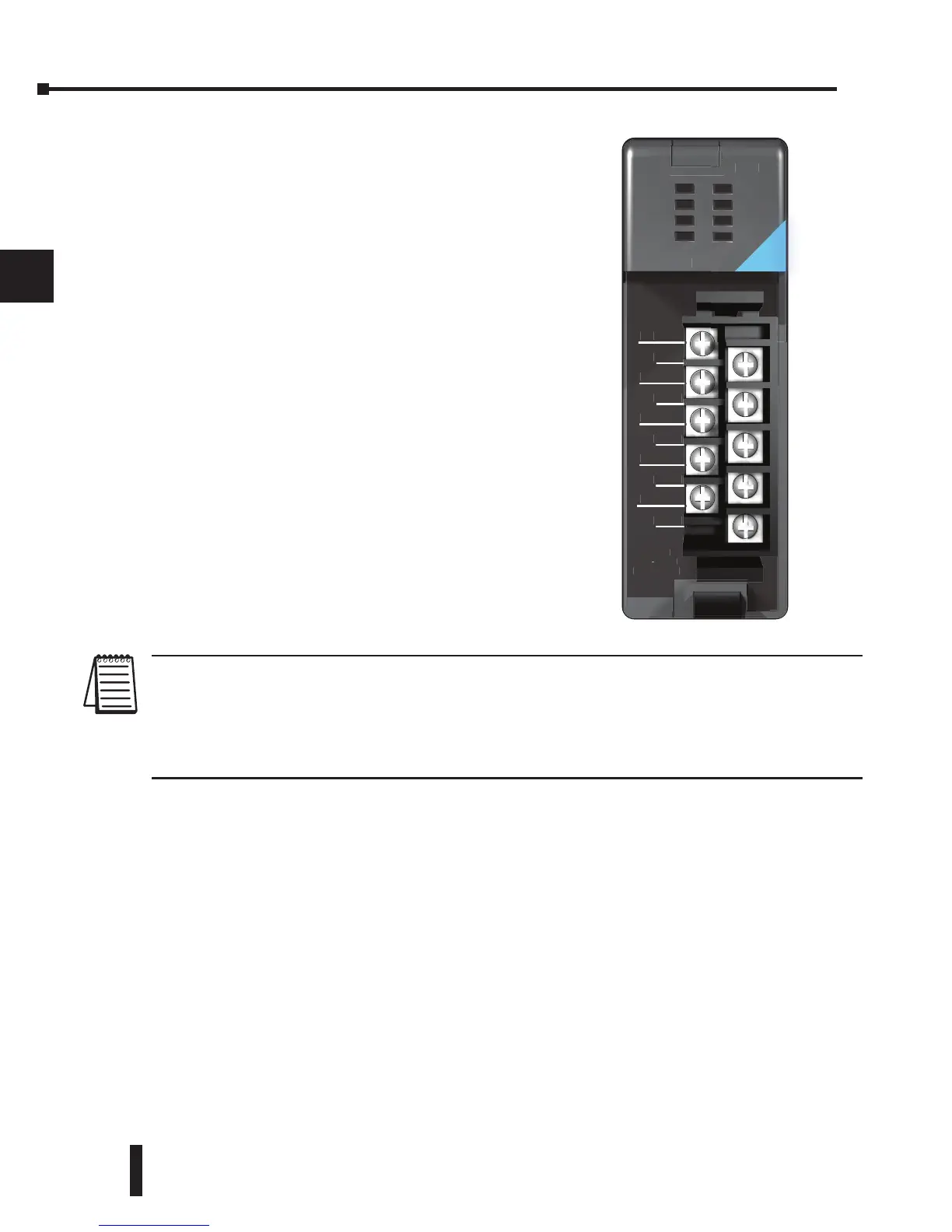

Module Specifications
F2-04AD-2
The F2-04AD-2 analog Input module provides several
hardware features.
• Analog inputs are optically isolated from the PLC
logic.
• The module has a removable terminal block so the
module can be easily removed or changed without
disconnecting the wiring.
• With a DL240/250-1/260 CPU, all four channels
can be read in one scan.
• On-board active analog filtering and
microcontroller provide digital signal processing
to maintain precision analog measurements in noisy
environments..
F2-04AD-2L is Obsolete
NOTE: In 2009 the F2-04AD-2L was discontinued. A re-designed F2-04AD-2 was released at the same time which can be
powered by either 12VDC or 24VDC input power supplies. This new module is a direct replacement for prior F2-04AD-2 and
all F2-04AD-2L modules. The new module is a single circuit board design and the jumper link locations are different. See
Setting the Module Jumpers on page 3-5. Also, some specifications were changed on page 3-3. Otherwise, the re-designed
module functions the same as the prior designs.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
A
b
C
D
+24V
CH1+
CH2+
CH3+
CH4+
0V
CH1–
CH2–
CH3–
CH4–
F2-04AD-2
IN ANALOG
4CH
10-30VDC
5mA
ANALOG IN
0-5, 0 - 10VDC
+/-5, +/-10VDC
+
H
Analog Input Configuration Requirements
The F2-04AD-2 appears as a 16-point discrete input module and can be installed in any slot of
a DL205 system. The available power budget and discrete I/O points are the limiting factors.
For more information regarding power budget and number of local, local expansion or remote
I/O points, check the user manual for the particular CPU model and I/O base being used.
