DL205 Analog Manual, 7th Edition Rev. D
13-5
Chapter 13: F2-02DAS-2, 0-5V, 0-10V, 2-Channel Isolated Analog Output
1
2
3
4
5
6
7
8
9
10
11
12
13
14
A
B
C
D
Setting the Module Jumpers
The F2-02DAS-2 Analog Output module uses jumpers for selecting the voltage range for each
channel. The range of each channel can be independently set. The available operating ranges
are 0–5V and 0–10V.
There is one jumper for each channel. Install or remove these jumpers to select the desired
range. Unused jumpers can be stored on a single pin so they will not get lost. The module
comes from the factory set for the 0–5V range.
NOTE: Be sure to set the range jumpers properly for the module will not function properly if the range jumpers are not set
for the desired voltage range.

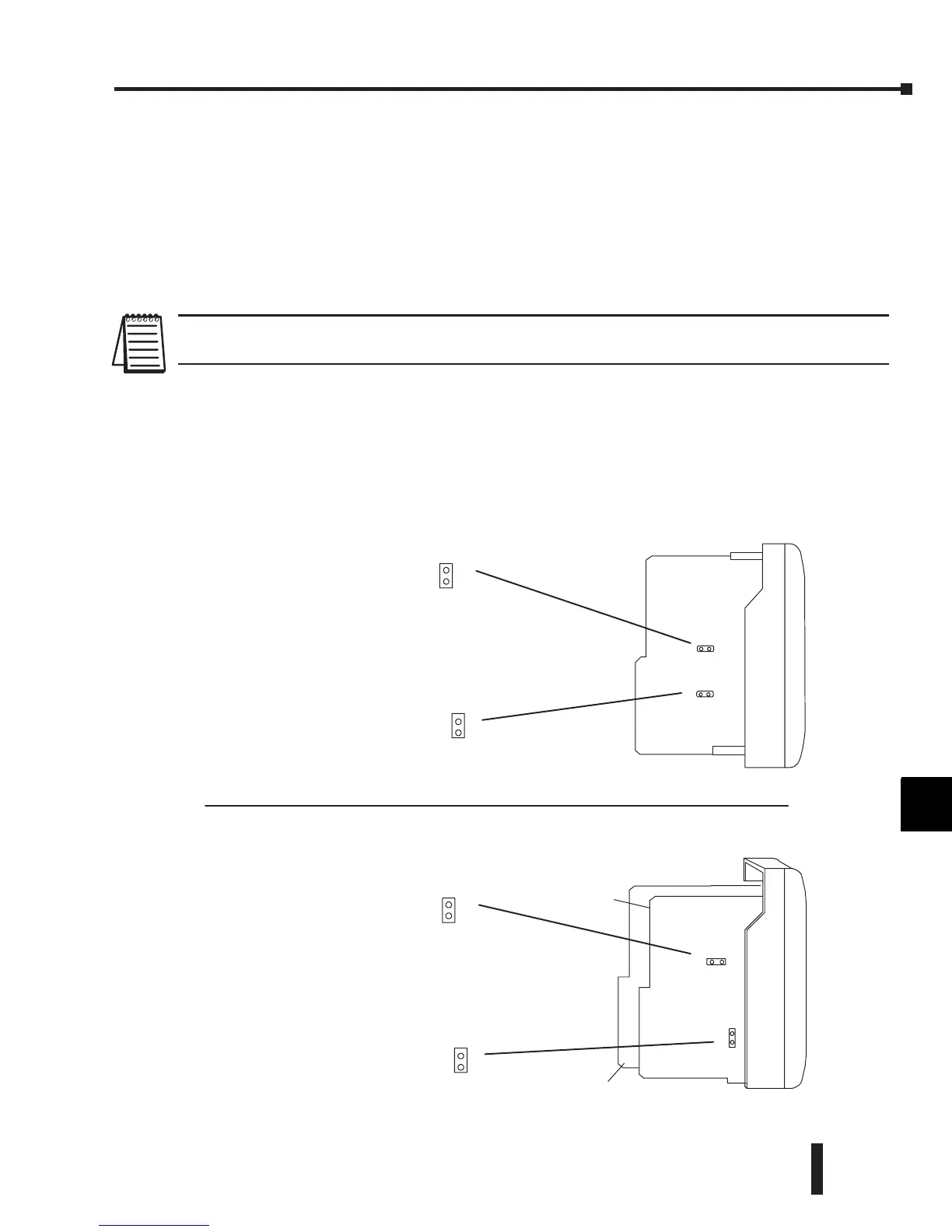

The following diagrams show the jumper locations. The newer models have a single circuit
board design. Refer to the top diagram if one of these modules is used in your system. The
older modules have a two circuit board design. The range jumpers for this module is located
on the top circuit board. Refer to the lower diagram.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
A
b
C
D
CH1
TopBoard
Bottom Board
Jumper
ON =0-- 5V
OFF=0-- 10V
CH2
Jumper
ON =0-- 5V
OFF=0-- 10V
J2
J4
TwoCircuit Board Design
Single Ci rcuitBoard Design
CH1
Jumper
ON =0-- 5V
OFF=0-- 10V
CH2
Jumper
ON =0-- 5V
OFF=0-- 10V
