DL205 Analog Manual, 7th Edition Rev. D
2-2
Chapter 2: F2-04AD-1, F2-04AD-1L, 4-Channel Analog Current Input
1
2
3
4
5
6
7
8
9
10
11
12
13
14
A
B
C
D
Module Specifications

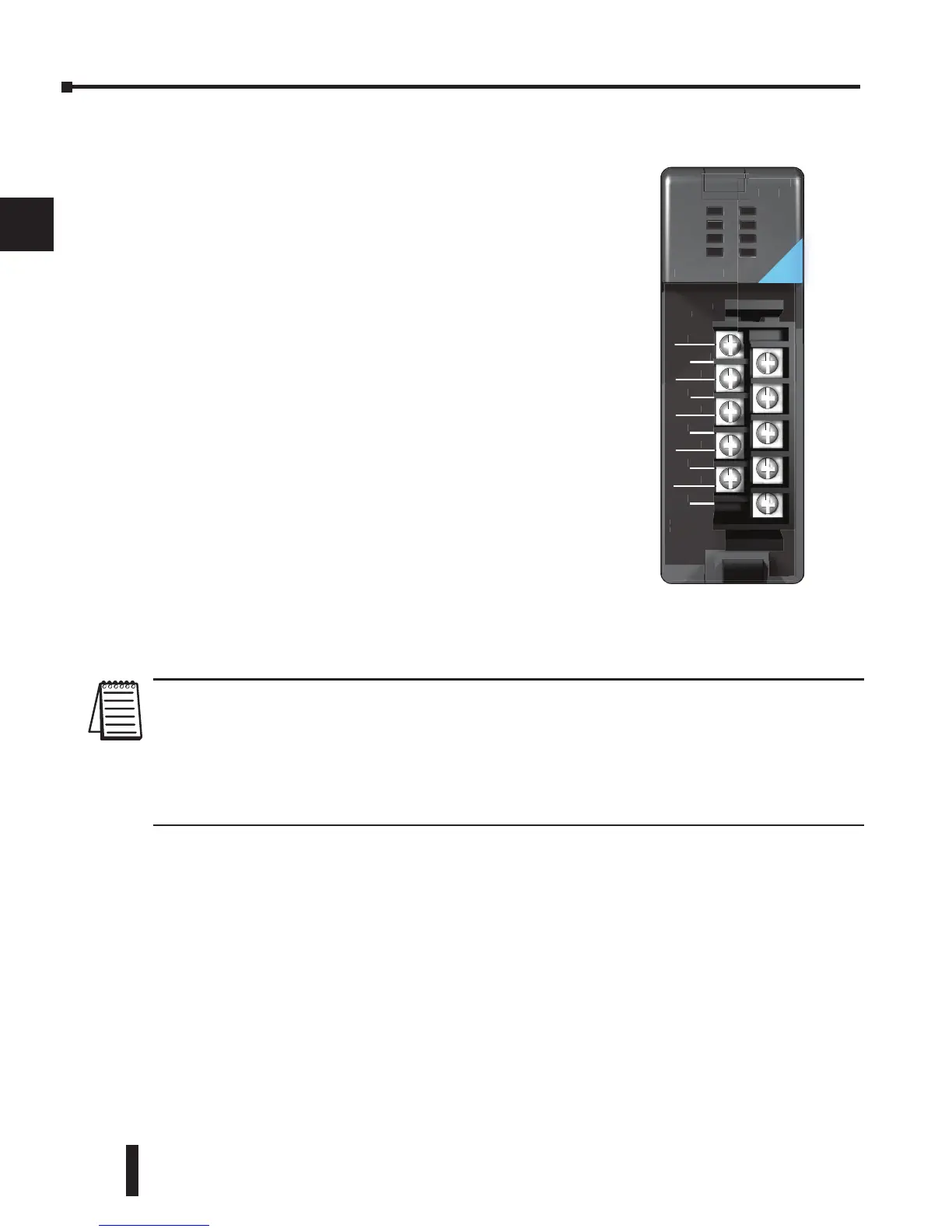

F2-04AD-1
The F2-04AD-1 analog Input module provides several
hardware features.
• On-board 250 ohm, 1/2 watt precision resistors provide
substantial over-current-protection for 4–20mA current
loops.
• Analog inputs are optically isolated from the PLC logic.
• The module has a removable terminal block so the
module can be easily removed or changed without
disconnecting the wiring.
• With a DL240/250-1/260 CPU, all four channels can be
read in one scan.
• On-board active analog filtering and RISC-like
microcontroller provide digital signal processing
to maintain precision analog measurements in noisy
environments.
F2-04AD-1L is Obsolete
NOTE: In 2009 the F2-04AD-1L was discontinued. A re-designed F2-04AD-1 was released at the same
time which can be powered by either 12 VDC or 24 VDC input power supplies. This new module is a direct
replacement for prior F2-04AD-1 and all F2-04AD-1L modules. The new module is a single circuit board
design and the jumper link locations are different. See Setting the Module Jumpers on page 2-5. Also, some
specifications were changed on page 2-3. Otherwise, the re-designed module functions the same as the prior
designs.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
A
b
C
D
+24V
CH1+
CH2+
CH3+
CH4+
0V
CH1–
CH2–
CH3–
CH4–
F2-04AD-1
IN ANALOG
4CH
18-26.4VDC
5mA
ANALOG IN
4-20mA
+
2
4
V
C
H1+
C
H2+
C
H3+
C
H4+
0V
C
H1–
C
H2–
C
H
3
–
C
H4–
F2
-
0
4AD-
1
IN
1
8-26.4VD
C
5
m
A
A
NAL
O
G
IN
4-
20
m
A
A
NAL
OG
A
4C
H
