DL205 Analog Manual, 7th Edition Rev. D
11-2
Chapter 11: F2-08DA-2, 8-Channel Analog Voltage Output
1
2
3
4
5
6
7
8
9
10
11
12
13
14
A
b
C
D

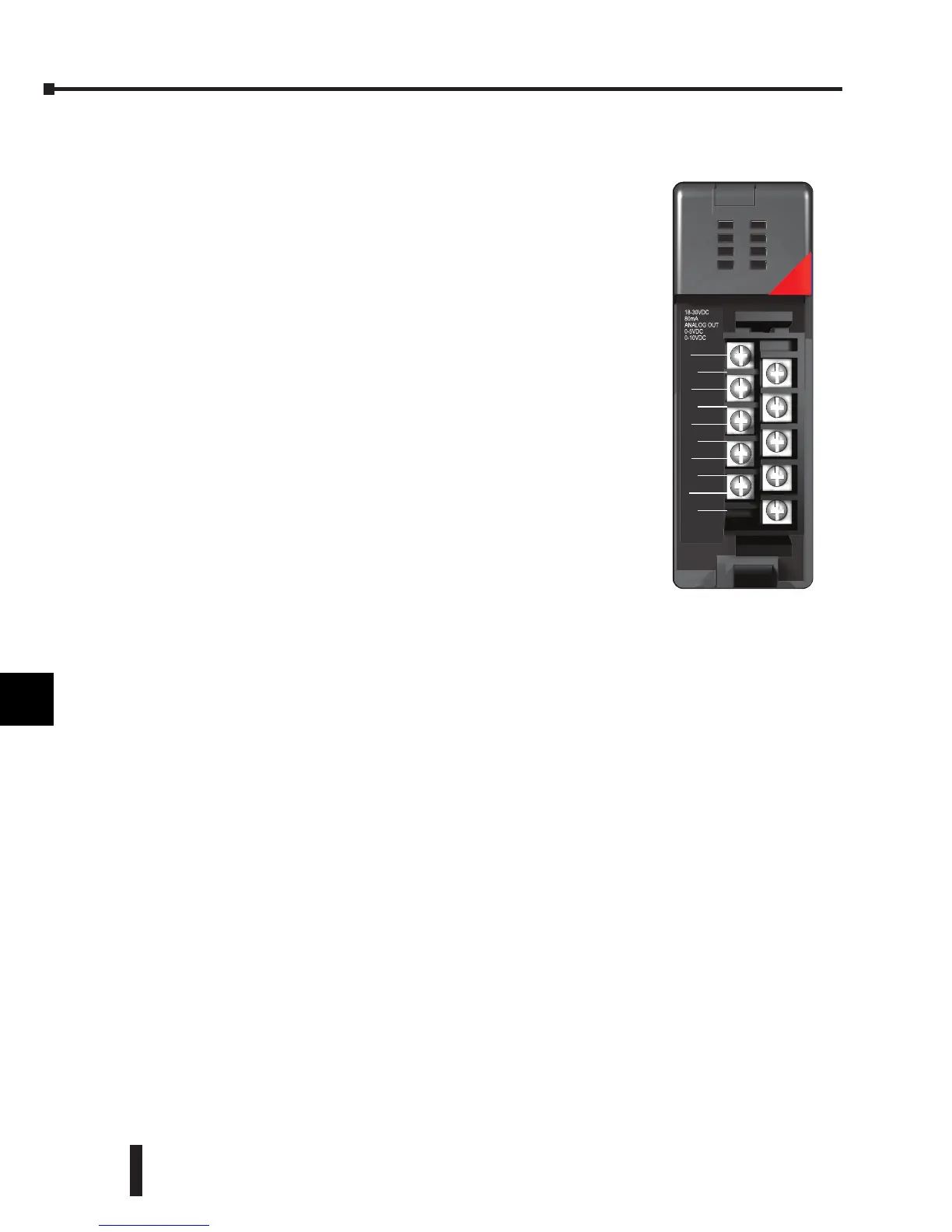

Module Specifications
The F2-08DA-2 Analog Output module provide several
hardware features:
• Analog outputs are optically isolated from the PLC
logic.
• The module has a removable terminal block so the
module can be easily removed or changed without
disconnecting the wiring.
• All channels can be updated in one scan if either a DL240,
a DL250-1 or a DL260 CPU is used in the PLC.
• Outputs are voltage sourcing.
• Outputs can be configured for any of the following ranges:
1) 0–5 VDC
2) 0–10 VDC
Firmware Requirements:
• To use this module, DL230 CPUs must have firmware
version 2.7 or later.
• To use the pointer method for writing values, DL240 CPUs
require firmware version 3.0 or later.
• DL250 CPUs require firmware version 1.33 or later.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
A
b
C
D
18-30VDC
80mA
ANALOG OUT
0-5VDC
0-10VDC
To Next Page
