2000X energy Power Supply Chapter 6: Operation
Instruction Manual Using the System Configuration Menu
011-003-991 EN 6-117
Configuring the User I/O
User I/O Menu is used to configure custom actuator inputs and outputs. The User I/O menu can only be
entered when the welder is not in the process of welding. If the welder is welding, the beeper will sound and
entry will be denied. When entry does occur, the welder will no longer be ready, preventing welding, horn
down and test. If horn down is not available, a 2-second message will be displayed indicating horn down is
not available.

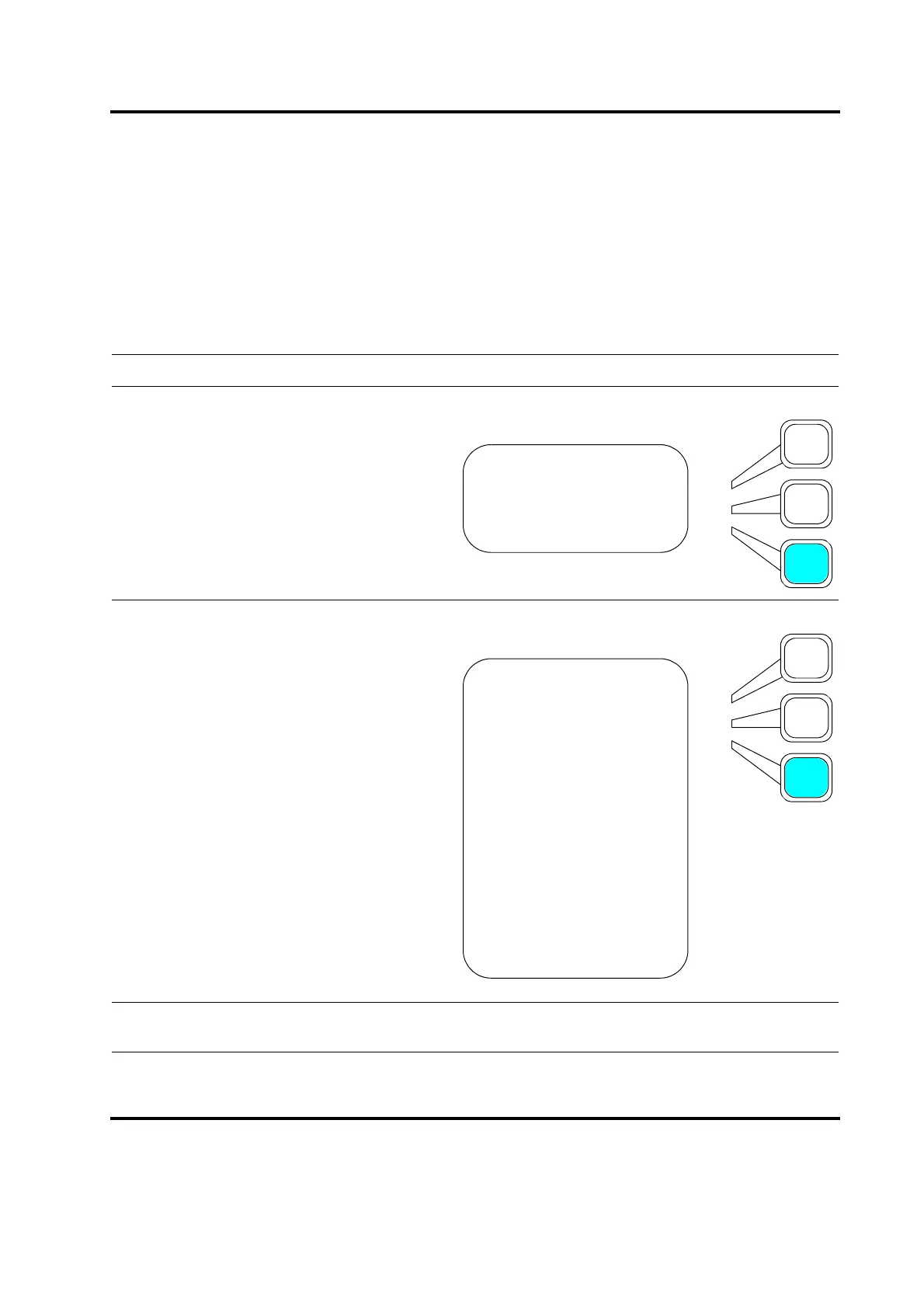

Take this action… To get this result…
From the System Configuration menu,
scroll down to User I/O and press the
Select key that corresponds to User I/O.
This will toggle the function On and Off. The
following screen shows a portion of the
configurable Input and Output pins that are
accessable at J3 when toggled to On.
This screen shows the 6 configurable
INPUTs and 3 configurable OUTPUTs. The
tables below list the features that can be
accessed and selected for each of the
INPUT and OUTPUT pins respectively at
J3. Please note the pin J3-1 Input excep-
tion.
User Inputs: toggle to change from 0 to
24V.
Ext Start Delay: use keypad to enter value,
>Enter.
Factory Defaults: Select OK to revert back
to factory defaults. Option is Cancel
Refer to the Branson Automation Guide (EDP 100-214-273) for additional information about selection
and use of Input and Output features listed in the following Table.
SYS CONFIG Pg16of19
Hand Held = Off
Ext Presets = Off
User I/O
User I/O Pg1to10of10
J3-32 INPUT >
J3-33 INPUT >
J3-19 INPUT >
J3-17 INPUT >
J3-31 INPUT >
J3-1 INPUT >
J3-8 OUTPUT >
J3-36 OUTPUT >
J3-22 OUTPUT >
User Inputs =24V
Ext Start Dly =5.000
Factory Defaults
