Chapter 4: Installation and Setup
Installing the Ultrasonic Stack in the Actuator
4-42 011-003-991 EN
4.9.5 Connecting Tip to Horn
1. Clean the mating surfaces of the horn and tip. Remove foreign matter from the threaded stud and
hole.
2. Hand assemble the tip to the horn. Assemble dry. Do not use any silicone grease.
3. Use the spanner wrench and an open-end wrench (Refer to Figure 4.19
) and tighten to the following
torque tip specifications:

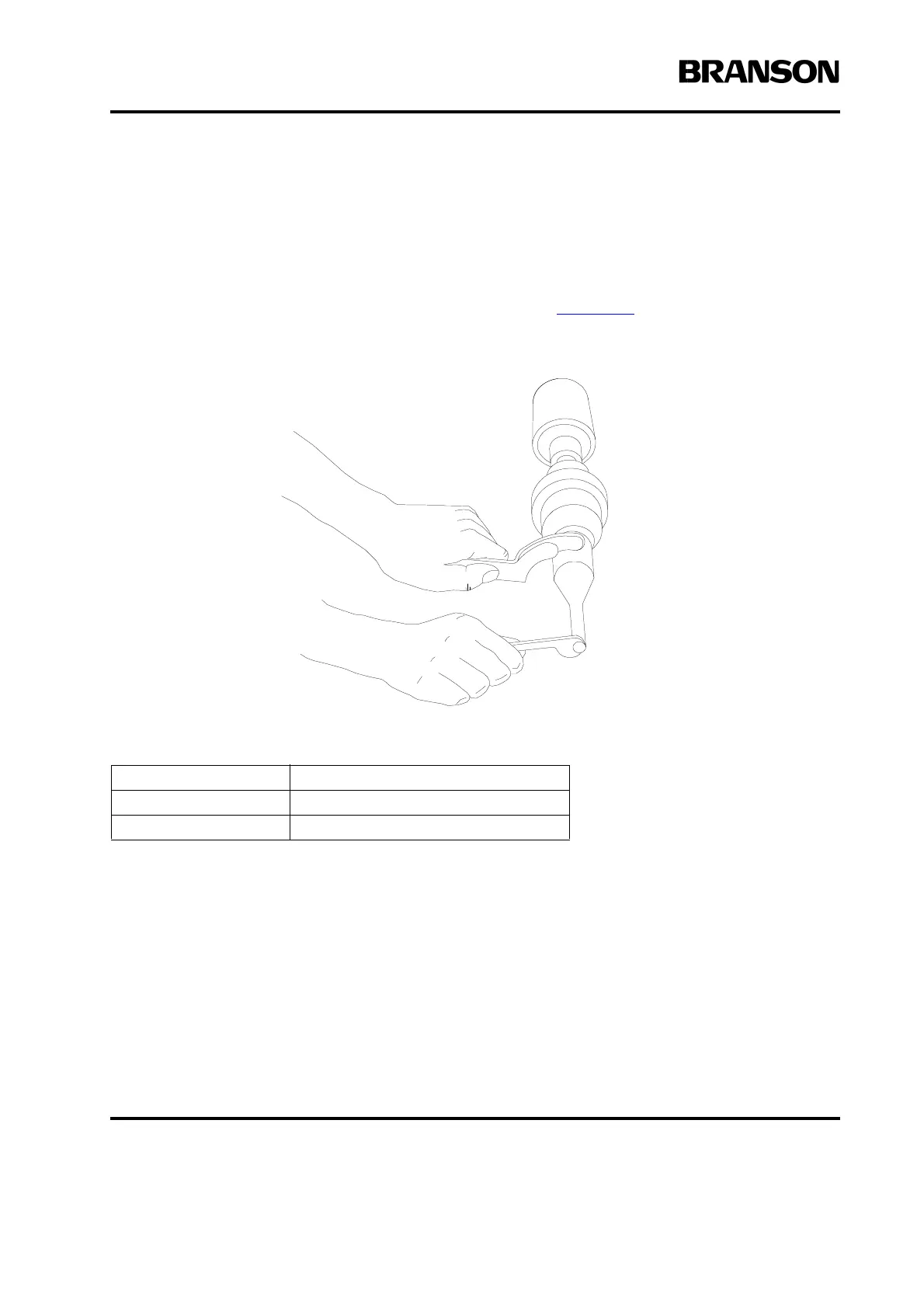

Figure 4.19 Connecting Tip to Horn
Table 4.12 Tip to Horn Torque Values
4.10 Installing the Ultrasonic Stack in the Actuator
This section lists the steps and indicates the assembly procedures for various ultrasonic stacks.
4.10.1 15kHz, 20kHz, and 30kHz CA Converter Stacks
The ultrasonic stack must first be assembled. To install the stack:
1. Make sure that the system power is turned off by disconnecting the power plug.
Tip Thread Torque
1/4 - 28 110 in.-lbs, 12.42 Nm.
3/8-24 180 in.-lbs, 20.33 Nm.
