2000X energy Power Supply Chapter 5: Technical Specifications
Instruction Manual Standard Modules and Components
011-003-991 EN 5-7
User I/O
The User I/O board provides a standard interface for automation and is accessed on the rear of the power
supply at J3. It gives the customer the ability to make their own interface for automation or special control
and/or special reporting needs. Electrical interface outputs may be configured for open collector mode or
for signal mode (signal voltage levels as indicated) by setting the User I/O DIP switch located next to J3.
5.3.2 Converters and Boosters
A variety of converters and boosters available, for use with the 2000X Power Supply, are illustrated in the
following pages.

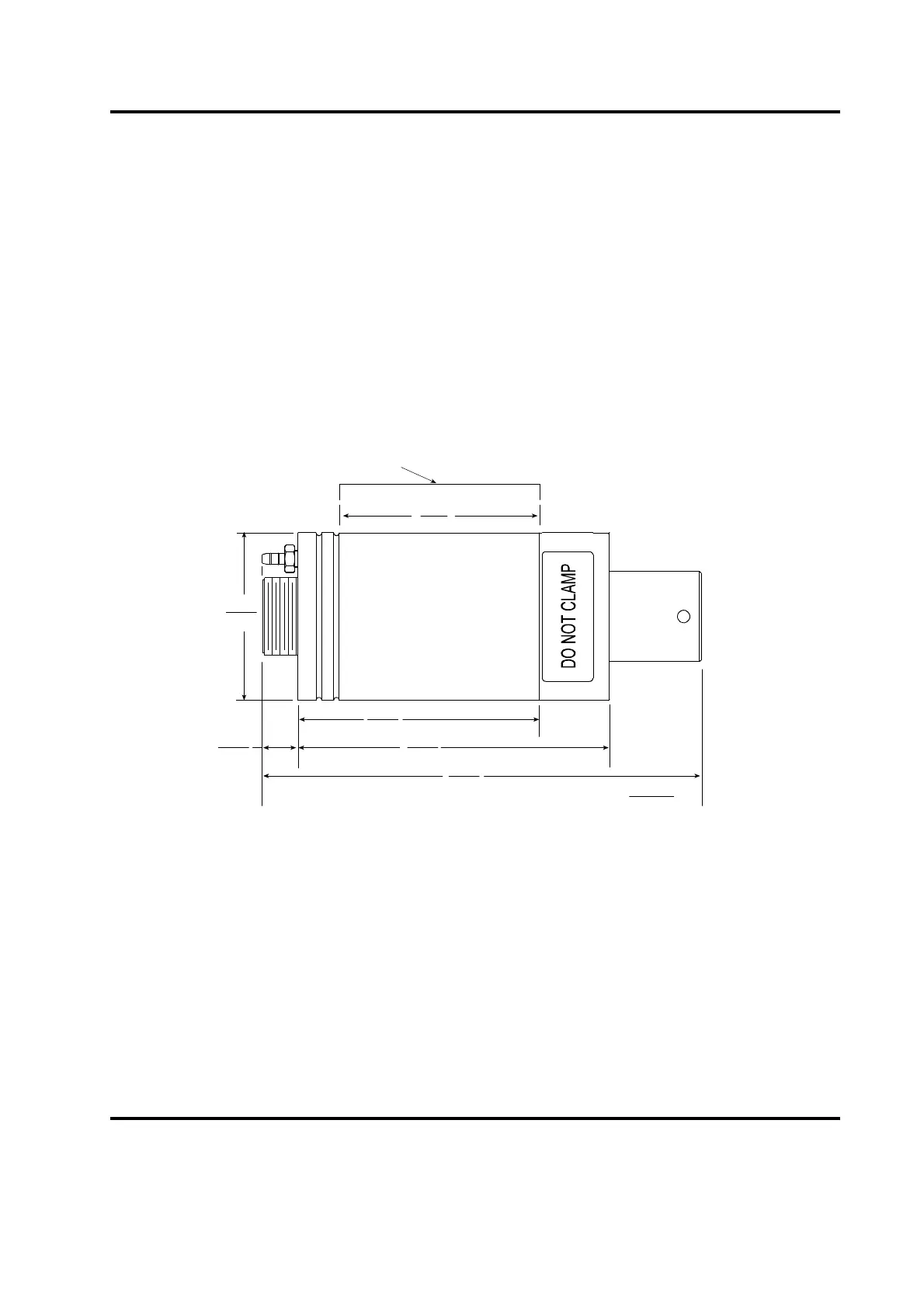

Figure 5.2 20kHz CR20 Converter Dimensions
Grip Area
inches
mm
7.79
198
5.53
143
4.28
109
.63
18
2.97
75.4
3.50
89
To Next Page
