Chapter 5: Technical Specifications
Standard Modules and Components
5-8 011-003-991 EN

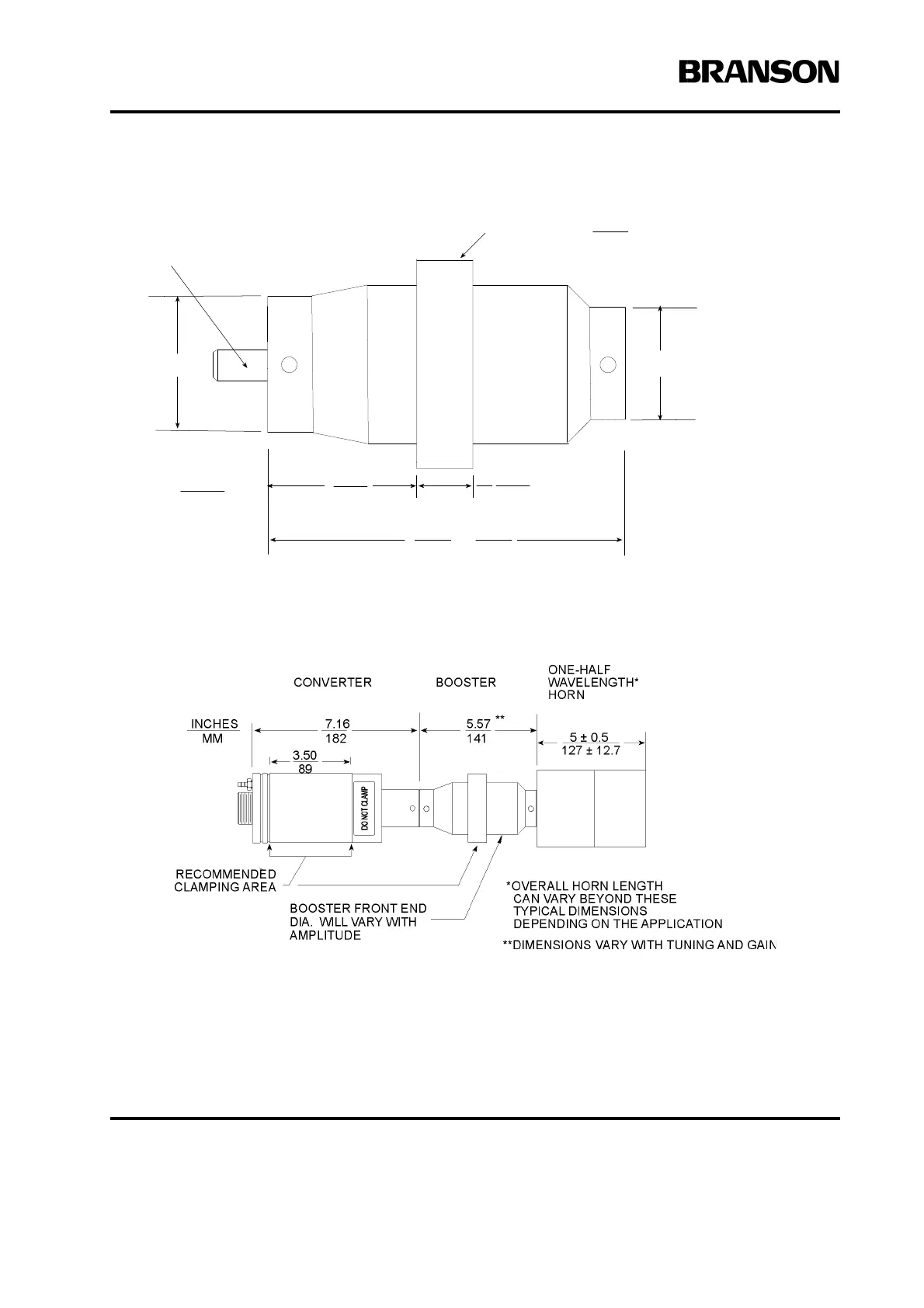

Figure 5.3 20kHz Booster Dimensions
Figure 5.4 20 kHz Converter/Booster/Horn, Typical Dimensions
Variable Variable
.75*
**varies with tuning and gain
*these dimensions do NOT vary
Grip Ring Diameter: 3.25*
1/2 - 20 x 1-1/4 stud (Ti boosters)
1/2 - 20 x 1-1/2 stud (Al boosters)
inches
mm
19.1
83
133 149
5.88**
to
5.25**
2.38*
60.5
