Branson 2000X - Mounting the Stand (Actuator on Hub-Mounted Column)

Chapter 4: Installation and Setup
Installation Steps
4-16 011-003-991 EN

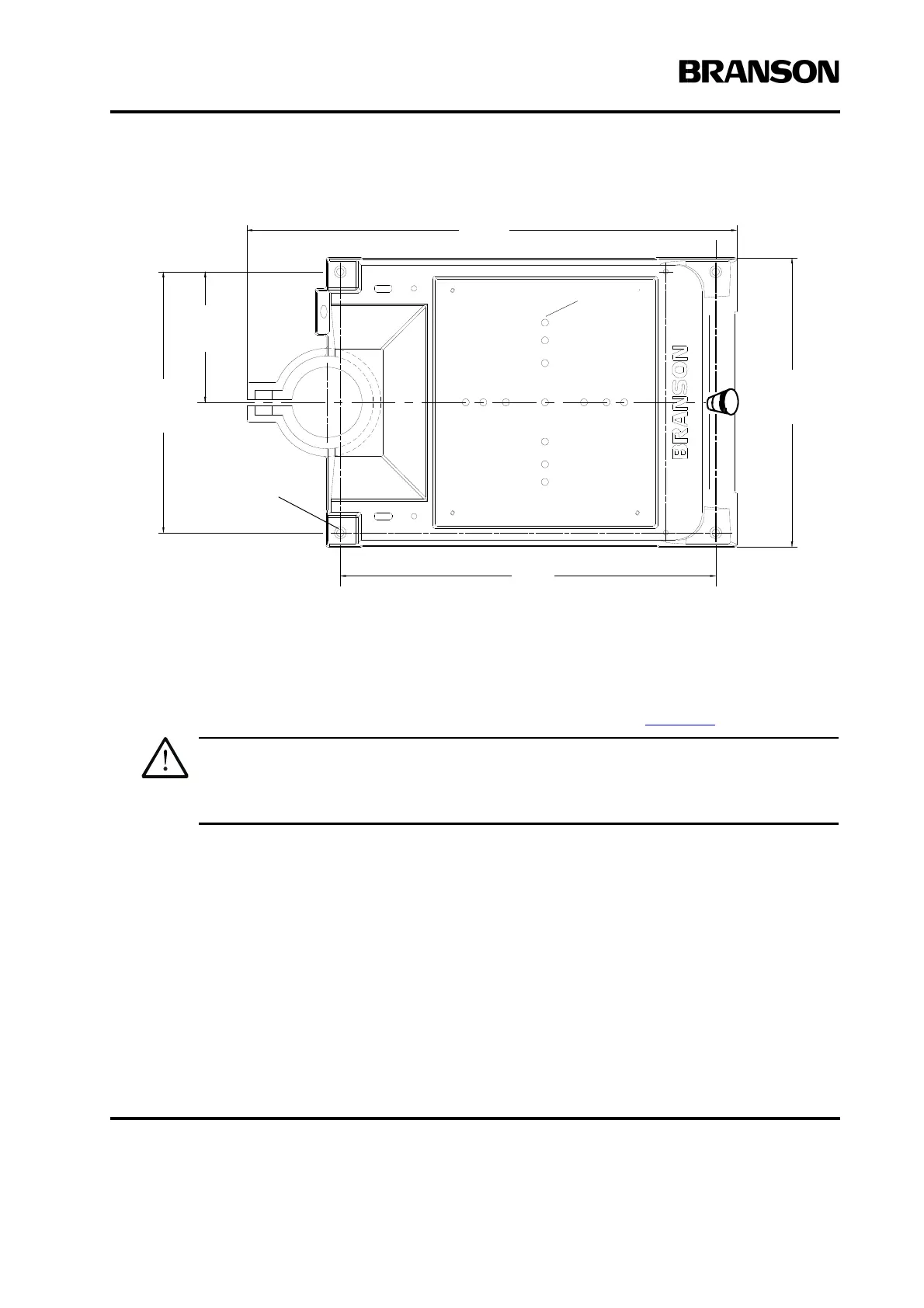

Figure 4.6 Base Mounting Centers
4.5.2 Mounting the Stand (Actuator on Hub-mounted column)
During unpacking, you removed the hub from the column/stand assembly. You must choose a mounting
location for the hub that will support the column and actuator, and provide the hardware to mount it. Four
mounting bolt holes are provided at the corners of the casting, and will accept your 3/8 inch or M10 hard-
ware. Use flat washers against the metal casting to prevent gouging. Refer to Figure 4.7
.
CAUTION
The hub must be installed with its front in the same direction as the front of the actuator. The
column bolts of the hub are found on the rear of the hub. See Figure 6 for mounting details.
21.31 in / 541 mm
Mounting Holes
accept 3/8 inch
or metric M10
cap screws
14.75 in /
375 mm
7.37 in /
187 mm
28.0 in / 711 mm
16.5 in /
419 mm
M10
M
