Branson 2000X - Assembling the Acoustic Stack; (Shown with Rectangular Horn Secured in the Vise.)

2000X energy Power Supply Chapter 4: Installation and Setup
Instruction Manual Assemble the Acoustic Stack
011-003-991 EN 4-41
4.9.4 Assembling the Acoustic Stack
(shown with rectangular horn secured in the vise.)-

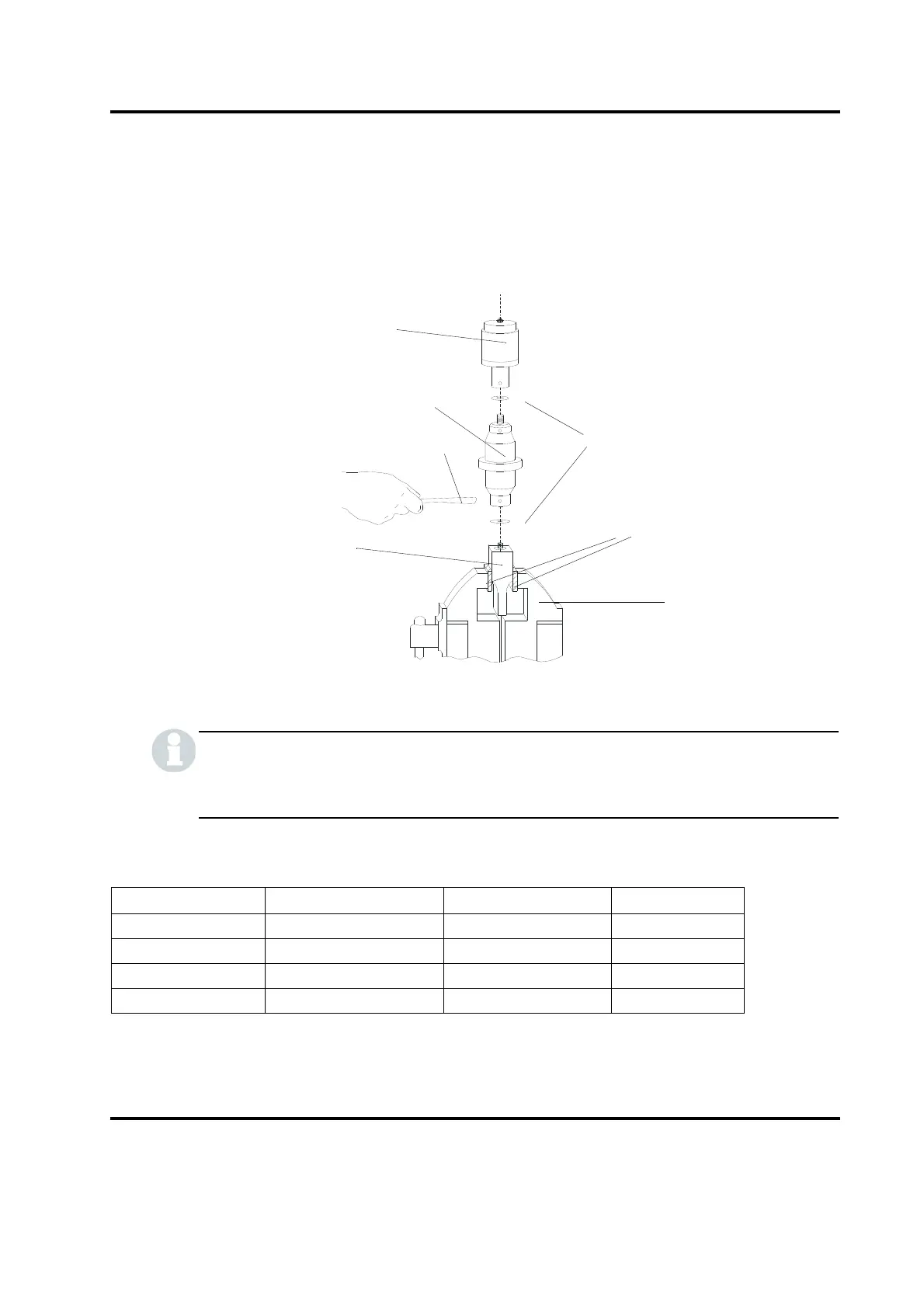

Figure 4.18 Assembling the 20kHz Acoustic Stack
Stack Assembly Torque Tables
NOTE
i
The use of a Branson torque wrench or the equivalent is recommended. P/N 101-063-787 for
15, 20, and 30kHz systems, and 101-063-618 for 40kHz systems.
Table 4.11 Stud Torque Values
* Add a drop of Loctite 290 to the stud. Torque and let cure for 30 minutes before use.
Used On Stud Size Torque EDP #
20 kHz 1/2” x 20 x 1-1/4” 450 in.-lbs, 50.84 Nm. 100-098-370
20 kHz 1/2” x 20 x 1-1/2” 450 in.-lbs, 50.84 Nm. 100-098-123
30 kHz * 3/8” x 24 x 1” 290 in.-lbs, 32.76 Nm. 100-298-170
40 kHz * M8 x 1.25 70 in.-lbs, 7.91 Nm. 100-098-790
Booster
Spanner (provided)
Horn
Vise
Vise Jaw protectors
(aluminum or soft metal)
See Stack Assembly Procedure
Converter
