2000X energy Power Supply Chapter 4: Installation and Setup
Instruction Manual Rack Mount Installation
011-003-991 EN 4-37
4.8 Rack Mount Installation
If the system is Rack Mounted, you need to order the Rack Mount handle kit. The kit includes two rack
mounting handles and two corner pieces, which support the handles and provide the rack mount interface.
The Rack Mount handle kit does NOT support the power supply in the rack. The weight of the
power supply must be supported by integral brackets of the rack itself.
Do not permanently remove the Cover from the Power Supply because it is required for
proper system cooling.

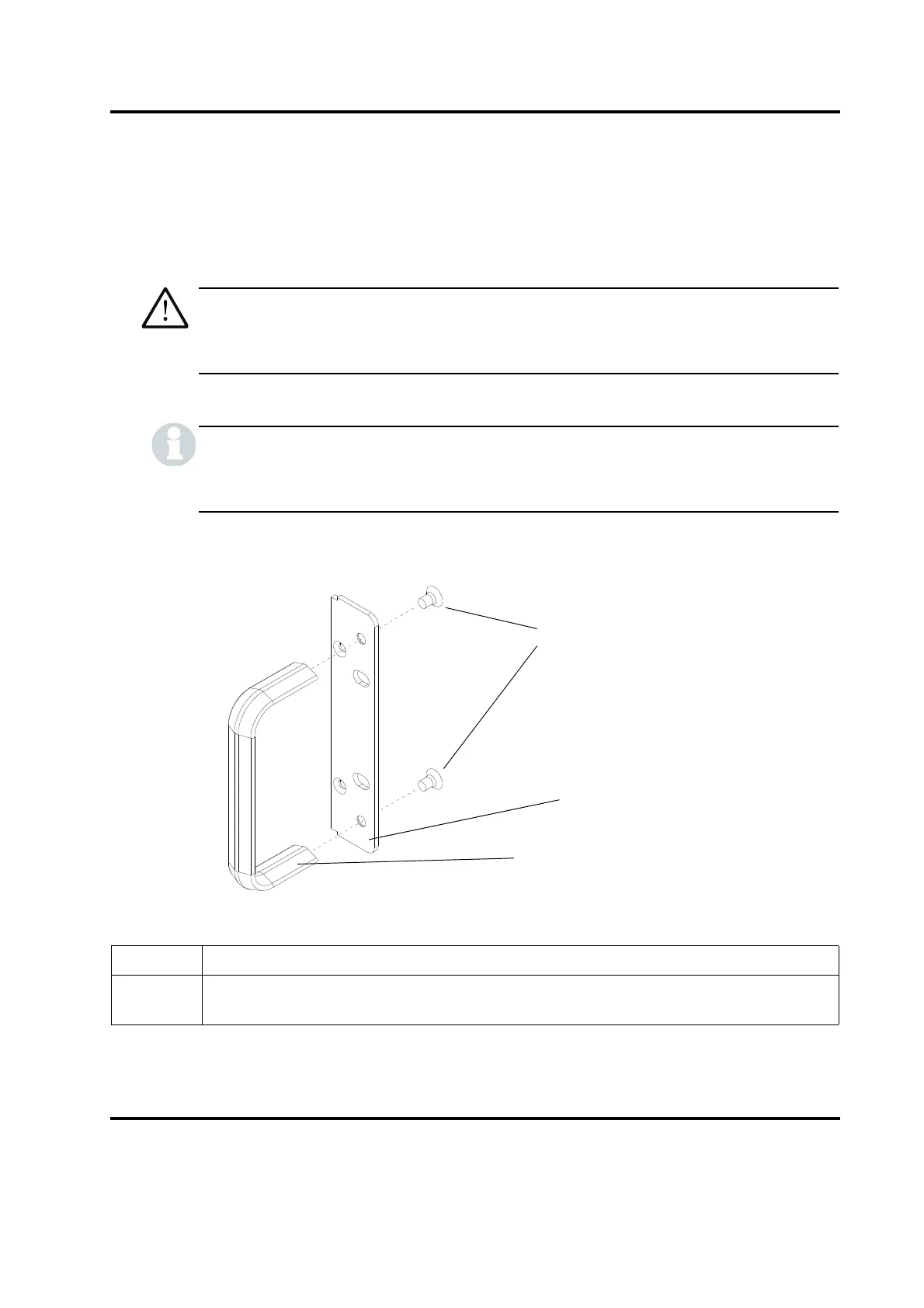

Figure 4.17 Detail of Rack Mount Handle Kit Assembly
Step Procedure
1
Order and obtain the Rack Mount kit for your Power Supply. The brackets in the Kit are
designed for standard 19-inch rack mounting options.
Insert two flat-head screws
through the bracket and
into each handle, as shown
Right-side Rack Mount handle
Rack Mount bracket
(right side shown)
To Next Page
