2000X energy Power Supply Chapter 4: Installation and Setup
Instruction Manual Start Switch Connection (Automation)
011-003-991 EN 4-27
4.6.3 User I/O Interface
The user I/O is a standard interface for automation, provided on the power supply. It provides the ability for
the customer to make their own interface for their automation or special control or reporting needs. The
interface cable has an HD44 female D-shell connection on the rear of the power supply. The electrical inter-
face outputs may be configured for open collector mode or for signal mode (signal voltage levels as indi-
cated), by setting the user I/O DIP switch.
DIP switch SW1 for the user I/O is located next to the J3 on the back of the 2000-series power supply. User
I/O interface cable pinout is listed in Table 4.6
.

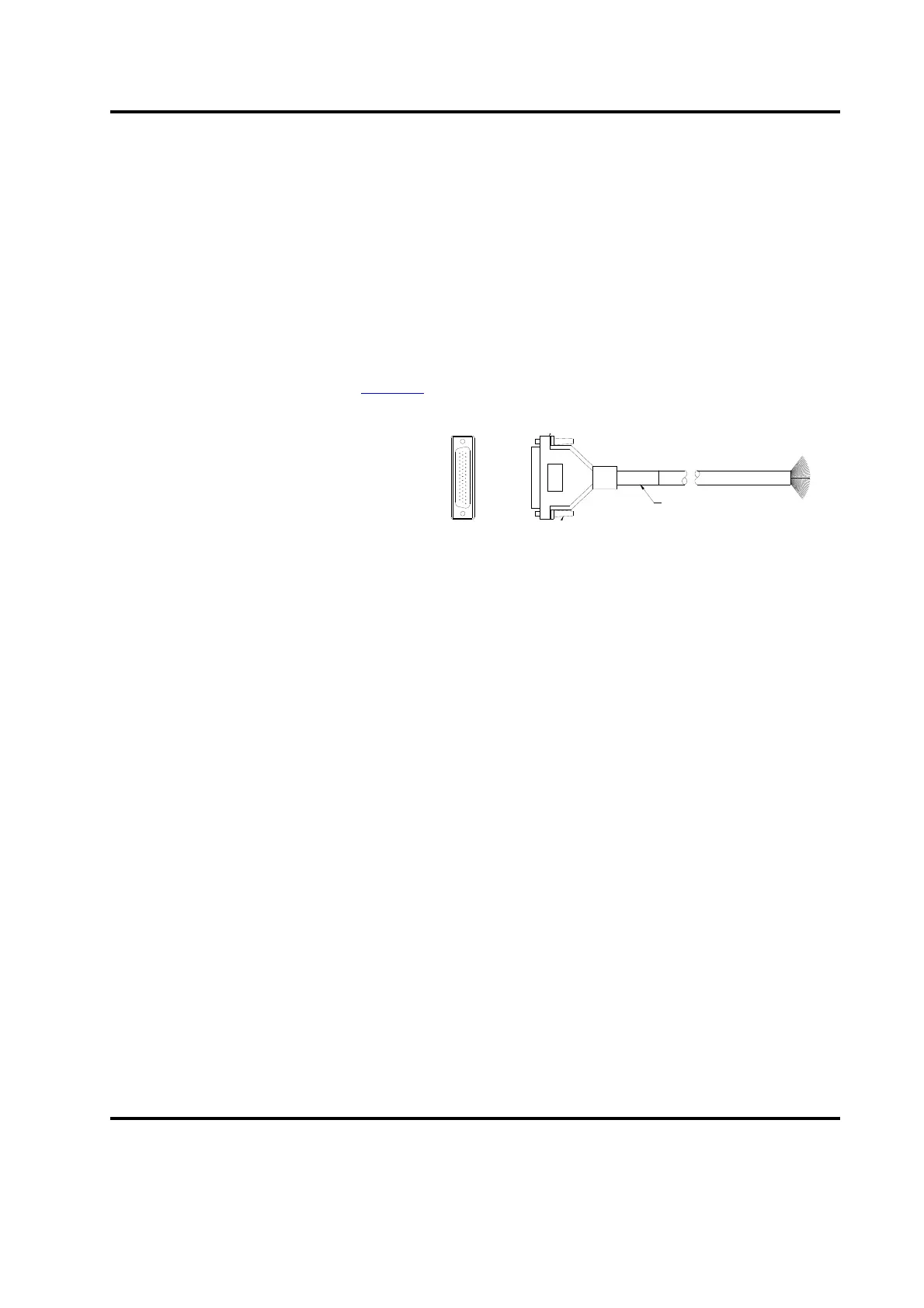

Figure 4.12 User I/O Cable Identification
part number
User I/O Cable
Stripped and tinned one end,
HD-44 male connector other end
(cable length as ordered)
