2000X energy Power Supply Chapter 4: Installation and Setup
Instruction Manual Installing the Ultrasonic Stack in the Actuator
011-003-991 EN 4-43
2. Engage the Emergency Stop.
3. Loosen the four door screws.
4. Pull the door straight off and set it aside.
5. Take the assembled ultrasonic stack and align the ring on the booster just above the support
washer in the carriage. Firmly push the stack into place, with the acorn nut on the top of the con-
verter making contact with the contactor in the top of the carriage.
6. Reinstall the door assembly, and start the four door screws.
7. Align the horn by rotating it, if necessary. Torque the carriage door to 20 in.-lbs to secure the stack.

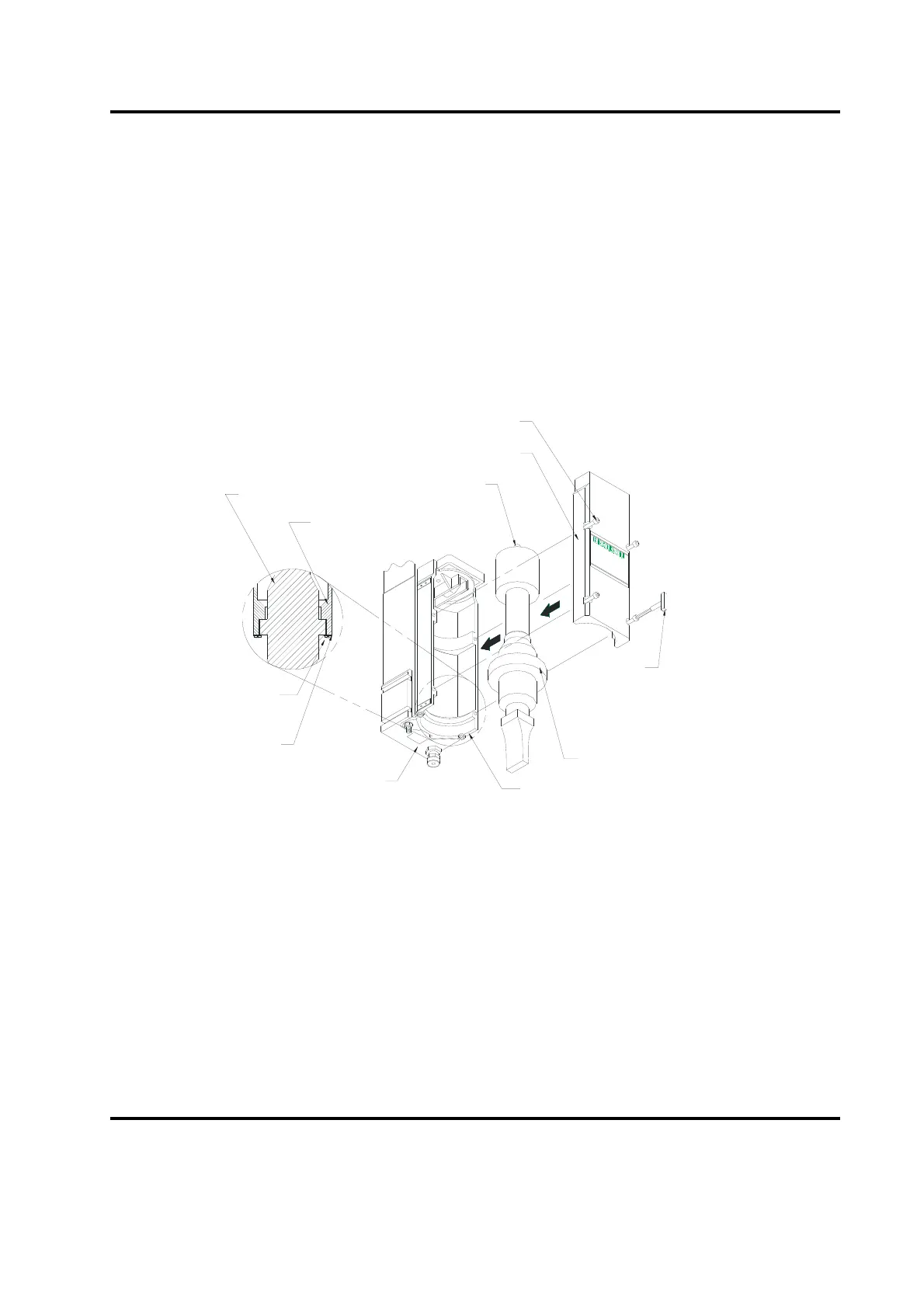

Figure 4.20 Installing a 20kHz Stack in a Branson Actuator
Stack Assembly
Carriage
Support
Washer
Screw
Main Support
Assembly
Hex Screw
Carriage Door
Contact
Terminal
Carriage
Stack Assembly
T-Handle
Wrench
To Next Page
