■ Cleaning of the paper dust cleaning roller
1) Pull the Open lever and open the Top cover. Open the MP cover ASSY.

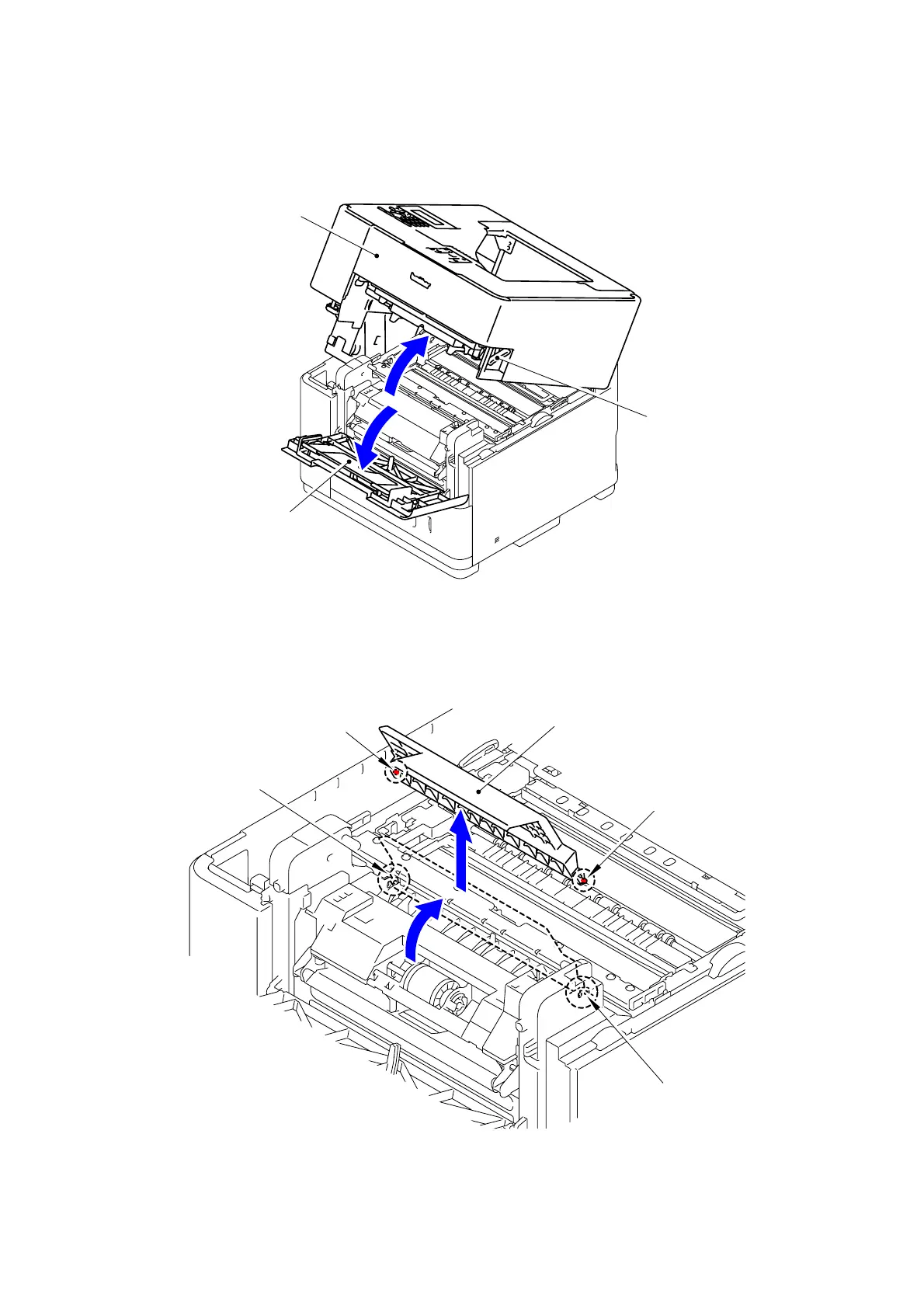

Fig. 2-9
2) Open and remove the Registration outer chute.
Fig. 2-10
Top cover
MP cover ASSY
Open lever
Registration outer chute
Hole
Hole
Boss
Boss
