2-132
Confidential

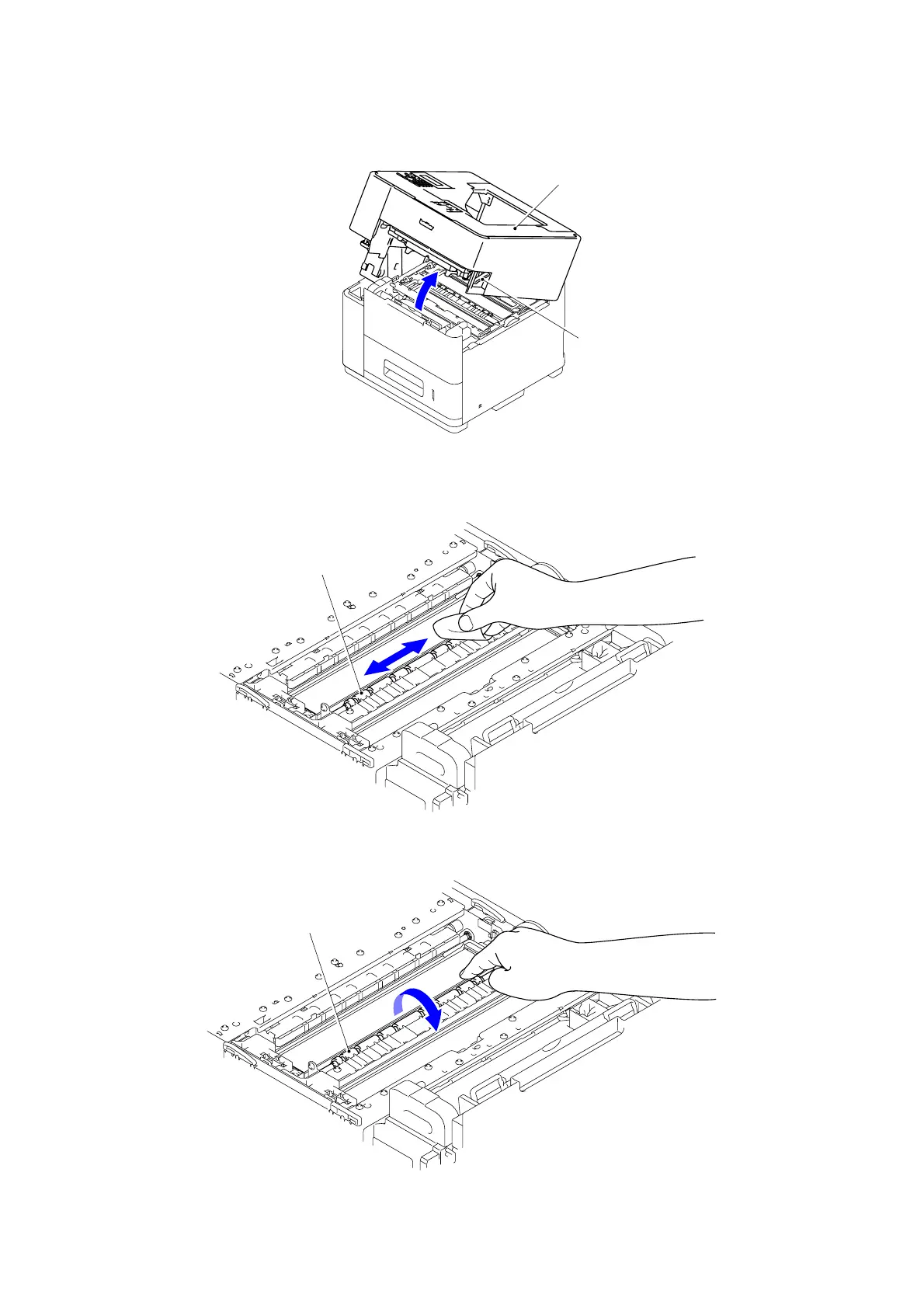

■ Paper feed roller cleaning procedure
1) Pull the Open lever and open the Top cover.
Fig. 2-18
2) Lightly rub the surface of the Paper feed roller with a soft lint-free cloth soaked with
water.
Fig. 2-19
3) Wipe the dirt on the entire surface of the roller as turning the roller to the front.
Fig. 2-20
Open lever
Top c ov e r
Paper feed roller
Paper feed roller
