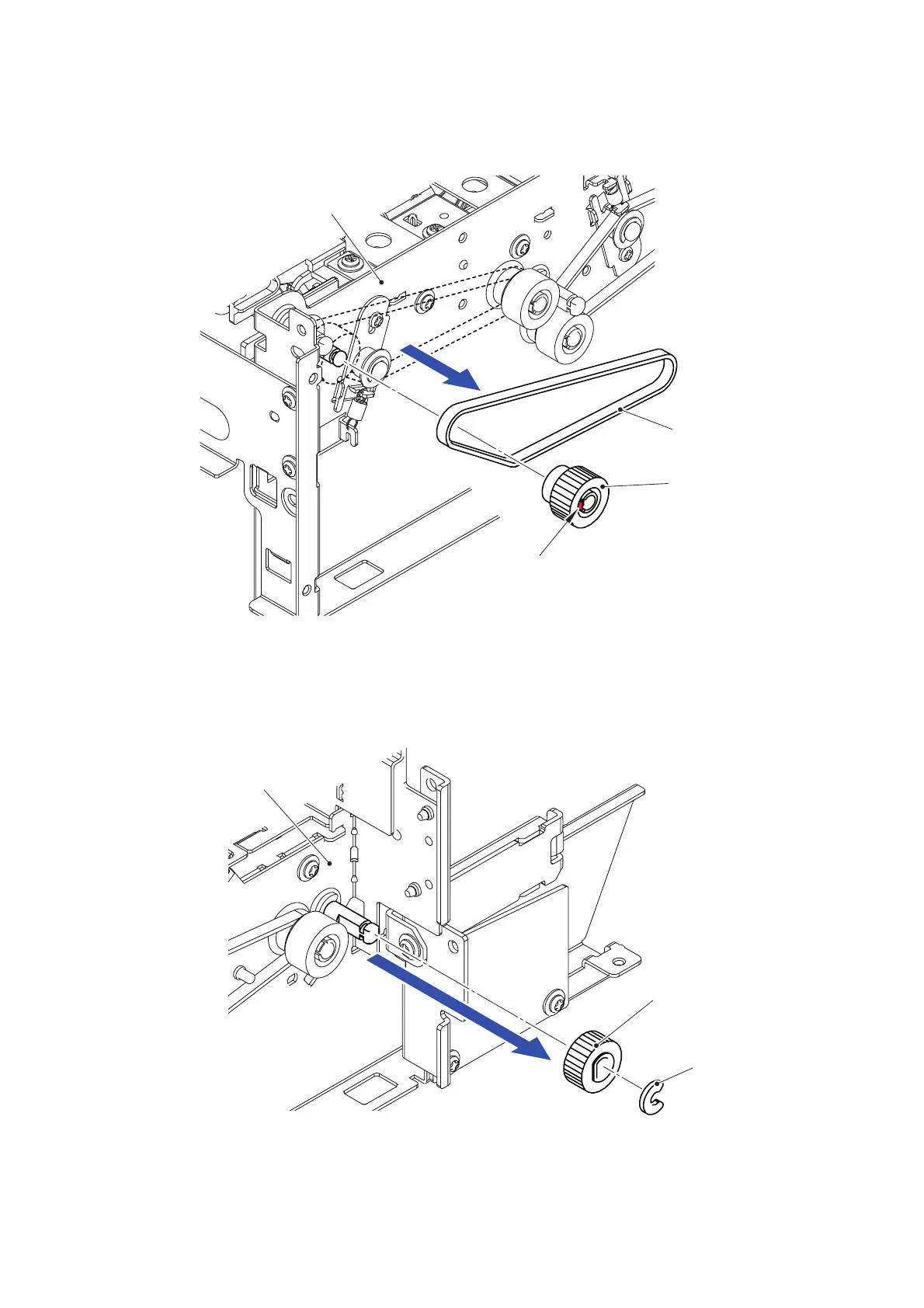

(5) Release the Hook of the Gear pulley 15/20 to remove the Gear pulley 15/20.
(6) Remove the Eject belt 1 from the Stacker frame L.
Fig. 3-232
(7) Remove the Collar 6 to remove the Eject roller 6 gear from the Stacker frame L.
Fig. 3-233
Gear pulley 15/20
Hook
Eject belt 1
Stacker frame L
<Left side>
Eject roller 6 gear
Collar 6
Stacker frame L
<Left side>
