(8) Release the Hook of the Gear pulley 15/20 to remove the Gear pulley 15/20.
(9) Remove the Eject belt 2 from the Stacker frame L.

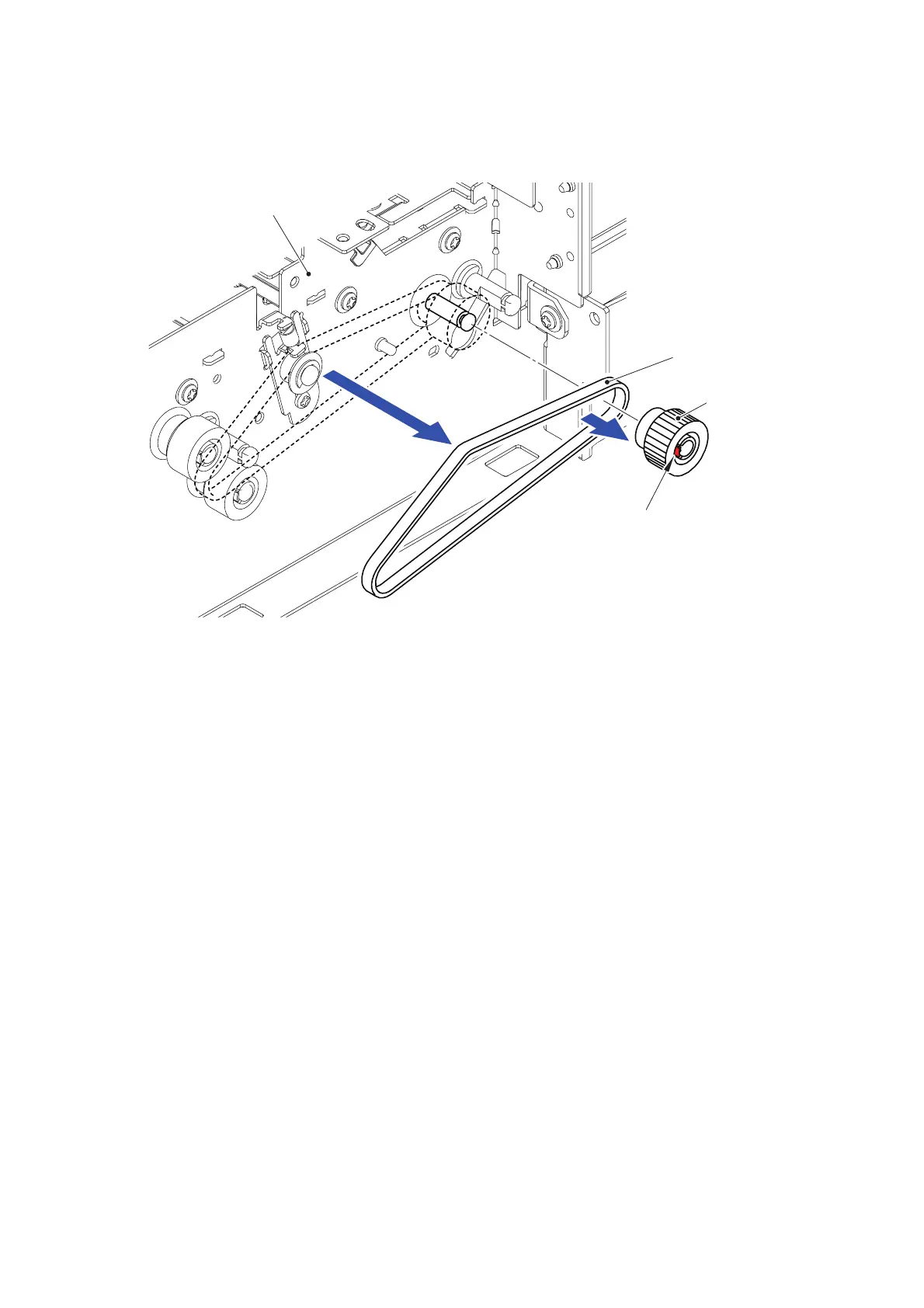

Fig. 3-234
Hook
Eject belt 2
Stacker frame L
8
9
<Left side>
Gear pulley 15/20
