Brother HL-S7000DN - Page 413

5-25
Confidential

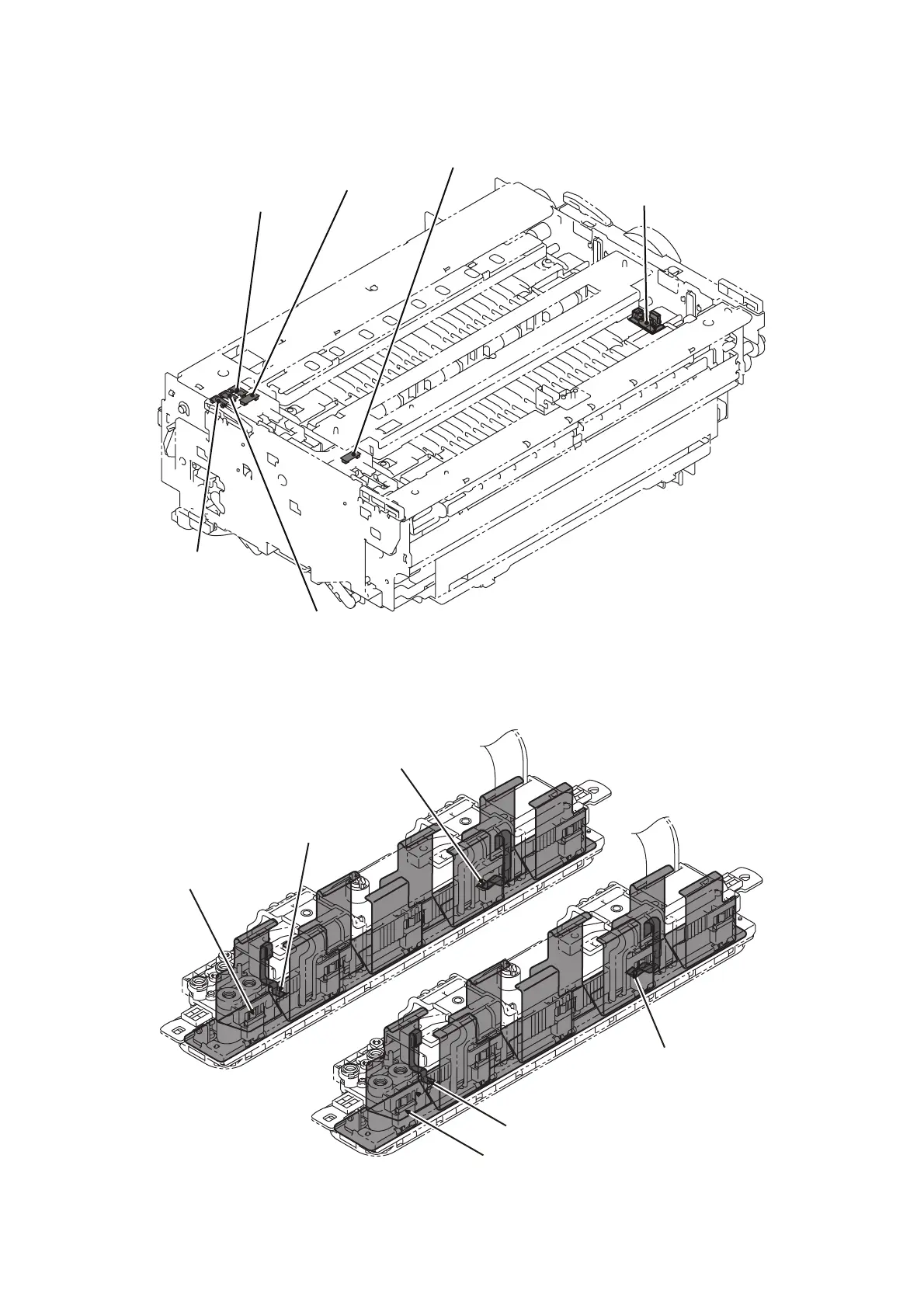

 Platen unit
Fig. 5-9
 Head unit
Fig. 5-10
Platen cap sensor
Ink head wiper sensor
Pre-coat head wiper sensor
Platen drive
Platen print position sensor
Carriage encoder sensor
switching sensor
Ink head VTEMP
Ink head thermistor 1
Ink head thermistor 2
Pre-coat head thermistor 1
Pre-coat head thermistor 2
Pre-coat head VTEMP
