Cisco ASR 1002-X Hardware Installation Guide

The Cisco ASR 1000 Series embedded services processors have the same faceplate and status information
except for the name label, such as Cisco ASR1000-ESP40, Cisco ASR1000-ESP20, Cisco ASR1000-ESP10,
Cisco ASR1000-ESP10-N, and Cisco ASR1000-ESP5.
Note

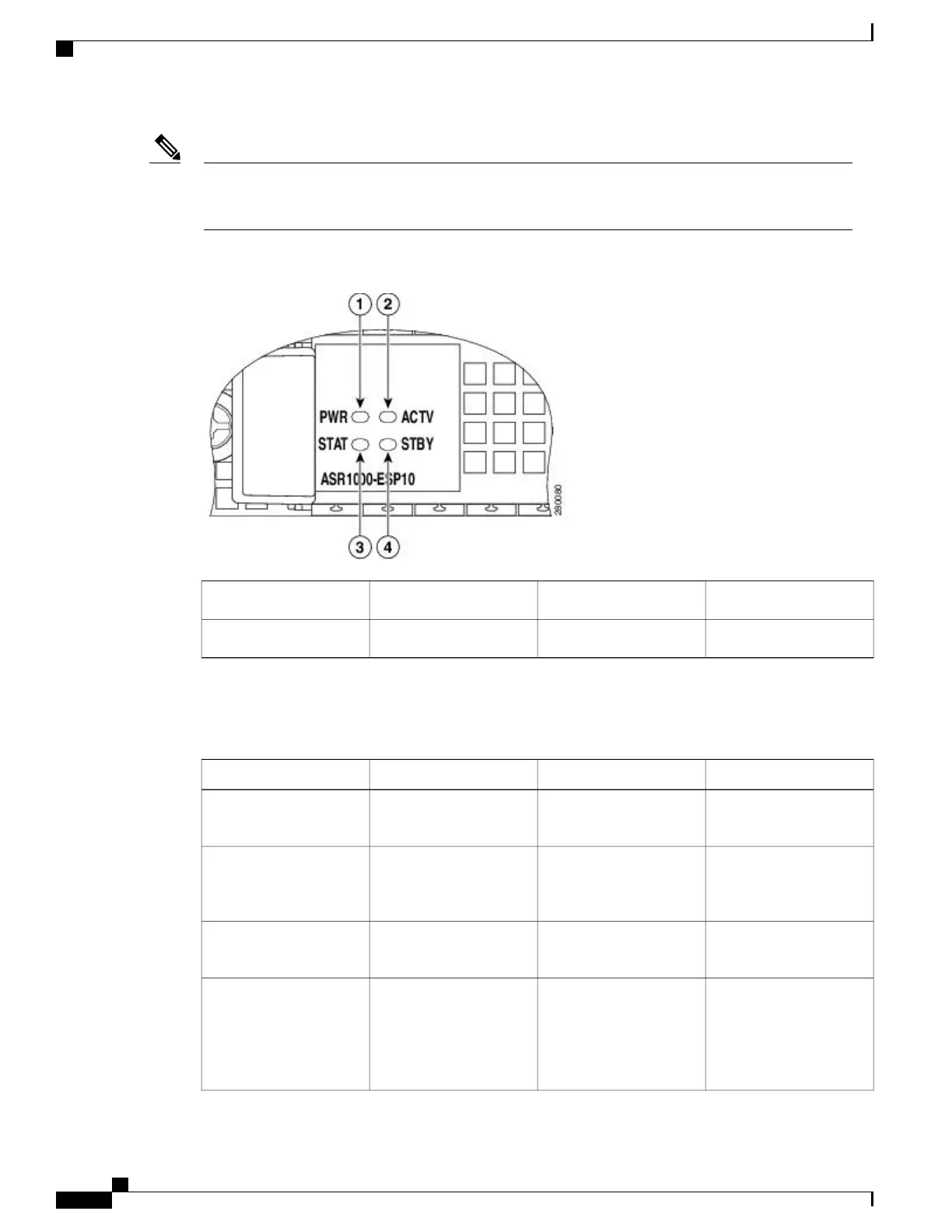

Figure 27: Cisco ASR1000-ESP Faceplate LEDs
STAT—Status LED
3
PWR—Power LED
1
STBY—Standby LED
4
ACTV—Active LED
2
The following table describes the LEDs on the embedded services processors.
Table 37: LEDs on the Embedded Services Processors
Behavior DescriptionColorLEDLED Label
All power requirements
are within specification
Solid greenPowerPWR
The embedded services
processor is not powered
on.
Off
Cisco IOS has
successfully booted.
Solid greenSystem statusSTAT
ROMmon is running or
when the Process
Manager declares that a
critical route processor
process is not running.
Amber
Cisco ASR 1000 Series Router Hardware Installation Guide
98
Cisco ASR 1000 Series Routers Embedded Services Processors
Features of the Cisco ASR 1000 Series Embedded Services Processors

Cisco ASR 1002-X Specifications

General

Form Factor	Rack-mountable
Rack Units	2RU
Integrated Services	Yes
Maximum Memory	16 GB
Built-in Gigabit Ethernet Ports	6
Input Voltage	100-240 VAC
Operating Temperature	32 to 104°F (0 to 40°C)
Redundancy	Power supply redundancy
Network Interface Modules	Up to 4 SPA/SIP slots
Embedded Services Processor (ESP)	ESP-20
Maximum Packet per Second (PPS)	15 Mpps
Height	3.5 inches
Fixed Ports	6 GE ports
Memory	4 GB (default), 16 GB (maximum)
Power Supply	Dual power supplies (AC or DC)
Dimensions (H x W x D)	3.5 x 17.5 x 19.0 in (8.9 x 44.5 x 48.3 cm)
