Cisco ASR 1002-X Hardware Installation Guide

SUMMARY STEPS
1.
Locate the threaded holes on the side of the chassis. Make certain that you hold the front rack-mount
bracket with the ear and holes facing outward and towards the front of the chassis (see the following
image).
2.
Position the front rack-mount bracket top hole with the chassis first top hole behind the side vent holes
(see Figure 41: Attaching the Front Rack-Mount Brackets to the Cisco ASR 1006 Router, on page 150).
3.
Insert and tighten the black screws on one side.
4.
Repeat Step 1 through Step 3 on the other side of the chassis. Use black screws to secure the rack-mount
brackets to the chassis.
5.
Install the chassis in the rack. To install the Cisco ASR 1006 Router in a rack, go to the Installing the
Cisco ASR 1006 Router in a Rack, on page 153.
DETAILED STEPS
Step 1
Locate the threaded holes on the side of the chassis. Make certain that you hold the front rack-mount bracket with the
ear and holes facing outward and towards the front of the chassis (see the following image).

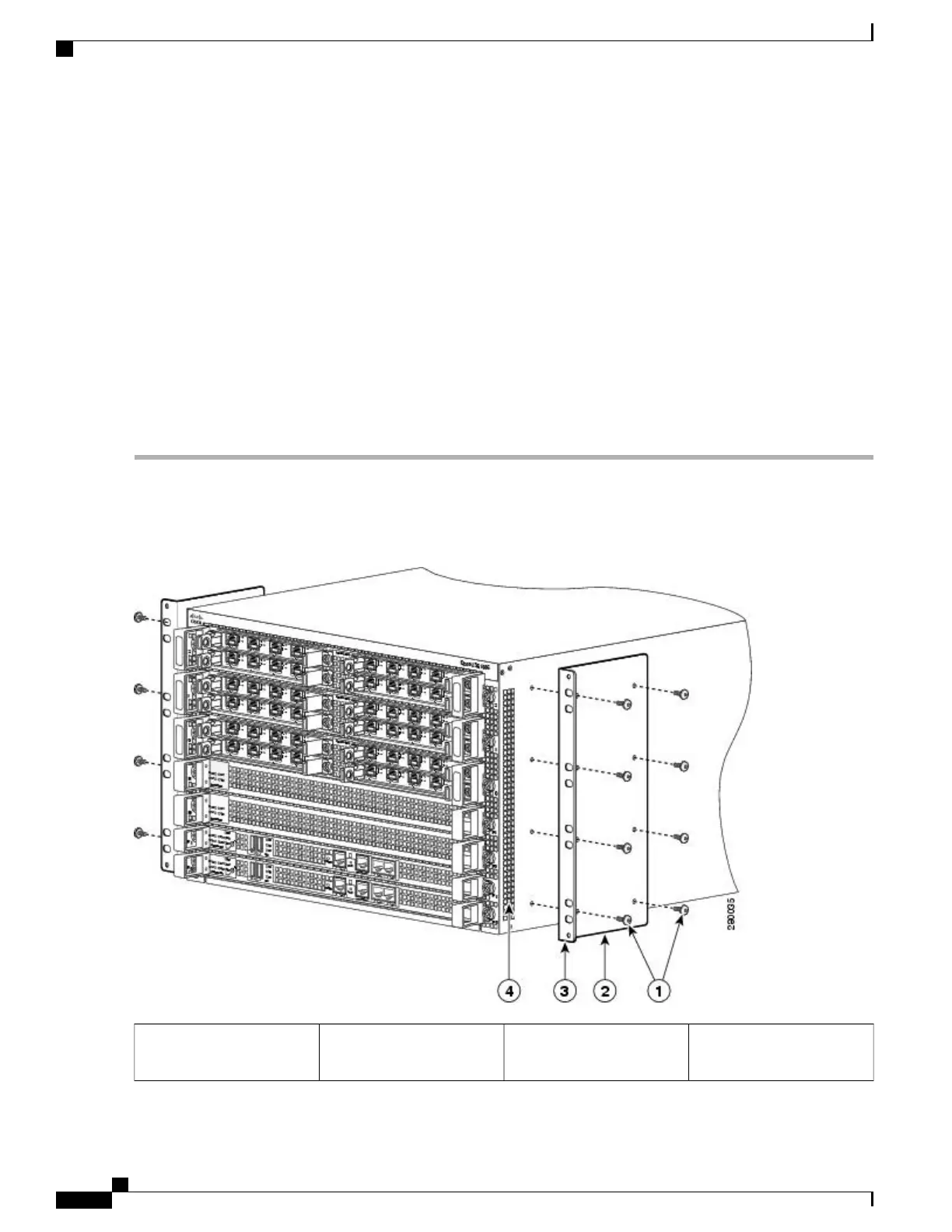

Figure 41: Attaching the Front Rack-Mount Brackets to the Cisco ASR 1006 Router
Front rack-mount bracket ear
and holes
3Front rack-mount bracket
screws
1
Cisco ASR 1000 Series Router Hardware Installation Guide
150
Cisco ASR 1006 Router Overview and Installation
Chassis Front Rack-Mount Brackets

Cisco ASR 1002-X Specifications

General

Form Factor	Rack-mountable
Rack Units	2RU
Integrated Services	Yes
Maximum Memory	16 GB
Built-in Gigabit Ethernet Ports	6
Input Voltage	100-240 VAC
Operating Temperature	32 to 104°F (0 to 40°C)
Redundancy	Power supply redundancy
Network Interface Modules	Up to 4 SPA/SIP slots
Embedded Services Processor (ESP)	ESP-20
Maximum Packet per Second (PPS)	15 Mpps
Height	3.5 inches
Fixed Ports	6 GE ports
Memory	4 GB (default), 16 GB (maximum)
Power Supply	Dual power supplies (AC or DC)
Dimensions (H x W x D)	3.5 x 17.5 x 19.0 in (8.9 x 44.5 x 48.3 cm)
