The following image shows where to attach the rear rack-mount brackets to the Cisco ASR 1006 Router.

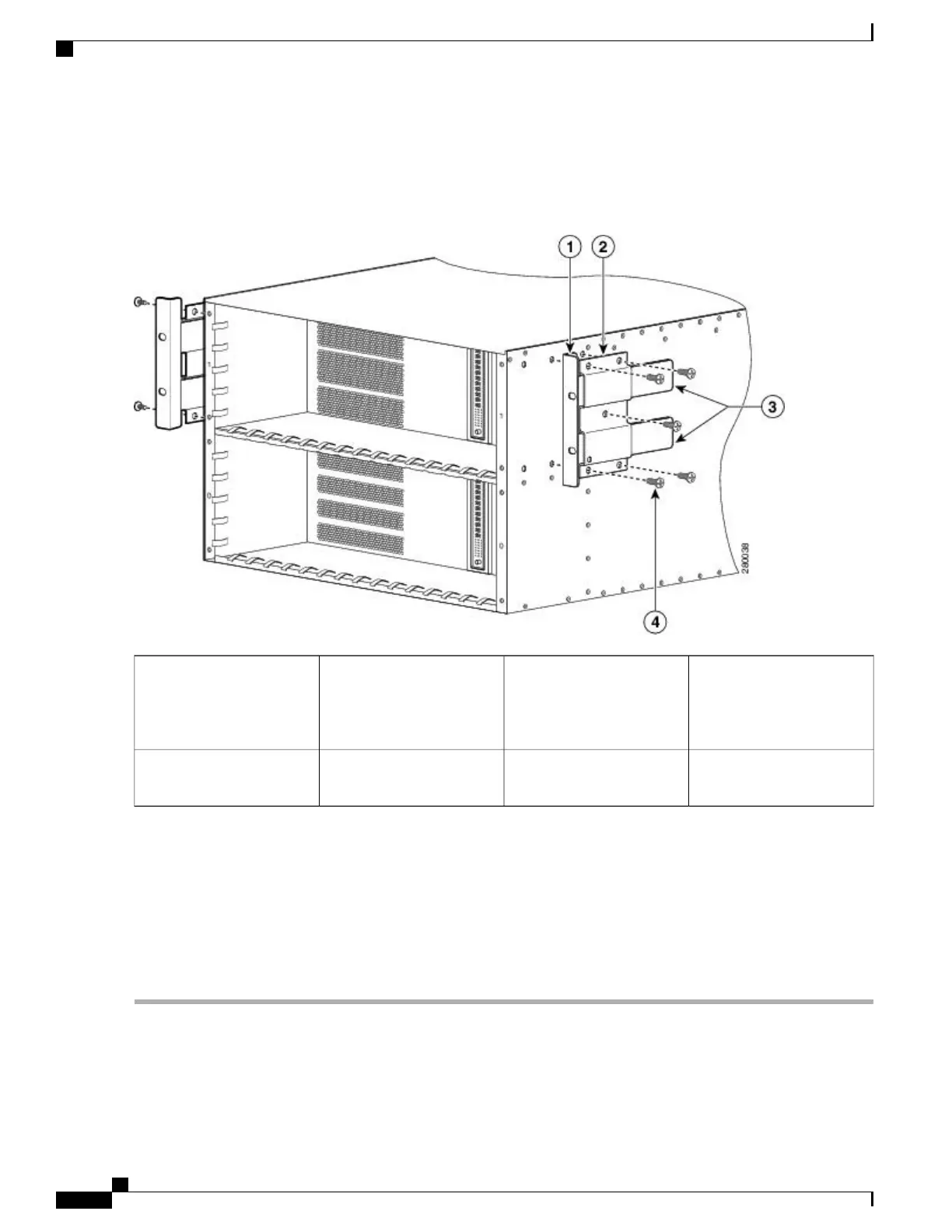

Figure 42: Attaching the Rear Rack-Mount Brackets to the Cisco ASR 1006 Router
Rear rack-mount bracket
components that slide into
rear bracket attached to the
chassis
3Rear rack-mount bracket ear
and holes
1
Rear rack-mount bracket
screws
4Rear rack-mount bracket2
Step 2
Position the rear rack-mount bracket top hole with the chassis second top hole from the back (See Figure 42: Attaching
the Rear Rack-Mount Brackets to the Cisco ASR 1006 Router, on page 152).
Step 3
Insert and tighten the screws on one side.
Step 4
After the bracket is secured to the side of the chassis, slide the two remaining components into the side rack-mount
bracket.
Step 5
Repeat Step 1 through Step 3 on the other side of the chassis. Use all the screws to secure the rear rack-mount brackets
to the chassis.
What to Do Next
This completes the steps for attaching the rear rack-mount brackets to the Cisco ASR 1006 Router.
Cisco ASR 1000 Series Router Hardware Installation Guide
152
Cisco ASR 1006 Router Overview and Installation
Chassis Rear Rack-Mount Brackets

Cisco ASR 1002-X Specifications

General

Form Factor	Rack-mountable
Rack Units	2RU
Integrated Services	Yes
Maximum Memory	16 GB
Built-in Gigabit Ethernet Ports	6
Input Voltage	100-240 VAC
Operating Temperature	32 to 104°F (0 to 40°C)
Redundancy	Power supply redundancy
Network Interface Modules	Up to 4 SPA/SIP slots
Embedded Services Processor (ESP)	ESP-20
Maximum Packet per Second (PPS)	15 Mpps
Height	3.5 inches
Fixed Ports	6 GE ports
Memory	4 GB (default), 16 GB (maximum)
Power Supply	Dual power supplies (AC or DC)
Dimensions (H x W x D)	3.5 x 17.5 x 19.0 in (8.9 x 44.5 x 48.3 cm)
