Cisco ASR 1002-X Hardware Installation Guide

The following shows the various parts of the Cisco ASR 1002 Router AC power supply.

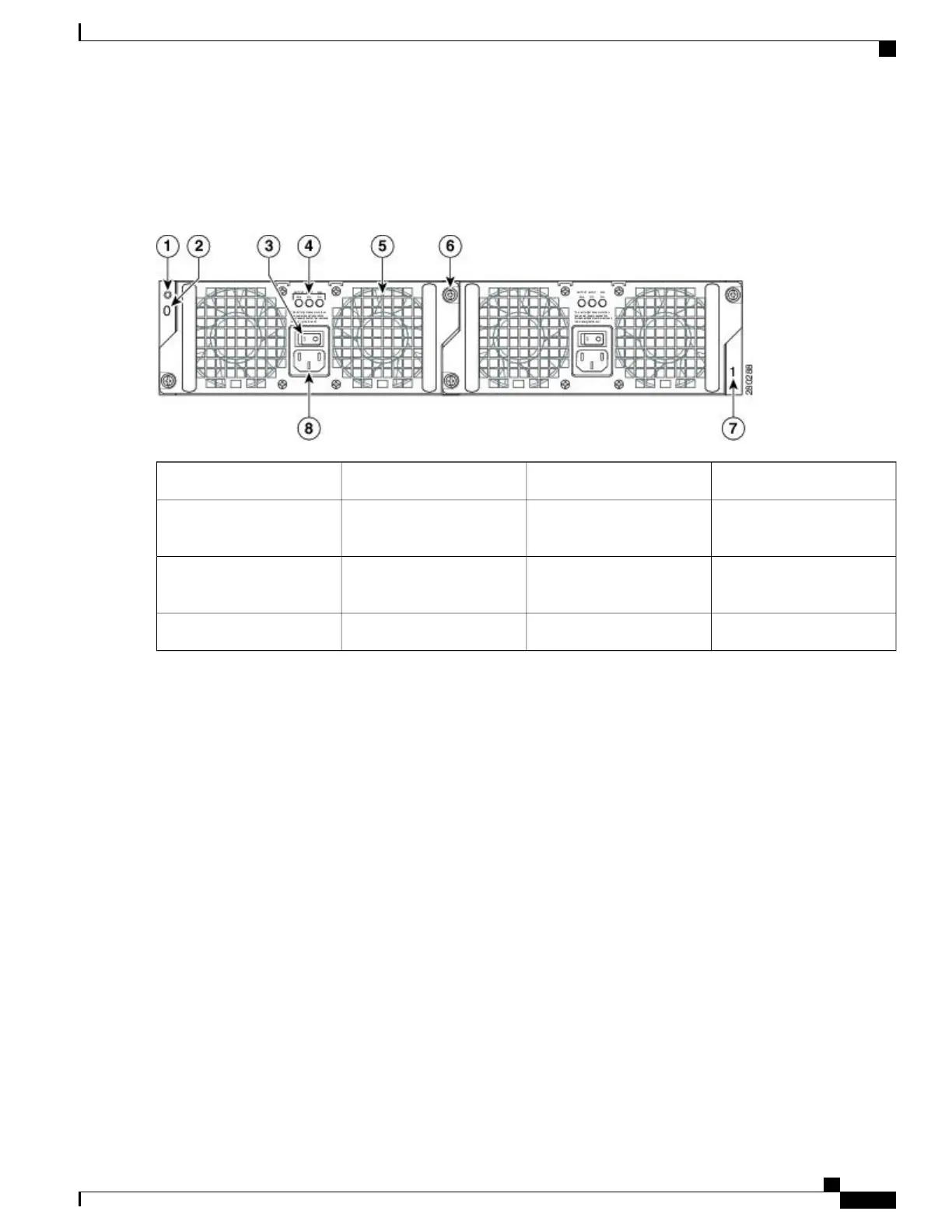

Figure 100: Cisco ASR 1002 Router AC Power Supply Labels
AC power supply fan5Chassis ESD socket1
AC power supply captive
installation screw
6AC power supply slot
number 0
2
AC power supply slot
number 1
7AC power supply On (|) /Off
(O) switch
3
AC power inlet8AC power supply LEDs4
Step 2
Insert the AC power cable into the power supply AC inlet.
Step 3
To ensure that the AC power cord does not interfere with other cables or wires, dress the AC power cable in one of the
following ways.
Cisco ASR 1000 Series Router Hardware Installation Guide
257
Cisco ASR 1002 Router Overview and Installation
Connecting AC Input Power to Cisco ASR 1002 Router

Cisco ASR 1002-X Specifications

General

Form Factor	Rack-mountable
Rack Units	2RU
Integrated Services	Yes
Maximum Memory	16 GB
Built-in Gigabit Ethernet Ports	6
Input Voltage	100-240 VAC
Operating Temperature	32 to 104°F (0 to 40°C)
Redundancy	Power supply redundancy
Network Interface Modules	Up to 4 SPA/SIP slots
Embedded Services Processor (ESP)	ESP-20
Maximum Packet per Second (PPS)	15 Mpps
Height	3.5 inches
Fixed Ports	6 GE ports
Memory	4 GB (default), 16 GB (maximum)
Power Supply	Dual power supplies (AC or DC)
Dimensions (H x W x D)	3.5 x 17.5 x 19.0 in (8.9 x 44.5 x 48.3 cm)
