a) Leave a small service loop in the AC power cord from the inlet and then secure the power cord through the AC power
supply handle as shown in the Connecting AC Input Power to Cisco ASR 1002 router image. Alternatively, proceed
to Step b.

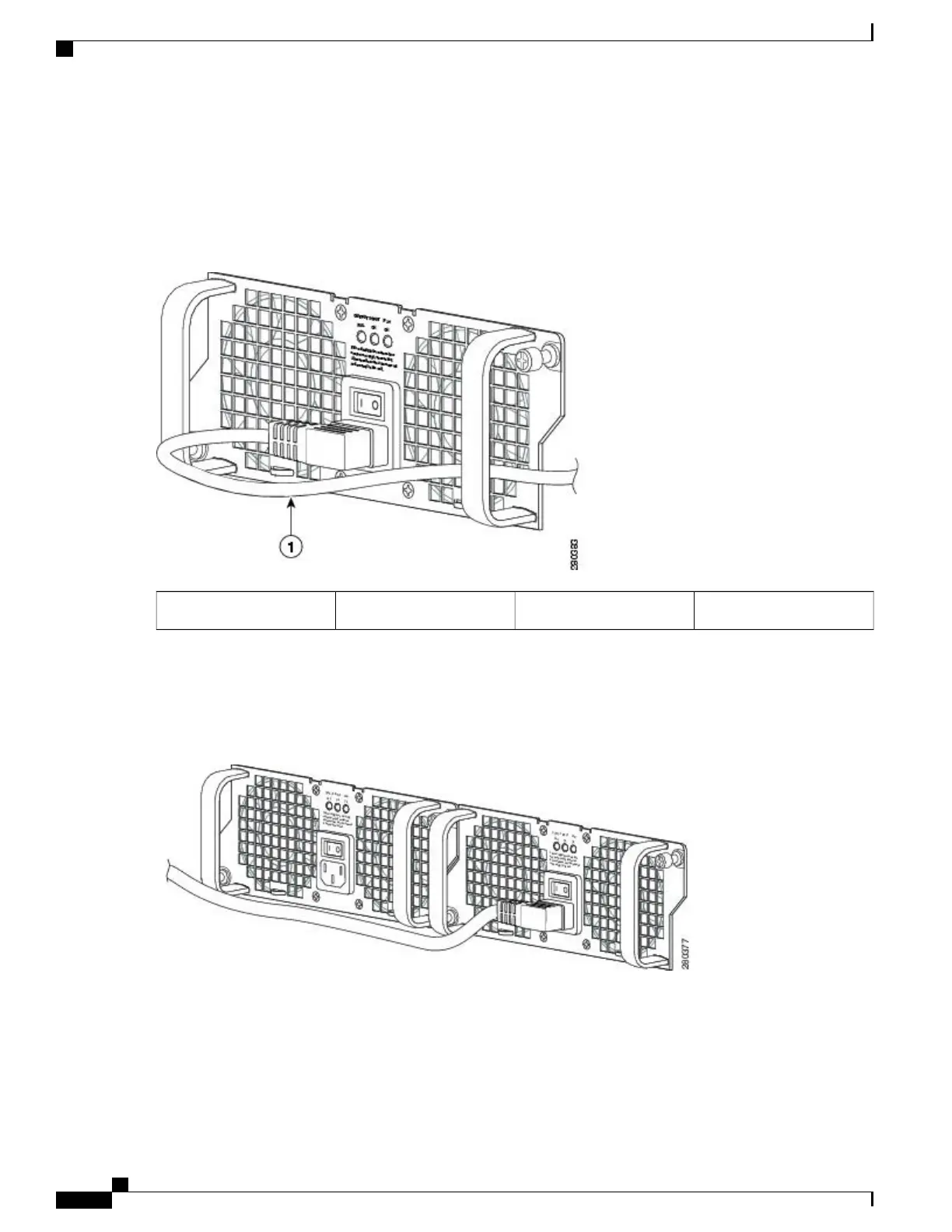

Figure 101: Positioning Cisco ASR 1002 Router AC Power Supply and Cord in Slot 1
AC power cord1
b) Take the power cord and run it below the handles of the right and left power supplies. Make sure the power cord is
hanging loose so that it will not be disconnected from the AC power inlet as shown in the following image.
Figure 102: Cisco ASR 1002 Router AC Power Supply in Slot 0 and Slot 1 With Power Cord
Cisco ASR 1000 Series Router Hardware Installation Guide
258
Cisco ASR 1002 Router Overview and Installation
Connecting AC Input Power to Cisco ASR 1002 Router

Cisco ASR 1002-X Specifications

General

Form Factor	Rack-mountable
Rack Units	2RU
Integrated Services	Yes
Maximum Memory	16 GB
Built-in Gigabit Ethernet Ports	6
Input Voltage	100-240 VAC
Operating Temperature	32 to 104°F (0 to 40°C)
Redundancy	Power supply redundancy
Network Interface Modules	Up to 4 SPA/SIP slots
Embedded Services Processor (ESP)	ESP-20
Maximum Packet per Second (PPS)	15 Mpps
Height	3.5 inches
Fixed Ports	6 GE ports
Memory	4 GB (default), 16 GB (maximum)
Power Supply	Dual power supplies (AC or DC)
Dimensions (H x W x D)	3.5 x 17.5 x 19.0 in (8.9 x 44.5 x 48.3 cm)
