Cisco ASR 1002-X Hardware Installation Guide

Do not install wire into the terminal block that has not had its insulation removed.Caution

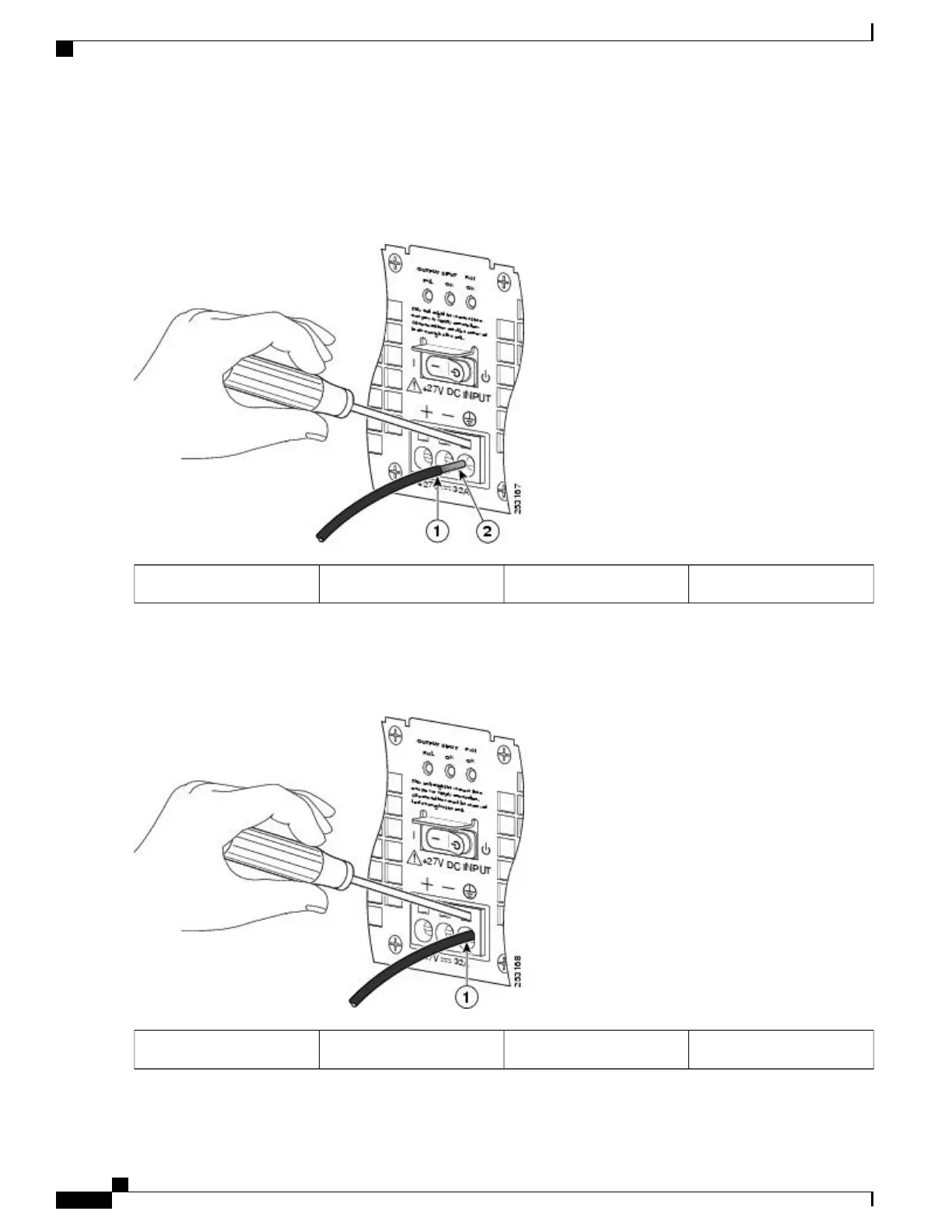

Figure 109: Cisco ASR 1002 Router +24 VDC Power Supply Lead Wire Inserted into Terminal Block
Copper wire2Lead wire insulation1
The follwing image shows the lead wire fully inserted.
Figure 110: Cisco ASR 1002 Router +24 VDC Power Supply Lead Wire Fully Inserted
——
Fully-inserted lead wire1
Cisco ASR 1000 Series Router Hardware Installation Guide
268
Cisco ASR 1002 Router Overview and Installation
Connecting Cisco 24 VDC Power Supply

Cisco ASR 1002-X Specifications

General

Form Factor	Rack-mountable
Rack Units	2RU
Integrated Services	Yes
Maximum Memory	16 GB
Built-in Gigabit Ethernet Ports	6
Input Voltage	100-240 VAC
Operating Temperature	32 to 104°F (0 to 40°C)
Redundancy	Power supply redundancy
Network Interface Modules	Up to 4 SPA/SIP slots
Embedded Services Processor (ESP)	ESP-20
Maximum Packet per Second (PPS)	15 Mpps
Height	3.5 inches
Fixed Ports	6 GE ports
Memory	4 GB (default), 16 GB (maximum)
Power Supply	Dual power supplies (AC or DC)
Dimensions (H x W x D)	3.5 x 17.5 x 19.0 in (8.9 x 44.5 x 48.3 cm)
