SUMMARY STEPS
1.
Use the wire stripper to strip one end of the AWG #6 wire approximately 0.75 inches (19.05 mm).
2.
Insert the AWG #6 wire into the wire receptacle on the grounding lug as shown in the following image.
3.
Use the manufacturerss recommended crimping tool to carefully crimp the wire receptacle around the
wire; this step is required to ensure a proper mechanical connection.
4.
Locate the chassis ground connector on the side of your chassis as shown in the following imave.
5.
Insert the two screws through the holes in the grounding lug as shown in Figure 134: Attaching a Grounding
Lug to the Chassis Ground Connector, on page 304.
6.
Use the Number 2 Phillips screwdriver to carefully tighten the screws until the grounding lug is held firmly
to the chassis. Do not overtighten the screws.
7.
Connect the opposite end of the ground wire to the appropriate grounding point at your site to ensure an
adequate chassis ground.
DETAILED STEPS
Step 1
Use the wire stripper to strip one end of the AWG #6 wire approximately 0.75 inches (19.05 mm).
Step 2
Insert the AWG #6 wire into the wire receptacle on the grounding lug as shown in the following image.

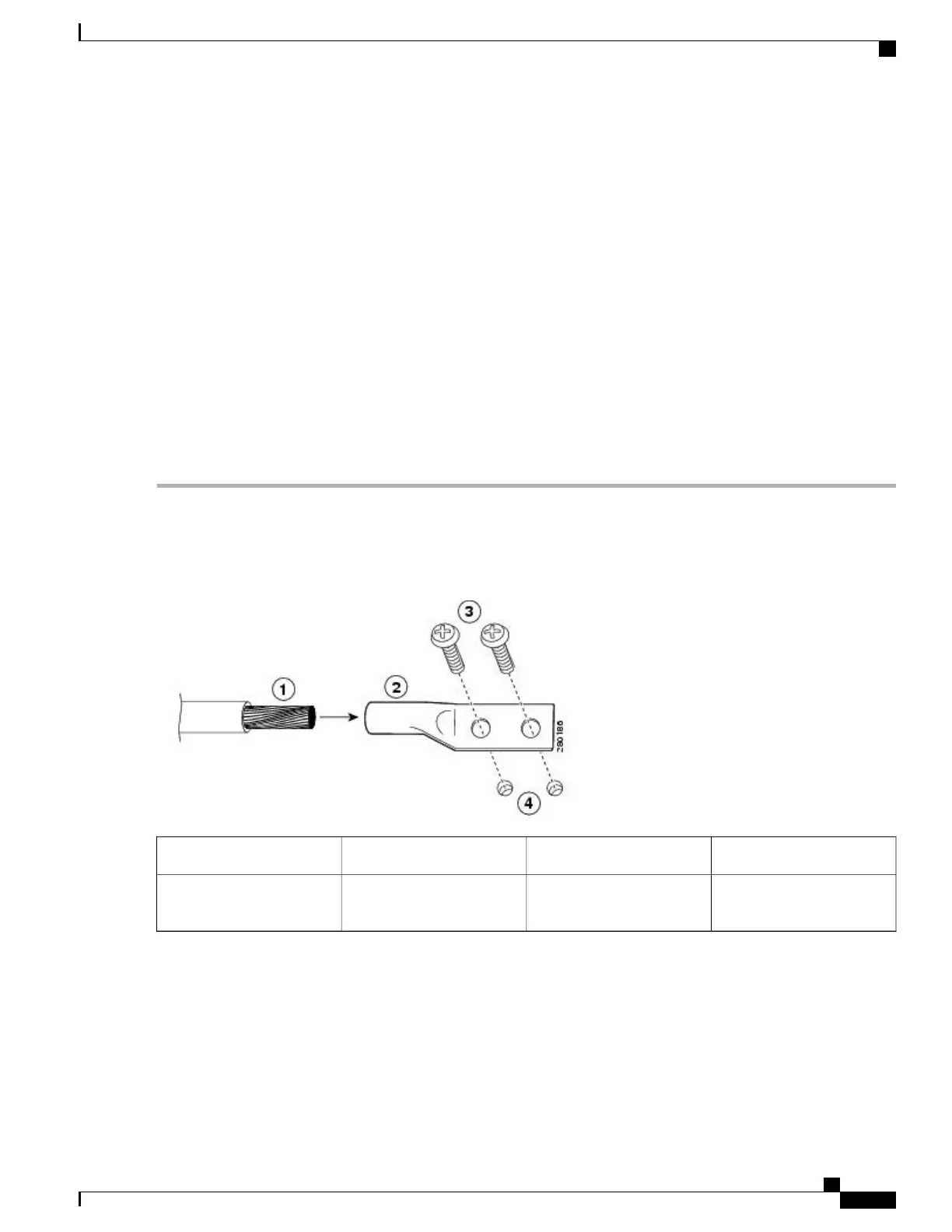

Figure 133: Attaching the Ground Wire to the Grounding Lug
Ground lug screws3Ground wire1
Chassis ground connector
holes
4Grounding lug2
Cisco ASR 1000 Series Router Hardware Installation Guide
303
Cisco ASR 1002-F Router Overview and Installation
Attaching a Chassis Ground Connection
