Cisco ASR 1002-X Hardware Installation Guide

Step 3
Use the manufacturers’s recommended crimping tool to carefully crimp the wire receptacle around the wire; this step is
required to ensure a proper mechanical connection.
Step 4
Locate the chassis ground connector on the side of your chassis as shown in the following imave.
Step 5
Insert the two screws through the holes in the grounding lug as shown in Figure 134: Attaching a Grounding Lug to the
Chassis Ground Connector, on page 304.

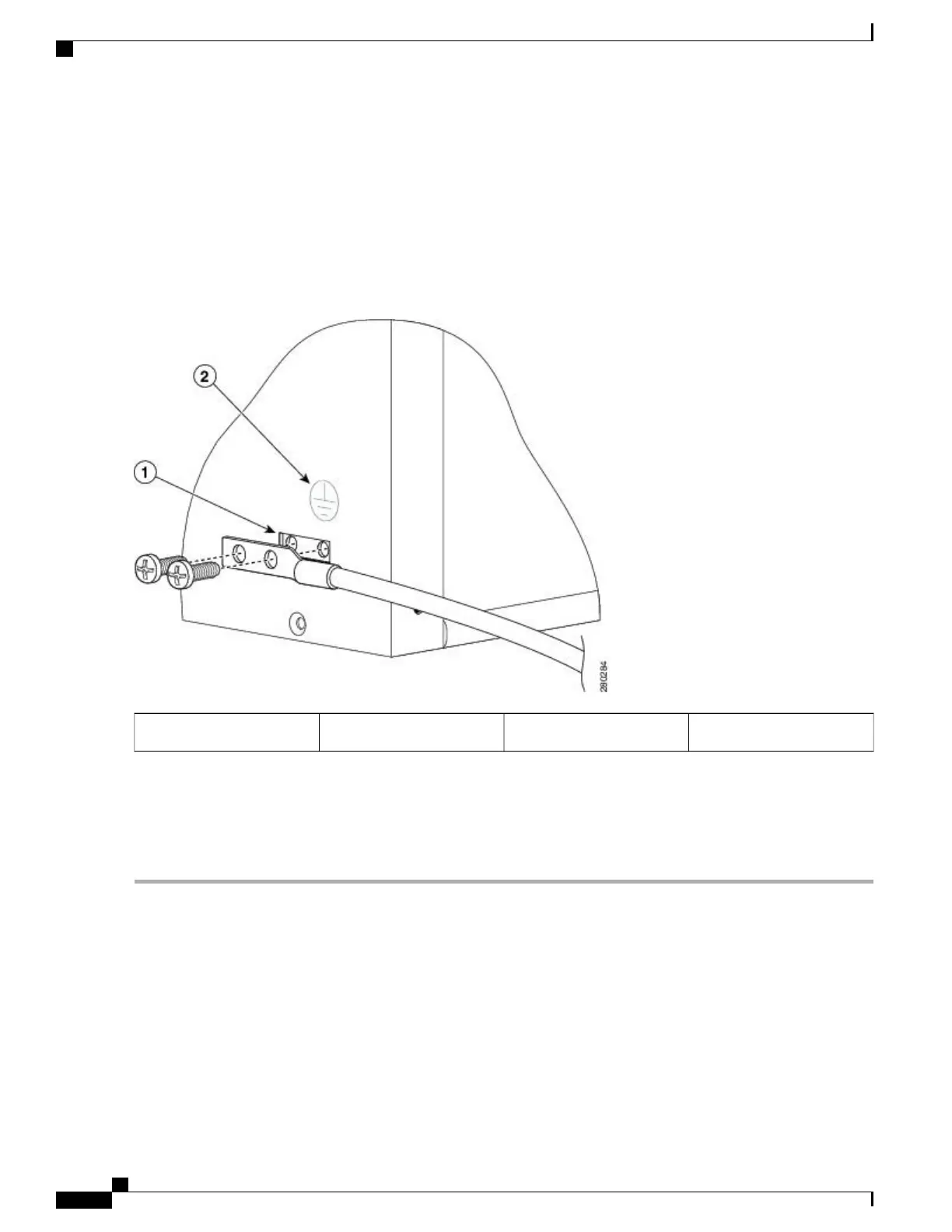

Figure 134: Attaching a Grounding Lug to the Chassis Ground Connector
Ground symbol2Chassis ground connector1
Step 6
Use the Number 2 Phillips screwdriver to carefully tighten the screws until the grounding lug is held firmly to the chassis.
Do not overtighten the screws.
Step 7
Connect the opposite end of the ground wire to the appropriate grounding point at your site to ensure an adequate chassis
ground.
What to Do Next
This completes the procedure for attaching a chassis ground connection. Go to the following cabling sections
for information on attaching cables.
Cisco ASR 1000 Series Router Hardware Installation Guide
304
Cisco ASR 1002-F Router Overview and Installation
Attaching a Chassis Ground Connection

Cisco ASR 1002-X Specifications

General

Form Factor	Rack-mountable
Rack Units	2RU
Integrated Services	Yes
Maximum Memory	16 GB
Built-in Gigabit Ethernet Ports	6
Input Voltage	100-240 VAC
Operating Temperature	32 to 104°F (0 to 40°C)
Redundancy	Power supply redundancy
Network Interface Modules	Up to 4 SPA/SIP slots
Embedded Services Processor (ESP)	ESP-20
Maximum Packet per Second (PPS)	15 Mpps
Height	3.5 inches
Fixed Ports	6 GE ports
Memory	4 GB (default), 16 GB (maximum)
Power Supply	Dual power supplies (AC or DC)
Dimensions (H x W x D)	3.5 x 17.5 x 19.0 in (8.9 x 44.5 x 48.3 cm)
