——LINK LED—Indicates
MGMT Ethernet port
activity
6
•
IDC-4XT3
IDC-4XT3 can support up to four unchannelized DS3 (44.736 Mbps) ports (see the following image).

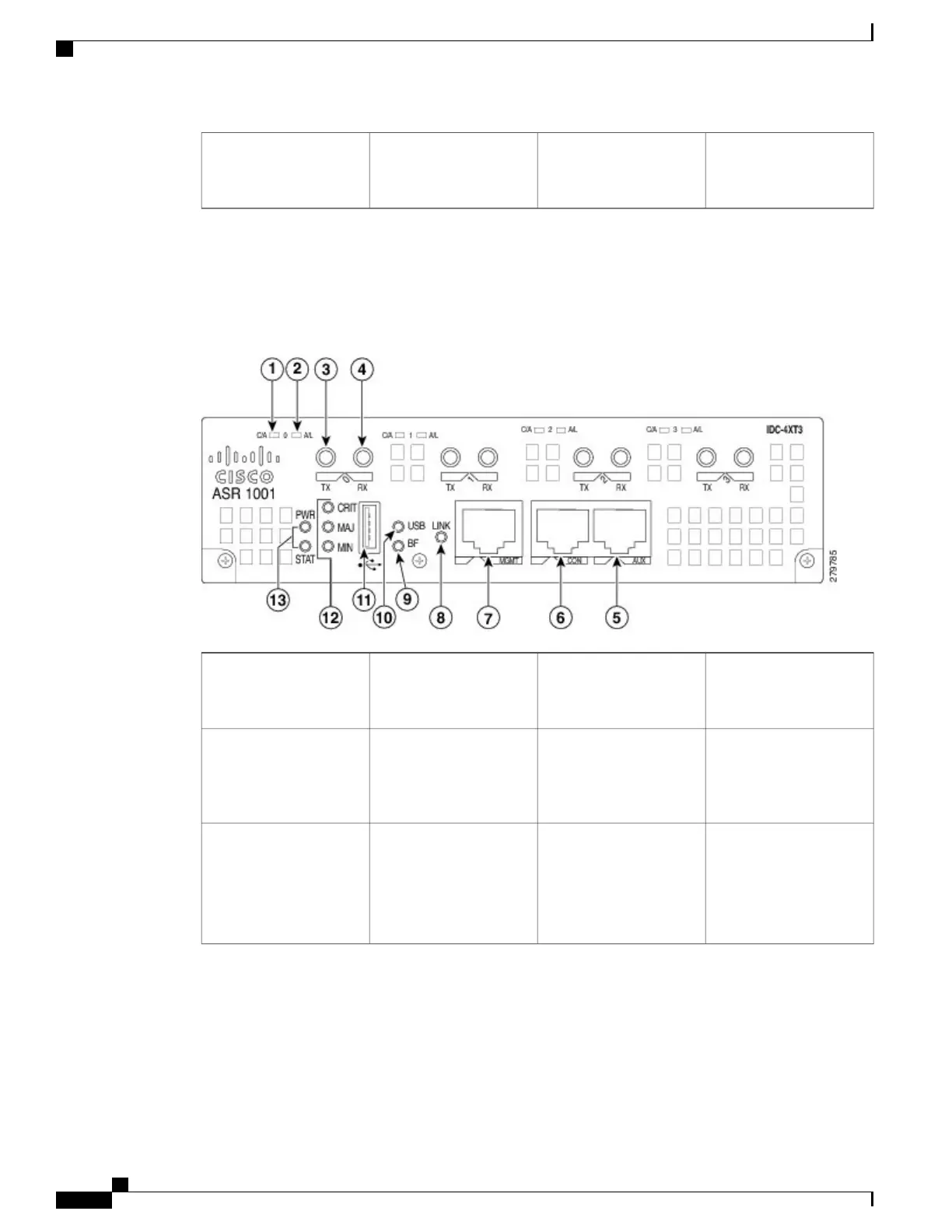

Figure 200: Cisco ASR 1001 Router with IDC-4XT3
LINK LED—Indicates
MGMT Ethernet port
activity
8
C/A—Carrier/Alarm LED
1
BF—Internal bootflash
LED that indicates
activity of the EUSB
device
9
A/L—Active/Loopback
LED
2
USB LED10
T3 TX Port—Transmit
port 0
This T3 port uses a
1.0/2.3 RF connector with
75-ohm impedance.
3
Cisco ASR 1000 Series Router Hardware Installation Guide
414
Cisco ASR 1001 Router Overview and Installation
Cisco ASR 1001 Router Architecture

Cisco ASR 1002-X Specifications

General

Form Factor	Rack-mountable
Rack Units	2RU
Integrated Services	Yes
Maximum Memory	16 GB
Built-in Gigabit Ethernet Ports	6
Input Voltage	100-240 VAC
Operating Temperature	32 to 104°F (0 to 40°C)
Redundancy	Power supply redundancy
Network Interface Modules	Up to 4 SPA/SIP slots
Embedded Services Processor (ESP)	ESP-20
Maximum Packet per Second (PPS)	15 Mpps
Height	3.5 inches
Fixed Ports	6 GE ports
Memory	4 GB (default), 16 GB (maximum)
Power Supply	Dual power supplies (AC or DC)
Dimensions (H x W x D)	3.5 x 17.5 x 19.0 in (8.9 x 44.5 x 48.3 cm)
