Cisco ASR 1002-X Hardware Installation Guide

IDC-CHT1/E1 can support eight ports of fully channelized T1 or E1 interfaces (see Figure 199: Cisco ASR
1001 Router with IDC-CHT1/E1, on page 413).

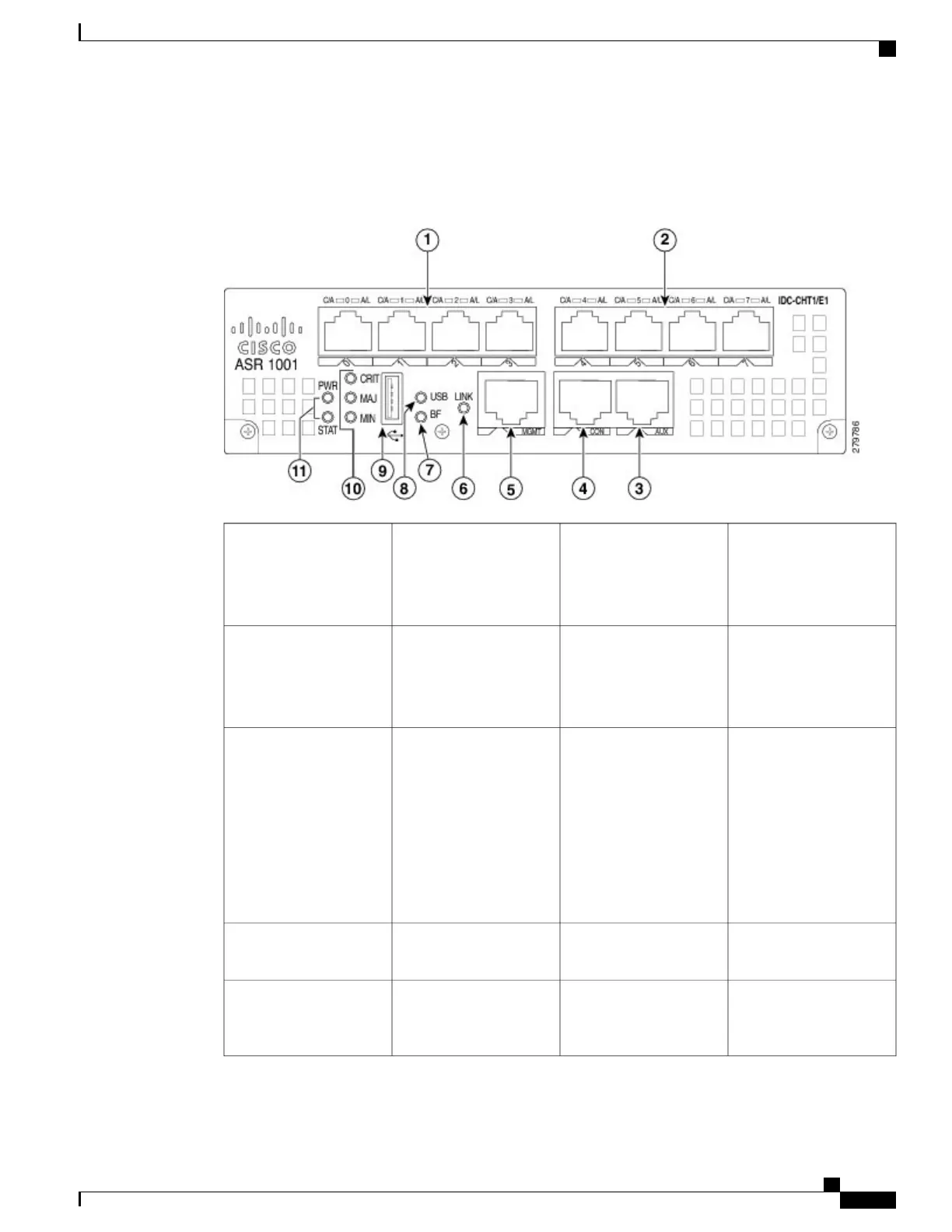

Figure 199: Cisco ASR 1001 Router with IDC-CHT1/E1
BF—Internal bootflash
LED that indicates
activity of the EUSB
device
7
T1/E1 Ports—Ports 0
through 3
These T1/E1 ports are
RJ-45 ports.
1
USB LED8
T1/E1 Ports—Ports 4
through 7
These T1/E1 ports are
RJ-45 ports.
2
USB port—USB
high-speed (480 Mbps)
port used for secure key
storage, VPN credentials
storage, or bulk flash
storage of image and
configuration backup
This USB port is an A
port.
9
AUX—RS-232 auxiliary
port
3
STAT—Status LED
10
CON—RS-232 console
port
4
PWR—Power LED
11
MGMT—RJ-45
10/100/1000 management
Ethernet port
5
Cisco ASR 1000 Series Router Hardware Installation Guide
413
Cisco ASR 1001 Router Overview and Installation
Cisco ASR 1001 Router Architecture

Cisco ASR 1002-X Specifications

General

Form Factor	Rack-mountable
Rack Units	2RU
Integrated Services	Yes
Maximum Memory	16 GB
Built-in Gigabit Ethernet Ports	6
Input Voltage	100-240 VAC
Operating Temperature	32 to 104°F (0 to 40°C)
Redundancy	Power supply redundancy
Network Interface Modules	Up to 4 SPA/SIP slots
Embedded Services Processor (ESP)	ESP-20
Maximum Packet per Second (PPS)	15 Mpps
Height	3.5 inches
Fixed Ports	6 GE ports
Memory	4 GB (default), 16 GB (maximum)
Power Supply	Dual power supplies (AC or DC)
Dimensions (H x W x D)	3.5 x 17.5 x 19.0 in (8.9 x 44.5 x 48.3 cm)
